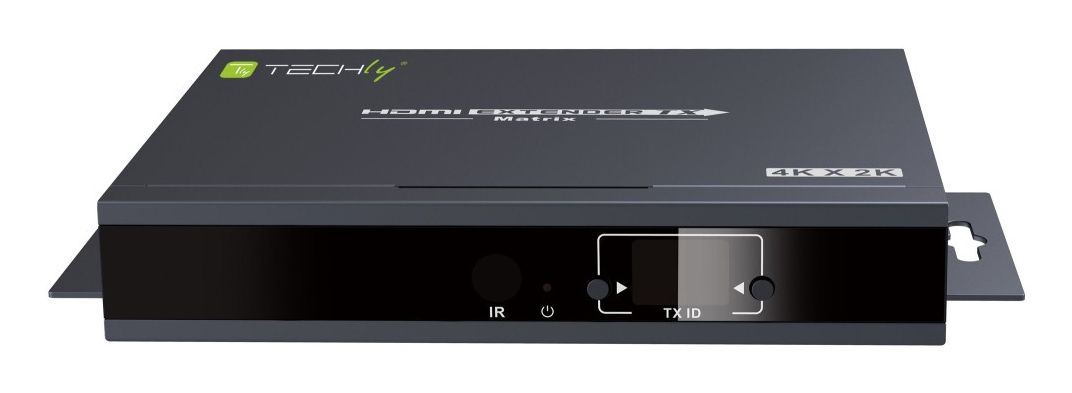

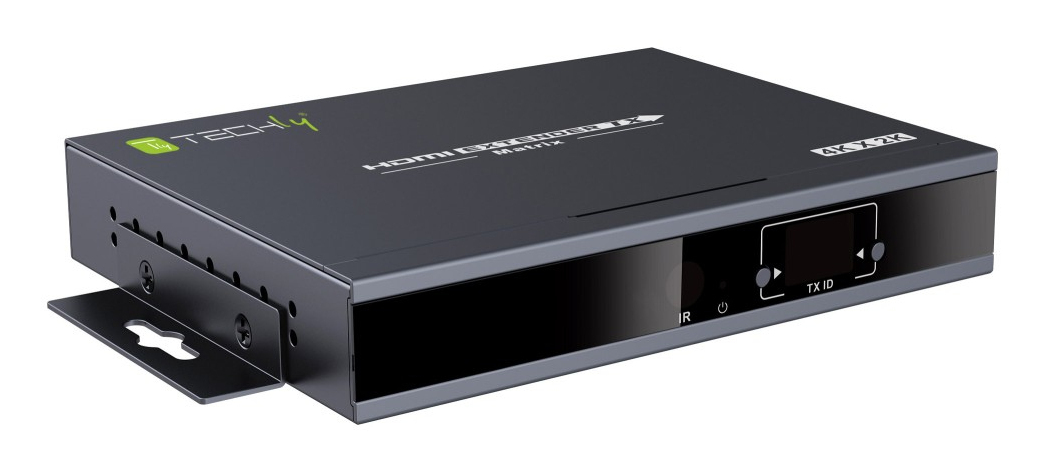

Matrix AV receiver Black
Model MatrixPart no. IDATA-HDMI-MX683T4EAN 8059018362046
31 specifications
- ConnectivityWired
- TypeAV receiver
- Weight320 g
- ColourBlack
- Input current2 A
- Operating relative humidity (H-H)0 - 95%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 320 g
- Colour
- Black
- Input current
- 2 A
- Operating relative humidity (H-H)
- 0 - 95%
- Brand
- Techly
- Category
- AV Extender
- Model
- Matrix
- Part numbers
- IDATA-HDMI-MX683T4, IDATA-HDMI-MX683R4
- EAN / UPC
- 8059018362046, 8059018362053
- Also known as
- Techly Matrix AV receiver Black
Specifications
31 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 30 Hz |
| Bandwidth | 0.028 Gbit/s |
| Control type | Buttons |
| HDCP | Yes |
| Plug and Play | Yes |
| Supported graphics resolutions | 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Product colour | Black |

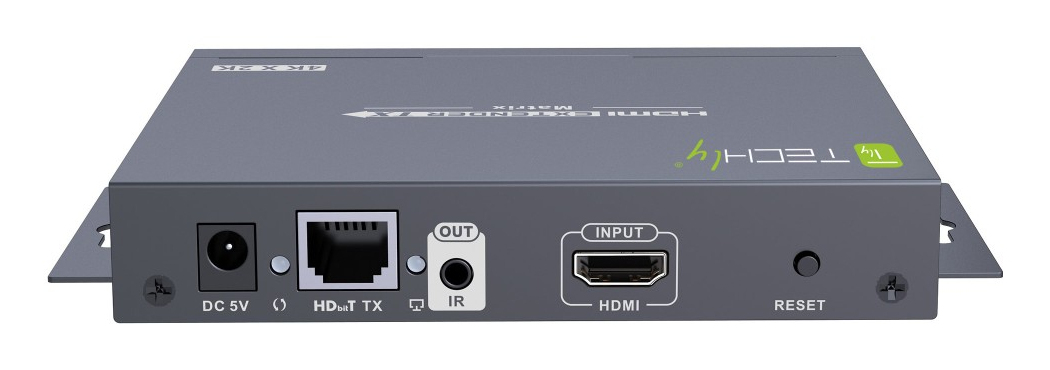

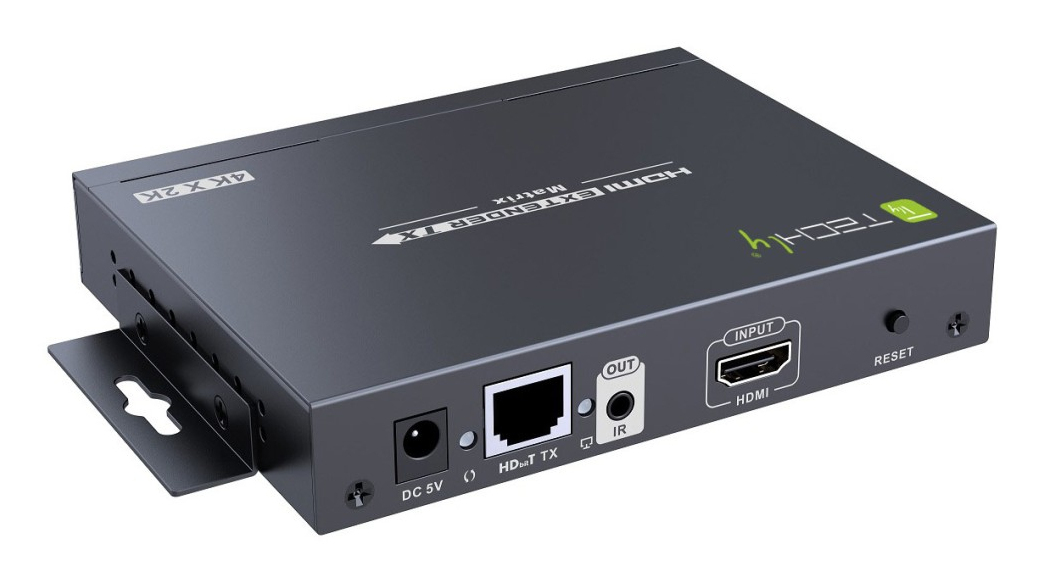

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Operating voltage (receiver) | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164 mm |
| Depth | 107.6 mm |
| Height | 23.6 mm |
| Weight | 320 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, WEEE |
