IDATA HDMI-WL699
Model IDATA HDMI-WL699EAN 8059018368222
49 specifications
- ConnectivityWireless
- TypeAV transmitter & receiver
- ColourBlack
- Power source typeUSB
- Operating relative humidity (H-H)0 - 90%
- Receiver dimensions (WxDxH)125 x 115 x 20.6 mm
Overview
- Connectivity
- Wireless
- Type
- AV transmitter & receiver
- Colour
- Black
- Power source type
- USB
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 125 x 115 x 20.6 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA HDMI-WL699
- Part number
- IDATA HDMI-WL699
- EAN / UPC
- 8059018368222
- Also known as
- Techly IDATA HDMI-WL699 AV extender AV transmitter & receiver Black
Specifications
49 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 50 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| LED indicators | Yes |
| Security algorithms | SSID |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080p, 1440p, 2160p |
| Transition Minimized Differential Signaling (TMDS) input | 1.2 V |
| Integrated antenna | Yes |
| Product colour | Black |
| Frequency range | 5.18 - 5.24 GHz |
| Certification | EC, RoHS |

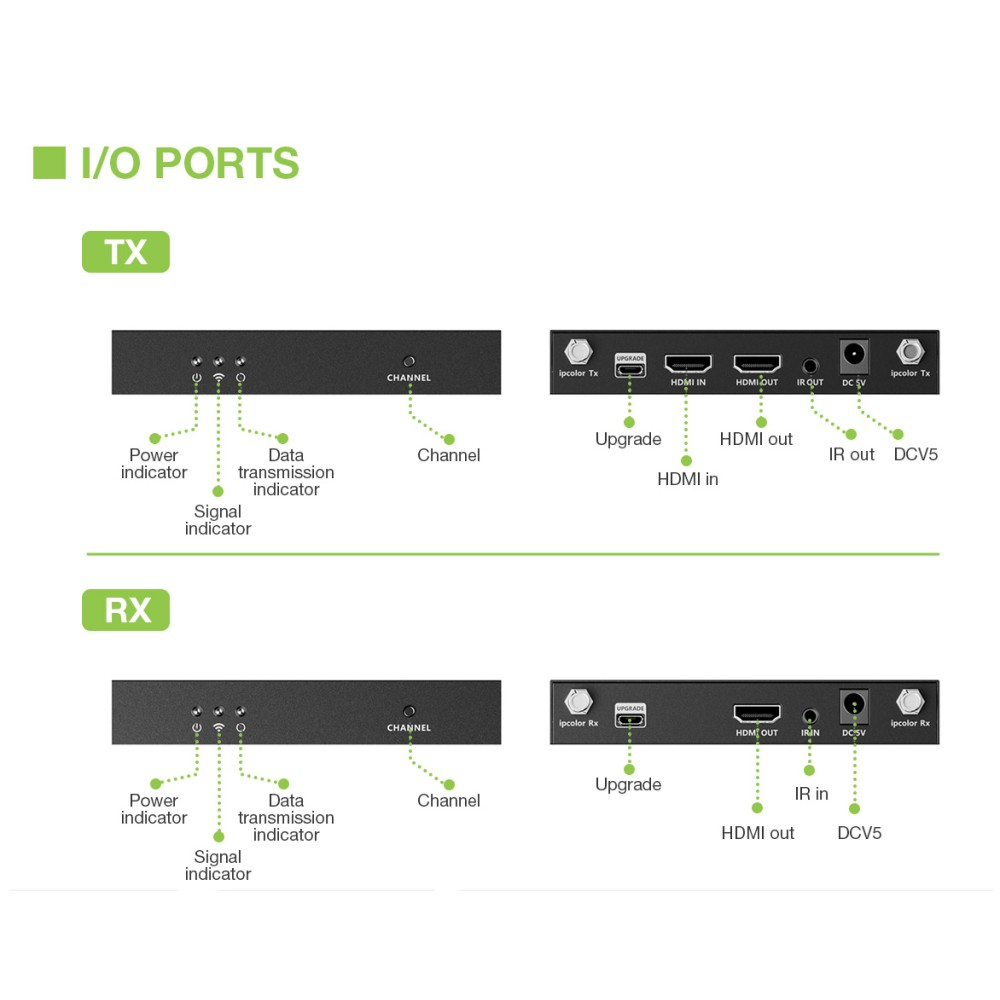

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Wi-Fi | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | Micro-USB |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Output current | 2 A |
| Power consumption (TX) | 6 W |
| Power consumption (RX) | 4 W |
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 125 x 115 x 20.6 mm |
| Transmitter dimensions (WxDxH) | 125 x 115 x 20.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Mounting kit | Yes |
