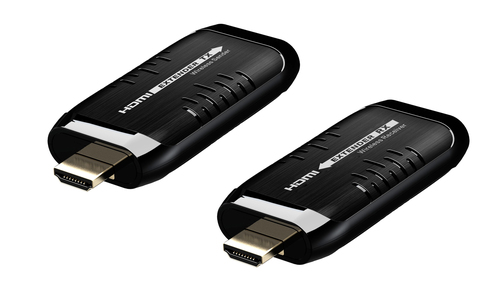

IDATA-HDMI-WL38MINI AV extender AV transmitter & receiver Black
Model IDATA-HDMI-WL38MINIEAN 8051128104493
30 specifications
- ConnectivityWireless
- TypeAV transmitter & receiver
- ColourBlack
- Power consumption (transmitter) (max)2.5 W
- Operating relative humidity (H-H)0 - 90%
- Receiver dimensions (WxDxH)88.9 x 38.99 x 15.17 mm
Overview
- Connectivity
- Wireless
- Type
- AV transmitter & receiver
- Colour
- Black
- Power consumption (transmitter) (max)
- 2.5 W
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 88.9 x 38.99 x 15.17 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA-HDMI-WL38MINI
- Part number
- IDATA-HDMI-WL38MINI
- EAN / UPC
- 8051128104493
- Also known as
- Techly IDATA-HDMI-WL38MINI AV extender AV transmitter & receiver Black
Specifications
30 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 10.2 Gbit/s |
| Display Data Channel (DDC) input | 5 V |
| HDCP | Yes |
| HDCP version | 1.2 |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Supported video modes | 480p, 576p, 720p, 1080p |
| Transition Minimized Differential Signaling (TMDS) input | 1.2 V |
| Product colour | Black |
| Frequency range | 5 - 5 GHz |
| Certification | CE |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| HDMI version | 1.3 |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 2.5 W |
| Power consumption (receiver) (max) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 88.9 x 38.99 x 15.17 mm |
| Receiver weight | 30 g |
| Transmitter dimensions (WxDxH) | 88.9 x 38.99 x 15.17 mm |
| Transmitter weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, Micro-USB |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
