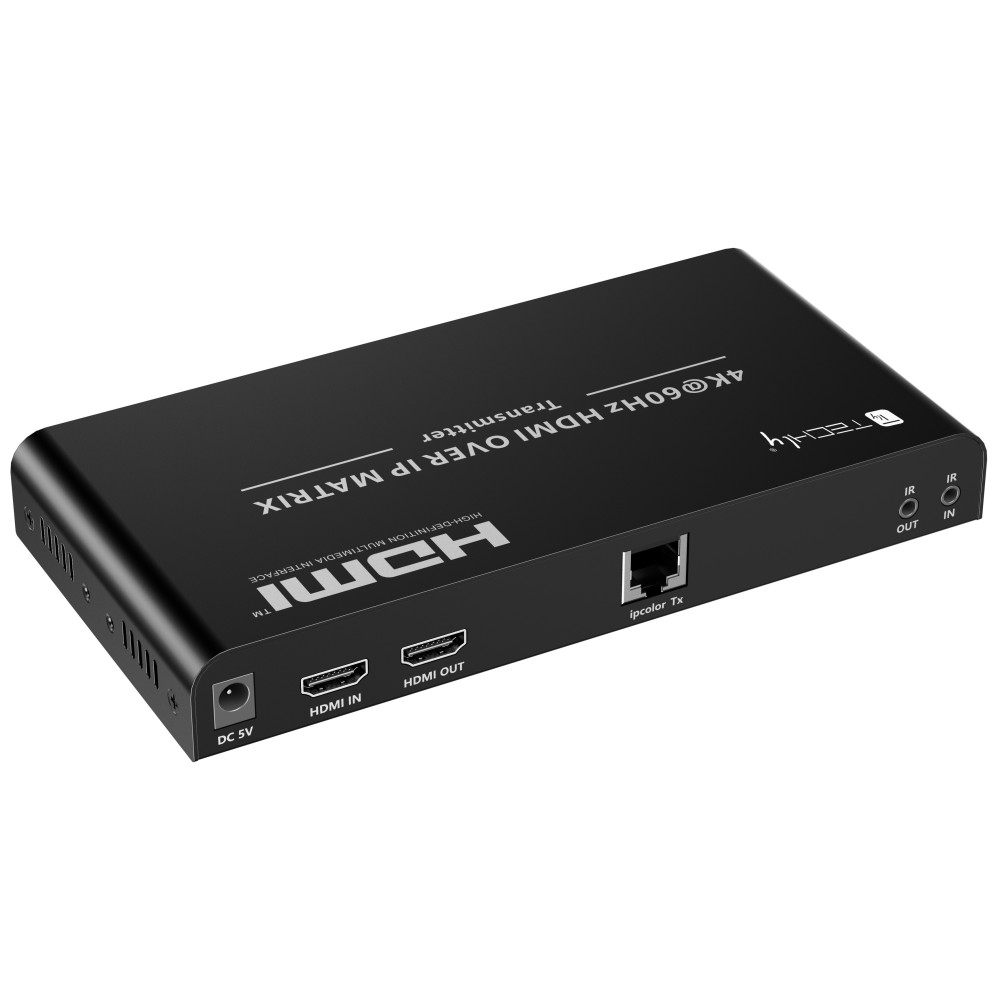

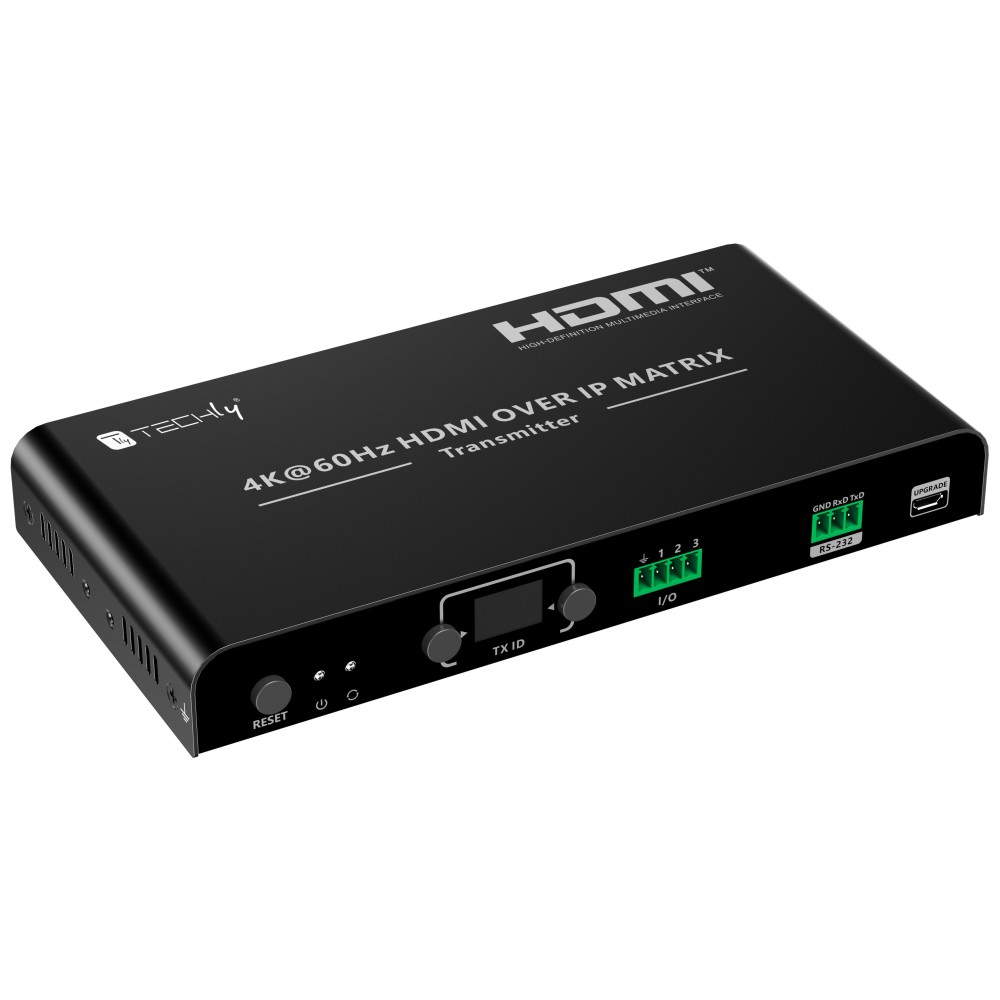

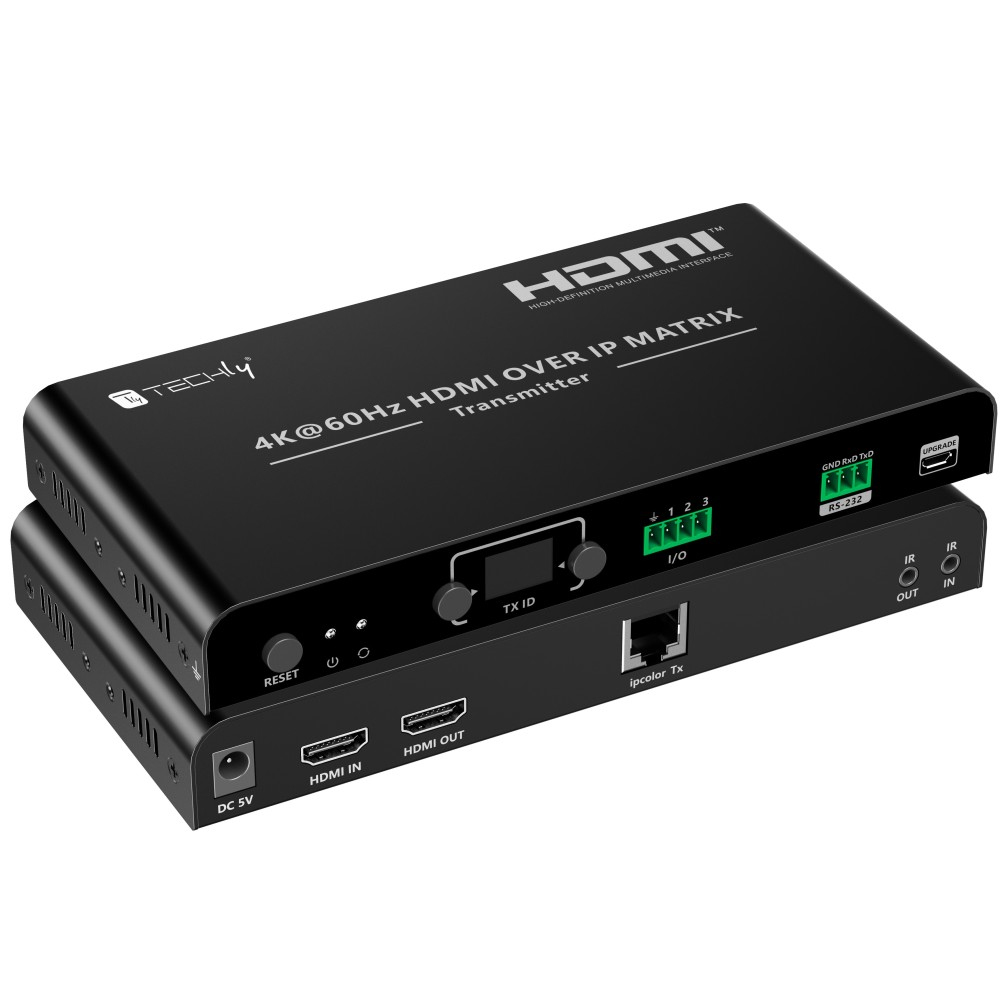

IDATA HDMI-MX02T
Model IDATA HDMI-MX02TEAN 8058956620379
51 specifications
- ConnectivityWired
- TypeAV transmitter
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)0 - 90%
- Receiver dimensions (WxDxH)191 x 96 x 25 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 191 x 96 x 25 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA HDMI-MX02T
- Part number
- IDATA HDMI-MX02T
- EAN / UPC
- 8058956620379
- Also known as
- Techly IDATA HDMI-MX02T AV extender AV transmitter Black
Specifications
51 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| Bidirectional | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| 3D | No |
| Audio formats supported | LPCM, PCM |
| Bandwidth | 18 Gbit/s |
| Baud rate | 115200 Kbit/s |
| Control type | Buttons |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| LED indicators | Yes |
| Material | Metal |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160 |
| Product colour | Black |
| Certification | EC, RoHS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDMI in | 2 |
| HDMI version | 2.0 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | Micro-USB A |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage (transmitter) | 5 V |
| Power consumption (transmitter) (max) | 5.5 W |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 191 x 96 x 25 mm |
| Receiver weight | 959 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Mounting kit | Yes |
