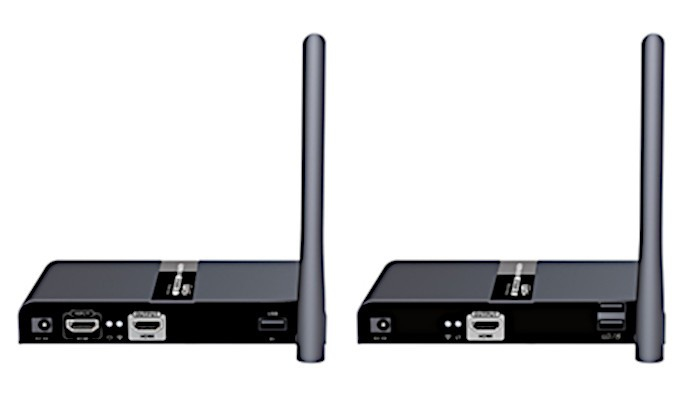

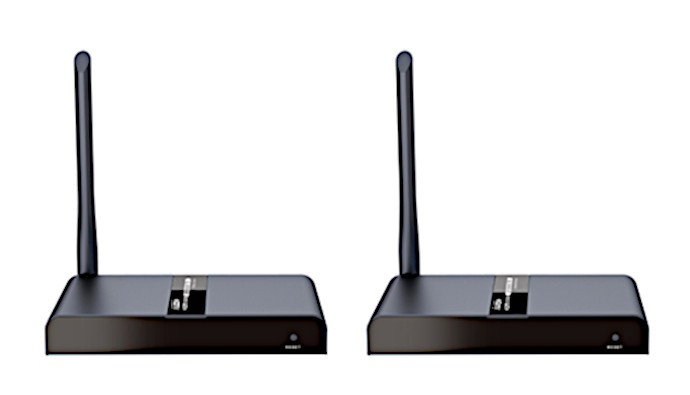

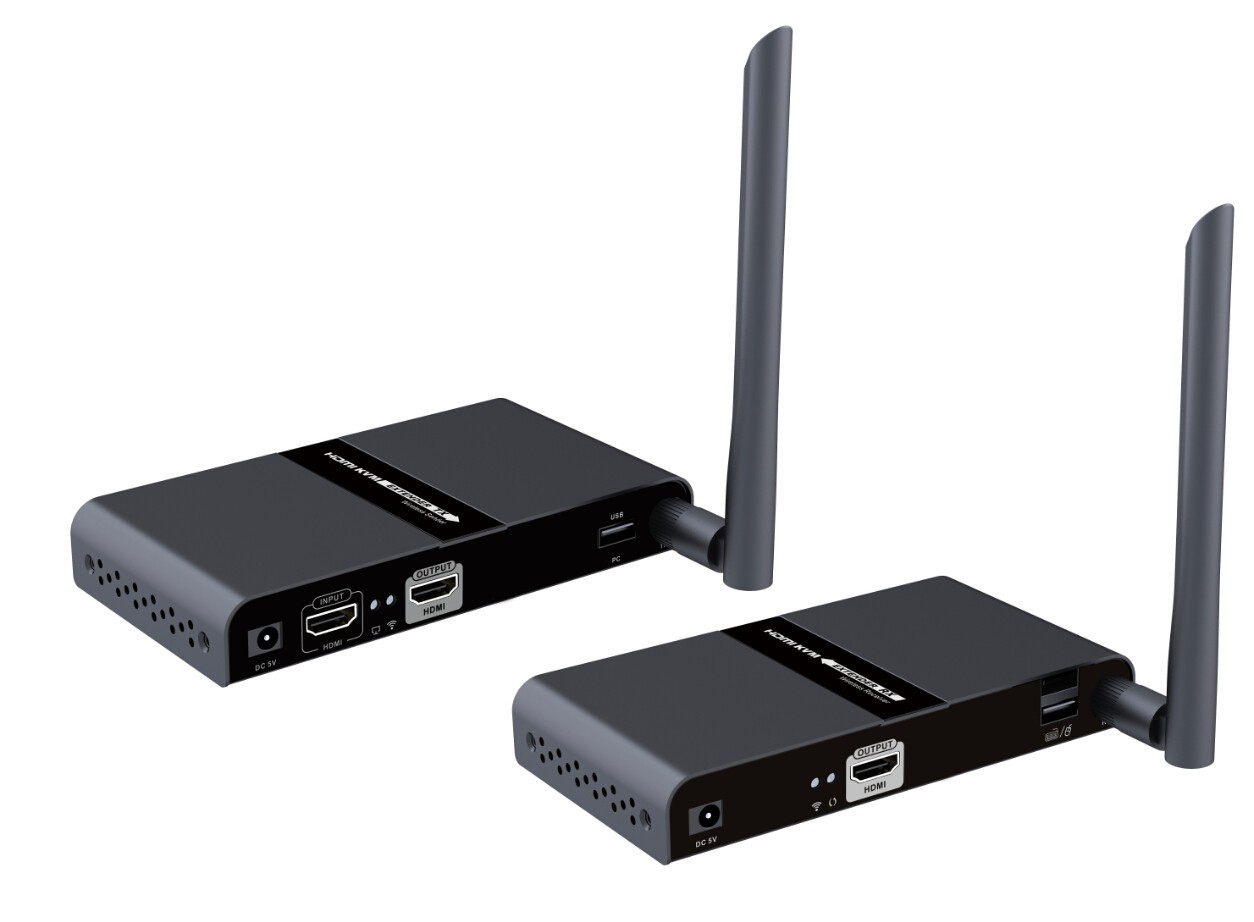

IDATA HDMI-KVM50W
Model IDATA HDMI-KVM50WEAN 8051128107036
23 specifications
- ConnectivityWireless
- TypeAV transmitter & receiver
- Weight1.23 kg
- ColourBlack
- Power consumption (TX)7 W
- Operating relative humidity (H-H)0 - 90%
Overview
- Connectivity
- Wireless
- Type
- AV transmitter & receiver
- Weight
- 1.23 kg
- Colour
- Black
- Power consumption (TX)
- 7 W
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA HDMI-KVM50W
- Part number
- IDATA HDMI-KVM50W
- EAN / UPC
- 8051128107036
- Also known as
- Techly HDMI KVM Wireless Extender 50m
Specifications
23 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 50 m |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.2 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 3 |
| USB version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (TX) | 7 W |
| Power consumption (RX) | 5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.9 mm |
| Depth | 149.7 mm |
| Height | 23.2 mm |
| Weight | 1.23 kg |
