IDATA EXTIP-483
Model IDATA EXTIP-483EAN 8058956621161
40 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Power source typeDC
- Operating temperature (T-T)0 - 60 °C
- Receiver dimensions (WxDxH)96.8 x 94 x 23.7 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 60 °C
- Receiver dimensions (WxDxH)
- 96.8 x 94 x 23.7 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXTIP-483
- Part number
- IDATA EXTIP-483
- EAN / UPC
- 8058956621161
- Also known as
- Techly IDATA EXTIP-483 AV extender AV transmitter & receiver Black
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |

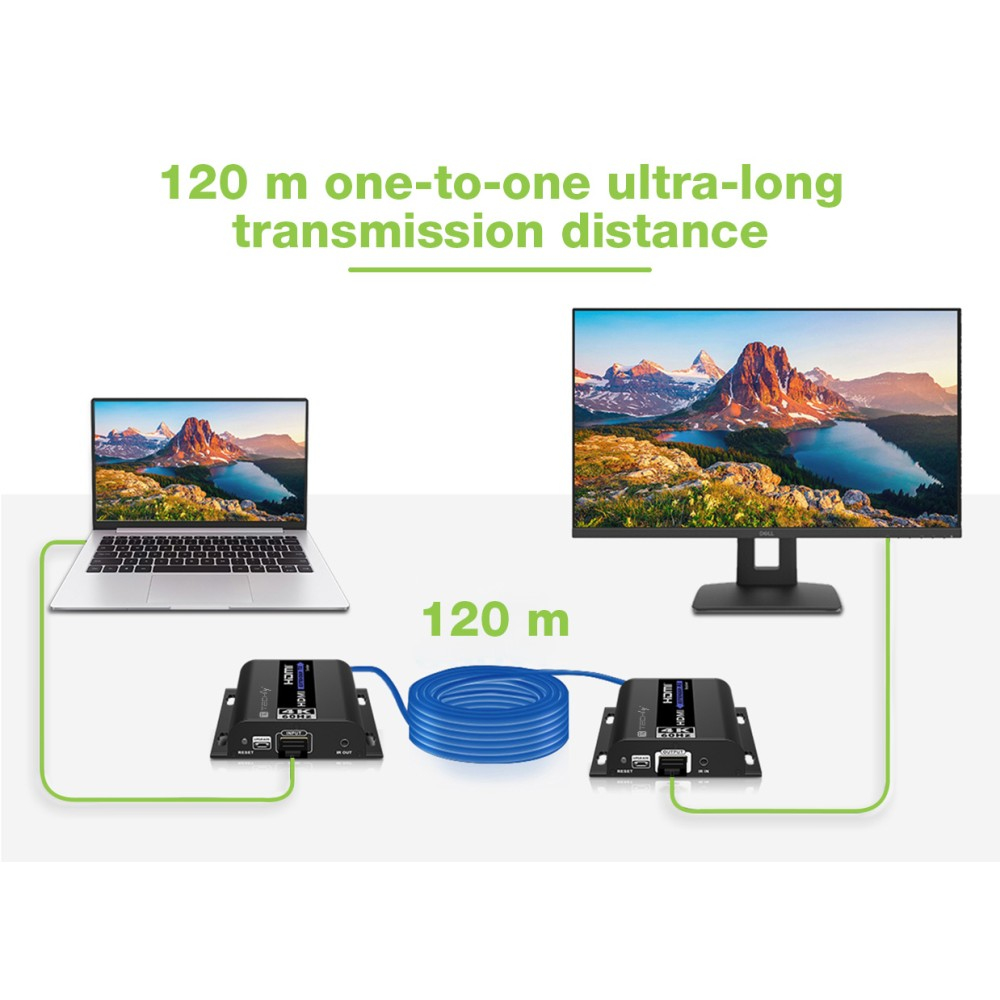

| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Wall mountable | Yes |
| Product colour | Black |
| Certification | EC FCC RoHS WEEE |

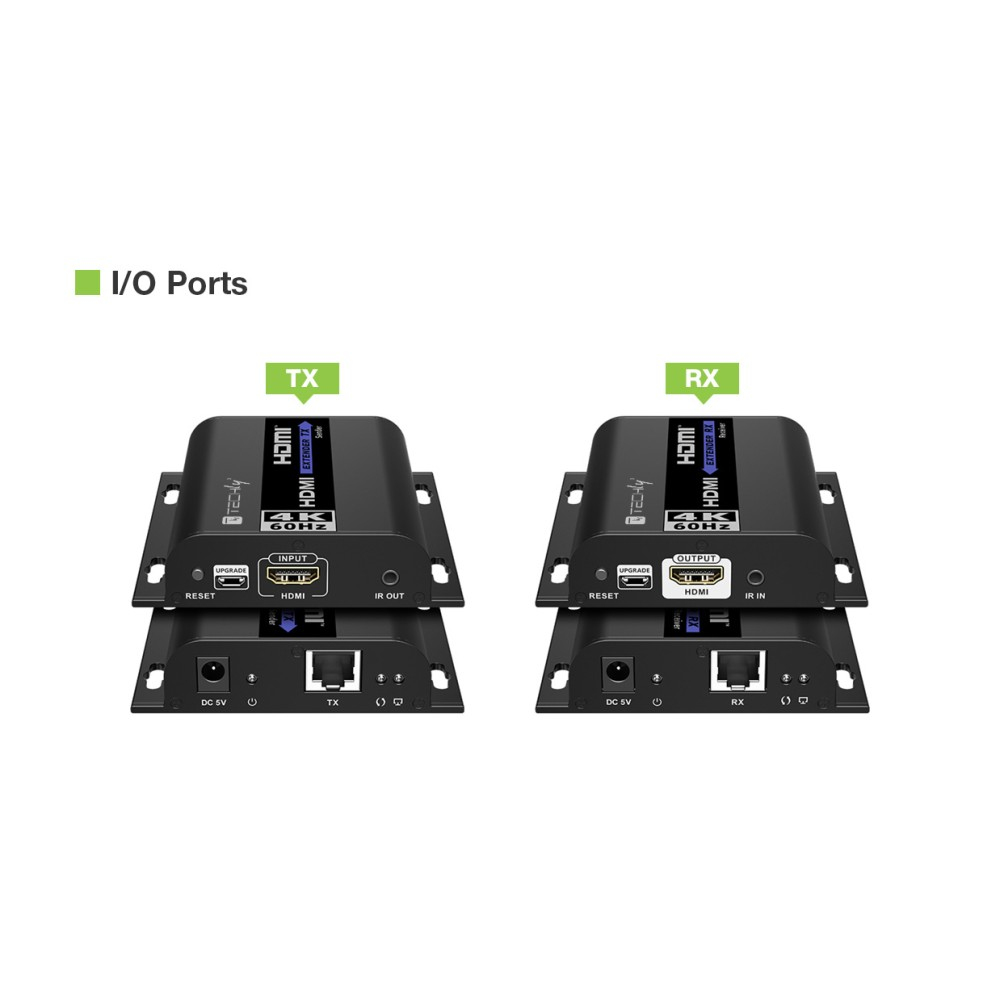

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |

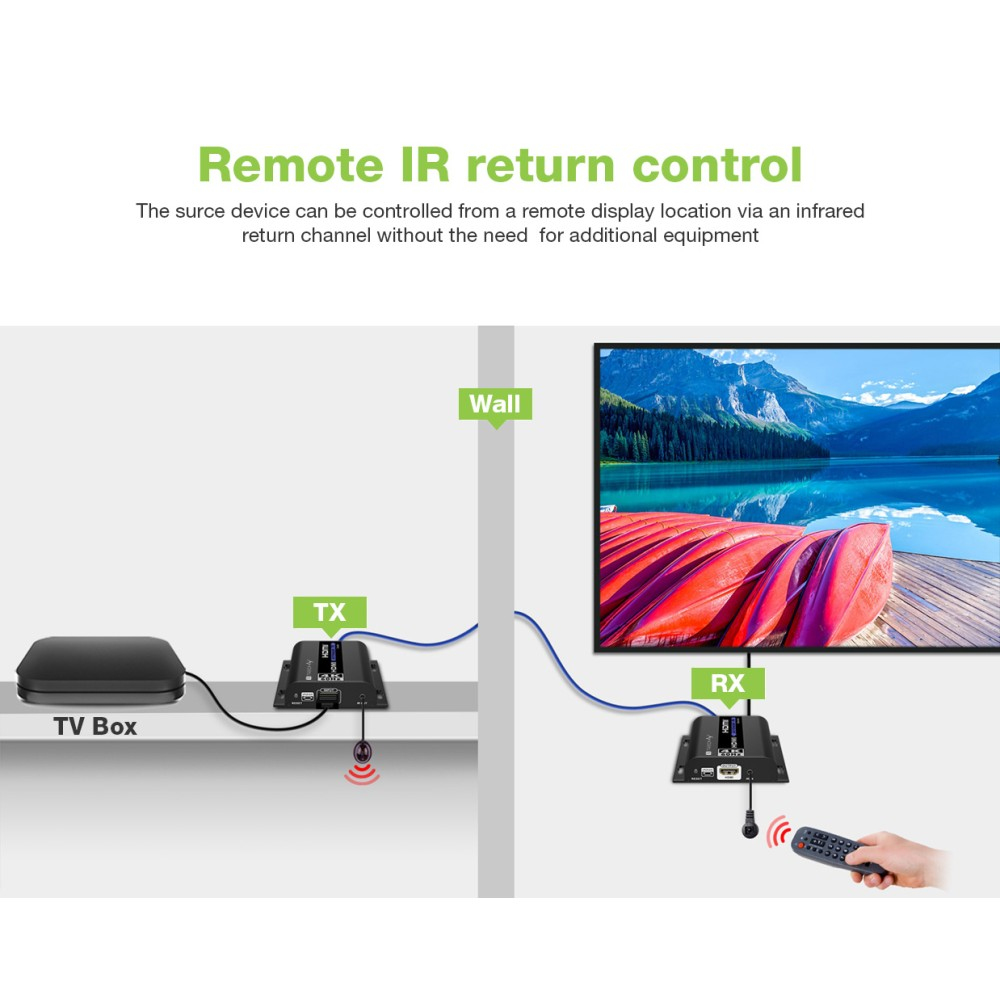

| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 1 A |
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 3.5 W |
| Power consumption (RX) | 2.5 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 96.8 x 94 x 23.7 mm |
| Transmitter dimensions (WxDxH) | 96.8 x 94 x 23.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
