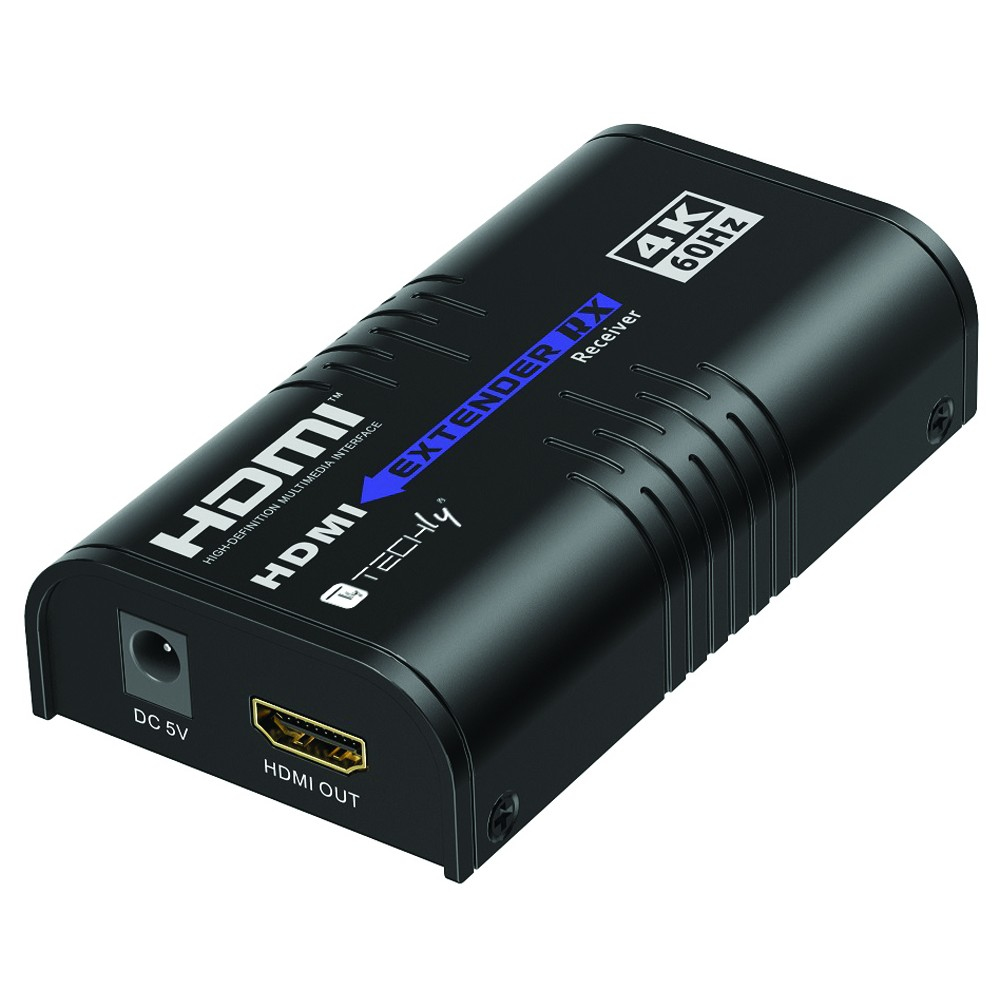

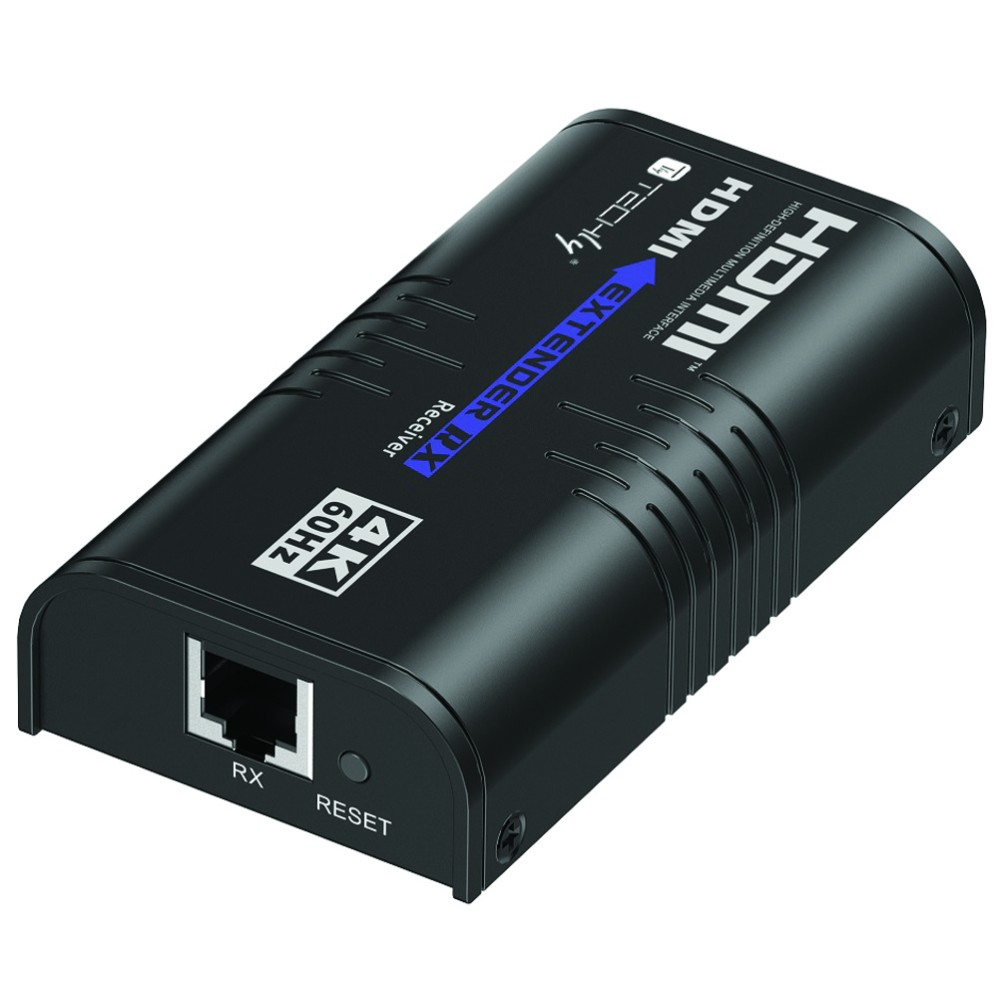

IDATA EXTIP-473R
Model IDATA EXTIP-473REAN 8058956621154
31 specifications
- ConnectivityWired
- TypeAV receiver
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)0 - 90%
- Receiver dimensions (WxDxH)58 x 110 x 26 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 58 x 110 x 26 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXTIP-473R
- Part number
- IDATA EXTIP-473R
- EAN / UPC
- 8058956621154
- Also known as
- Techly IDATA EXTIP-473R AV extender AV receiver Black
Specifications
31 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480p, 576p, 720p, 1080p, 2160p |
| Product colour | Black |
| Certification | CE FCC RoHS WEEE |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 1 A |
| Operating voltage (receiver) | 5 V |
| Power consumption (typical) | 5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 58 x 110 x 26 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
