IDATA EXTIP-383IR4
Model IDATA EXTIP-383IR4EAN 8059018362022
38 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight739 g
- ColourBlack
- Power source typeDC
- Operating temperature (T-T)0 - 60 °C
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 739 g
- Colour
- Black
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXTIP-383IR4
- Part number
- IDATA EXTIP-383IR4
- EAN / UPC
- 8059018362022
- Also known as
- Techly IDATA EXTIP-383IR4 AV extender AV transmitter & receiver Black
Specifications
38 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| 3D | No |
| HDCP | Yes |
| LED indicators | Power |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
| Certification | CE, FCC |

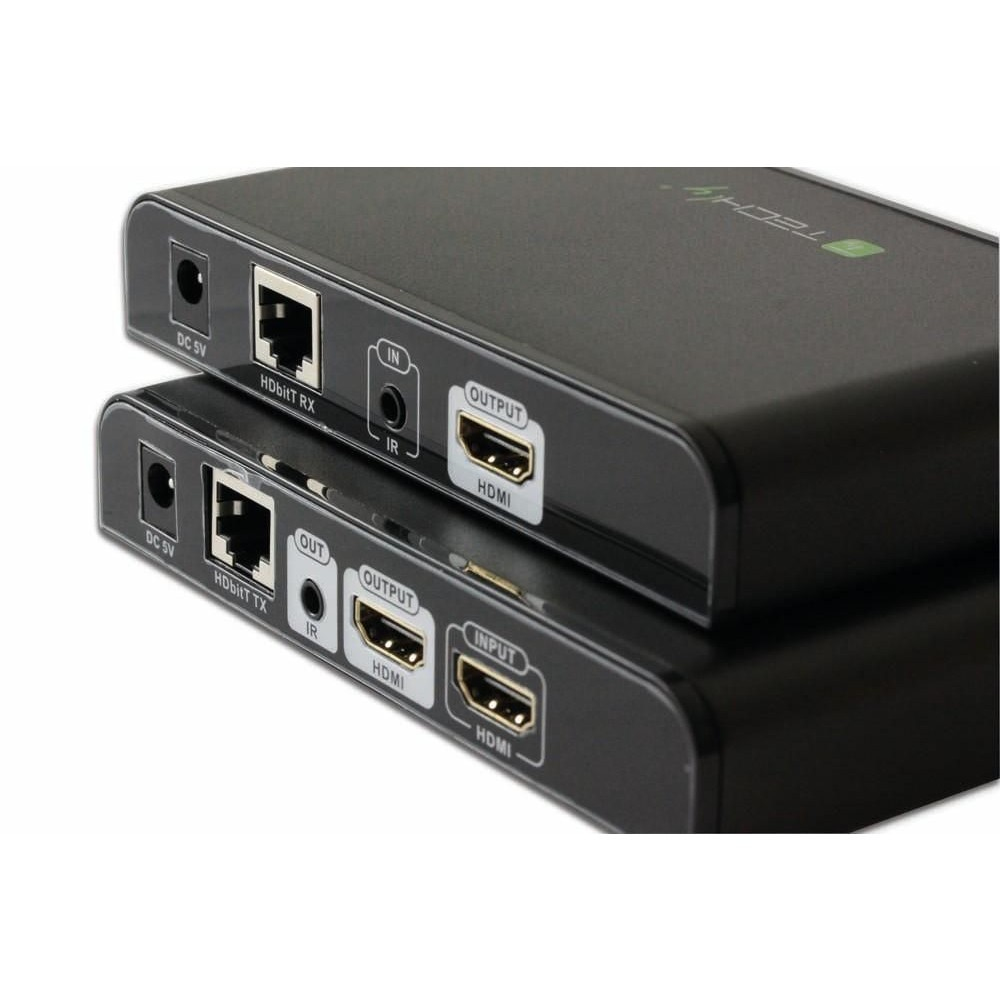

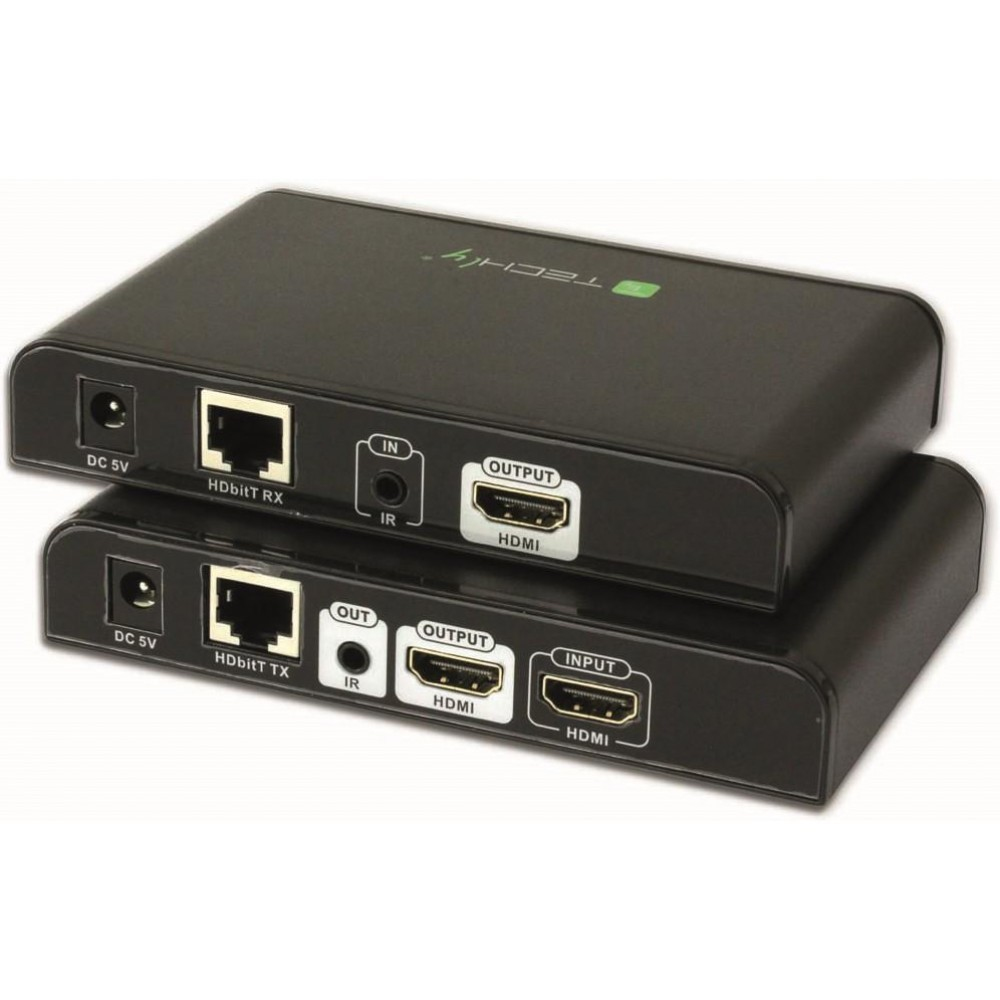

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 5 V |
| Power consumption (receiver) (max) | 3 W |
| Power consumption (TX) | 3.5 W |
| Power consumption (RX) | 3 W |
| Current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 84 mm |
| Height | 23.2 mm |
| Weight | 739 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Supplier features
| Specification | Value |
|---|---|
| Vendor code | 362022 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, WEEE |
| Audio support | Yes |
| Sustainability compliance | Yes |
