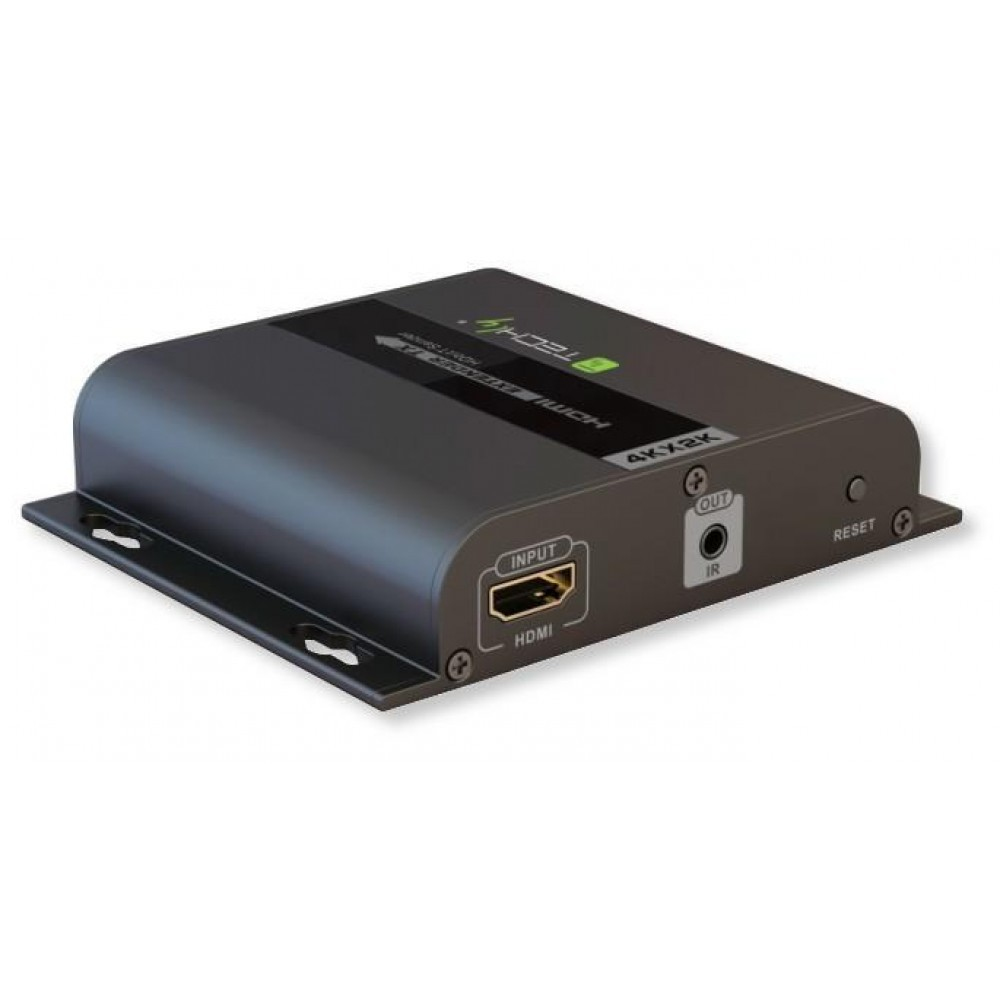

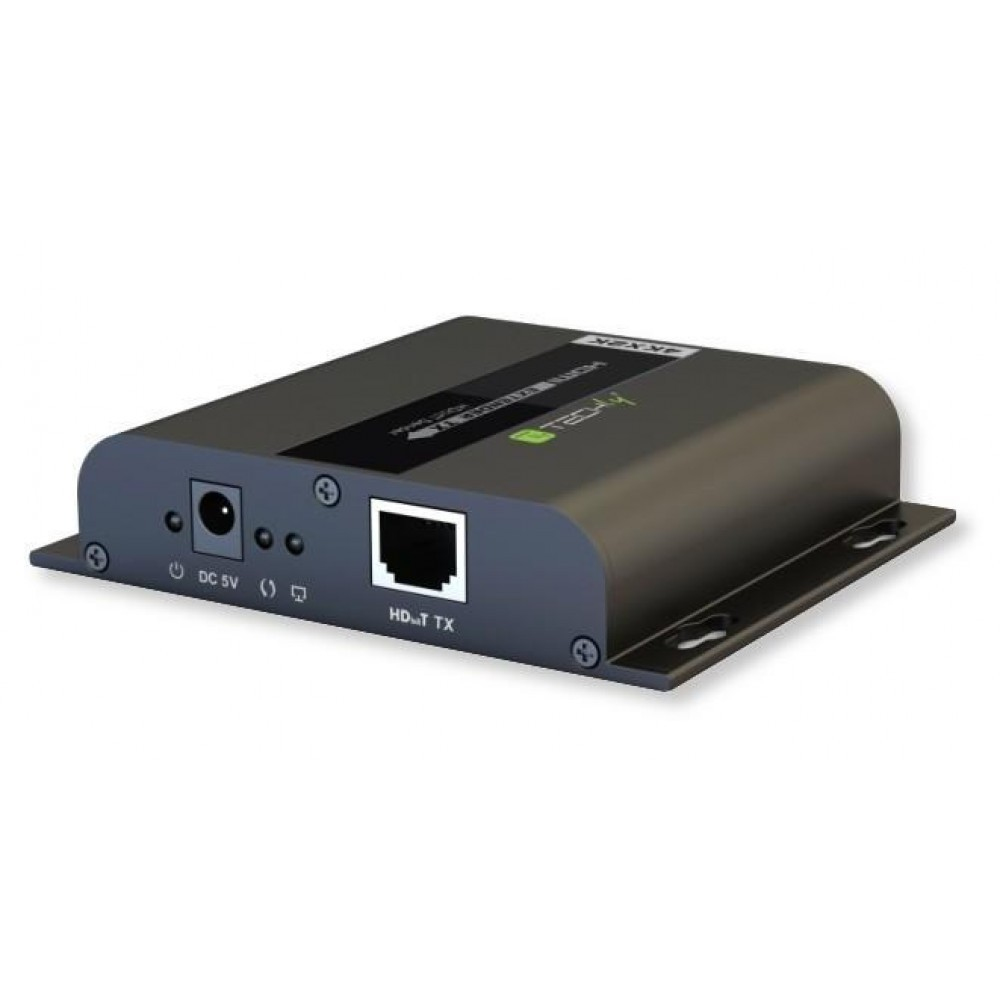

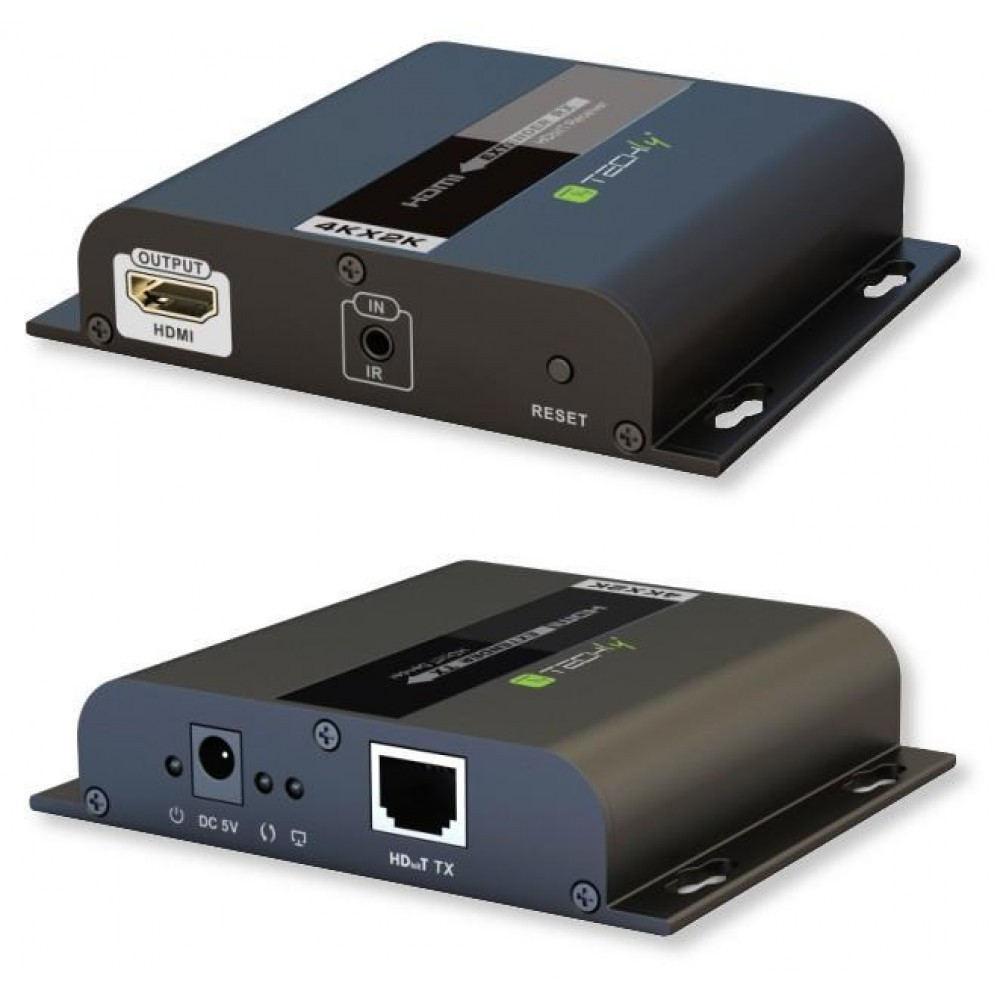

IDATA EXTIP-3834KV4
Model IDATA EXTIP-3834KV4EAN 8059018362619
39 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage5 V
- Receiver dimensions (WxDxH)107.3 x 94 x 23.7 mm
- Vendor code362619
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage
- 5 V
- Receiver dimensions (WxDxH)
- 107.3 x 94 x 23.7 mm
- Vendor code
- 362619
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXTIP-3834KV4
- Part number
- IDATA EXTIP-3834KV4
- EAN / UPC
- 8059018362619
- Also known as
- Techly HDMI Extender with IR 4K UHD Cat.6 cable up to 120m
Specifications
39 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| 3D | No |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Network |
| Supported video modes | 1080i, 1080p, 720i, 720p, 480p, 2160p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (transmitter) (max) | 5 W |
| Power consumption (receiver) (max) | 4 W |
| Power consumption (TX) | 6 W |
| Power consumption (RX) | 4 W |
| Current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 107.3 x 94 x 23.7 mm |
| Receiver weight | 167 g |
| Transmitter dimensions (WxDxH) | 107.3 x 94 x 23.7 mm |
| Transmitter weight | 170 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| IR extender included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
Supplier features
| Specification | Value |
|---|---|
| Vendor code | 362619 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, WEEE |
| Audio support | Yes |
