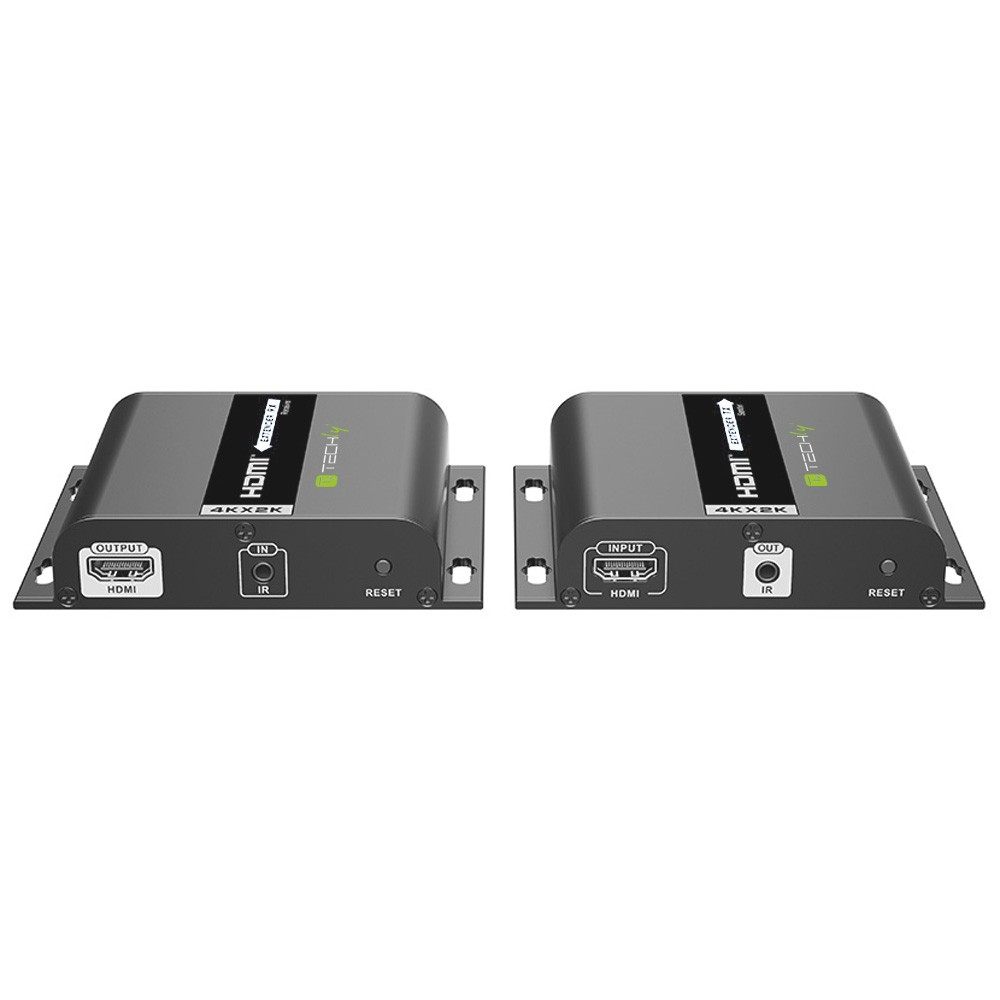

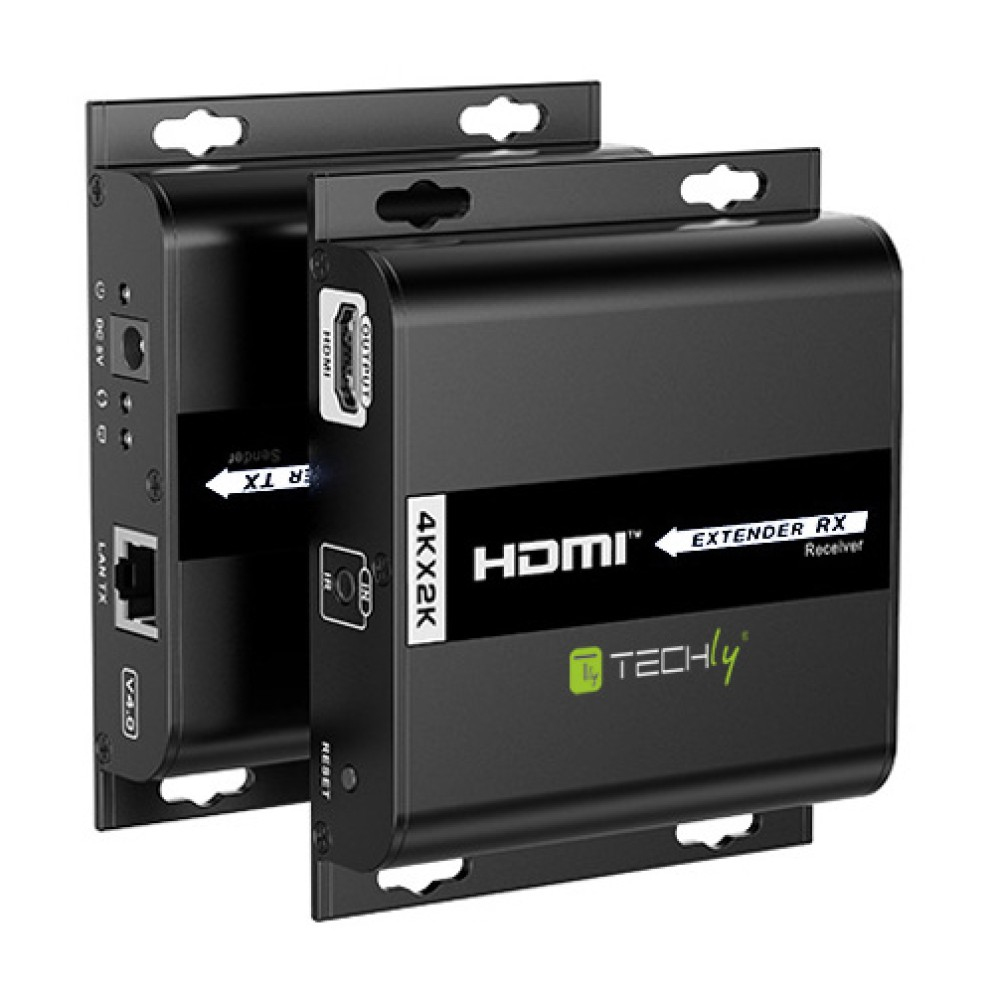

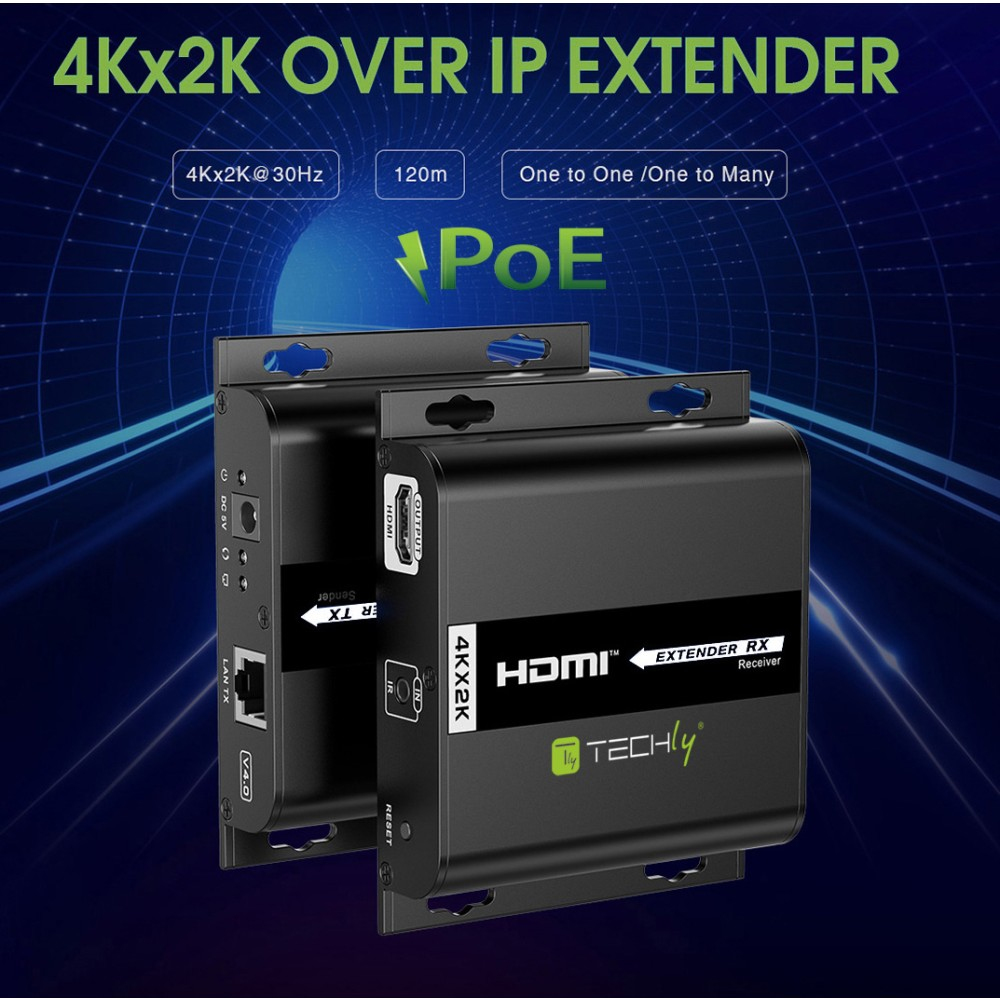

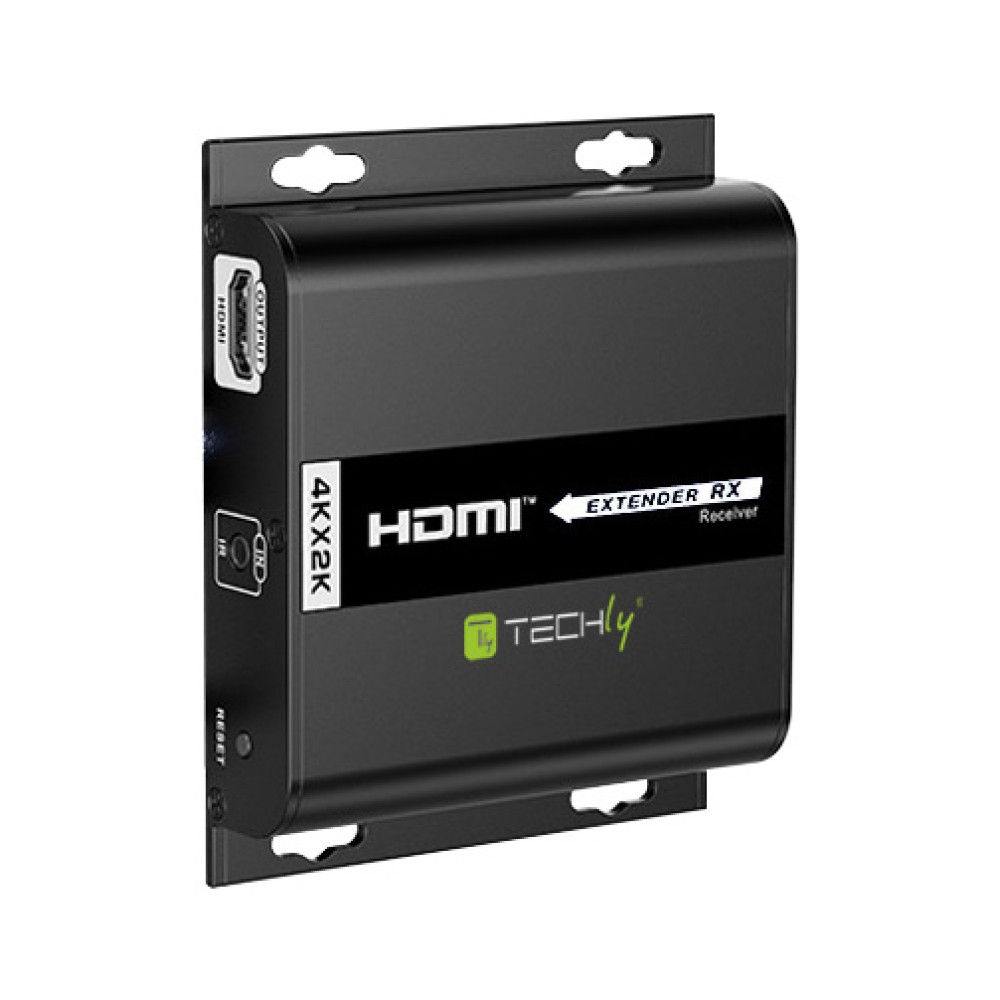

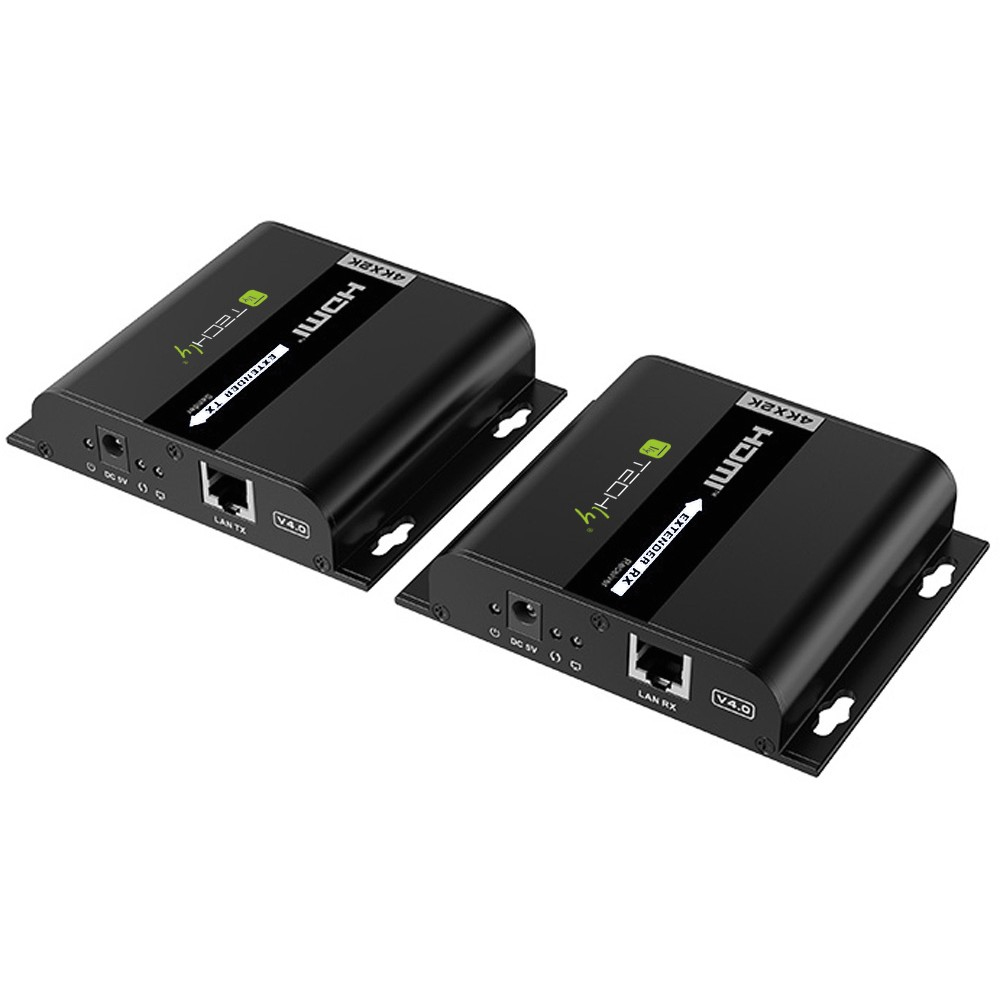

IDATA EXTIP-3834KP6R
Model IDATA EXTIP-3834KP6REAN 8059018366433
34 specifications
- ConnectivityWired
- TypeAV receiver
- ColourBlack
- Power source typeDC
- Operating temperature (T-T)0 - 60 °C
- Receiver dimensions (WxDxH)119 x 94 x 23 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Colour
- Black
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 60 °C
- Receiver dimensions (WxDxH)
- 119 x 94 x 23 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXTIP-3834KP6R
- Part number
- IDATA EXTIP-3834KP6R
- EAN / UPC
- 8059018366433
- Also known as
- Techly IDATA EXTIP-3834KP6R AV extender AV receiver Black
Specifications
34 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP | Yes |
| Networking standards | IEEE 802.3af |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Wall mountable | Yes |
| Product colour | Black |
| Certification | EC FCC RoHS WEEE |

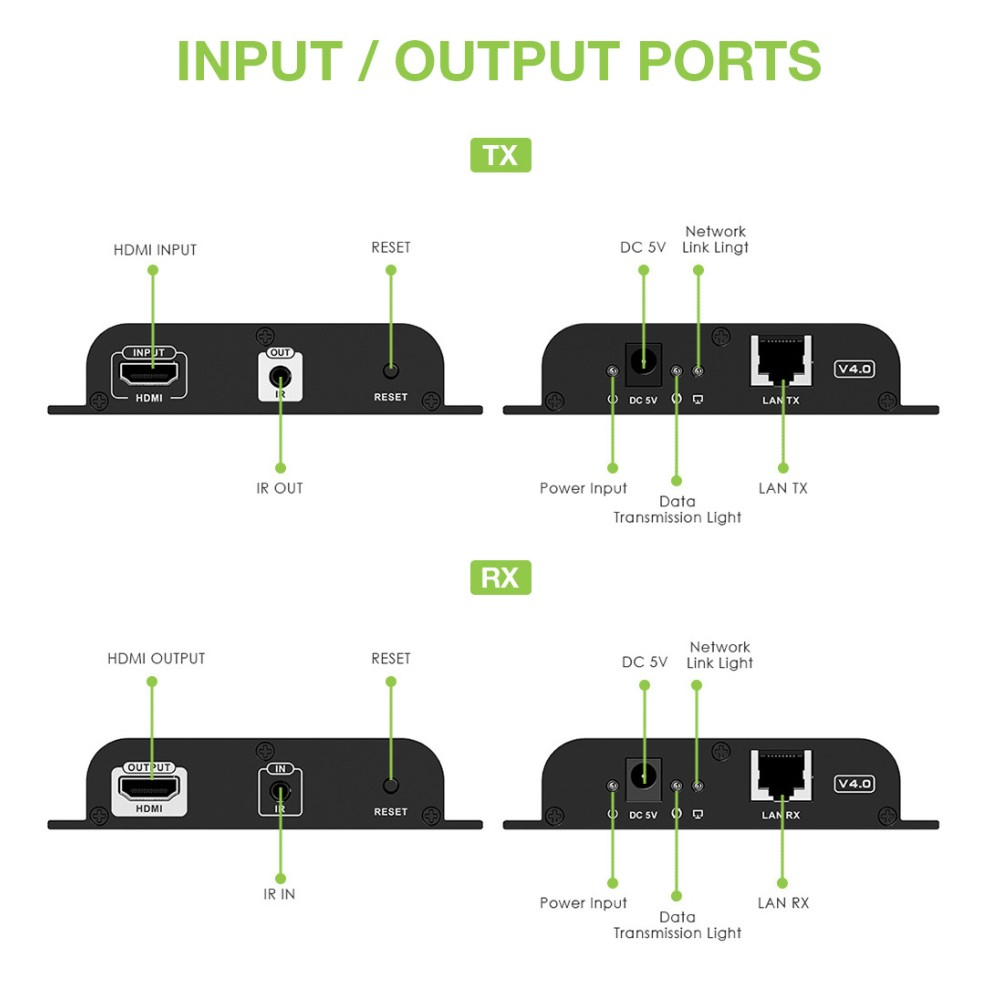

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) in | Yes |

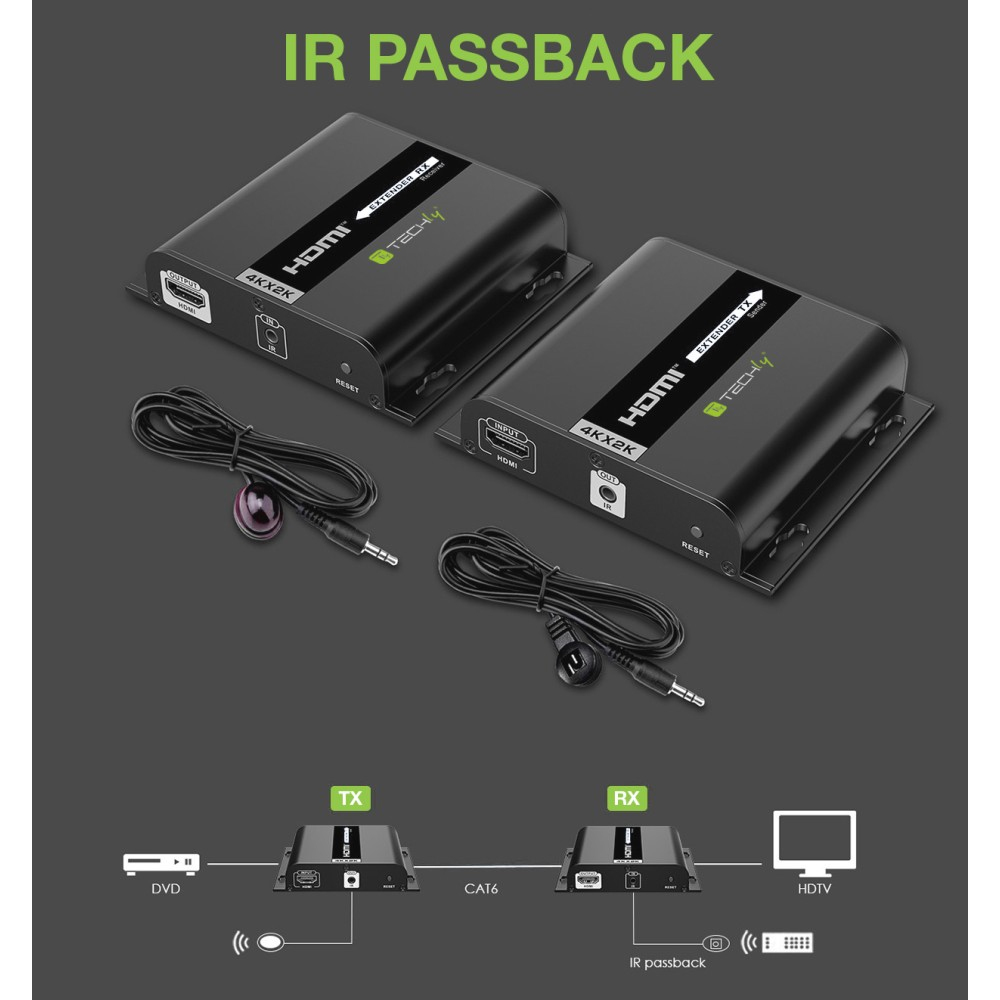

| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 2 A |
| Operating voltage (receiver) | 5 V |
| Power consumption (receiver) (max) | 10 W |
| Power consumption (RX) | 3.5 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 119 x 94 x 23 mm |
| Receiver weight | 275 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
| Manual | Yes |
