IDATA EXTIP-373RA2
Model IDATA EXTIP-373RA2EAN 8059018362527
26 specifications
- ConnectivityWired
- TypeAV receiver
- Power source typeDC
- Operating temperature (T-T)0 - 60 °C
- Receiver dimensions (WxDxH)110 x 58 x 26 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 60 °C
- Receiver dimensions (WxDxH)
- 110 x 58 x 26 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXTIP-373RA2
- Part number
- IDATA EXTIP-373RA2
- EAN / UPC
- 8059018362527
- Also known as
- Techly IDATA EXTIP-373RA2 AV extender AV receiver
Specifications
26 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Certification | EC, FCC , RoHS |

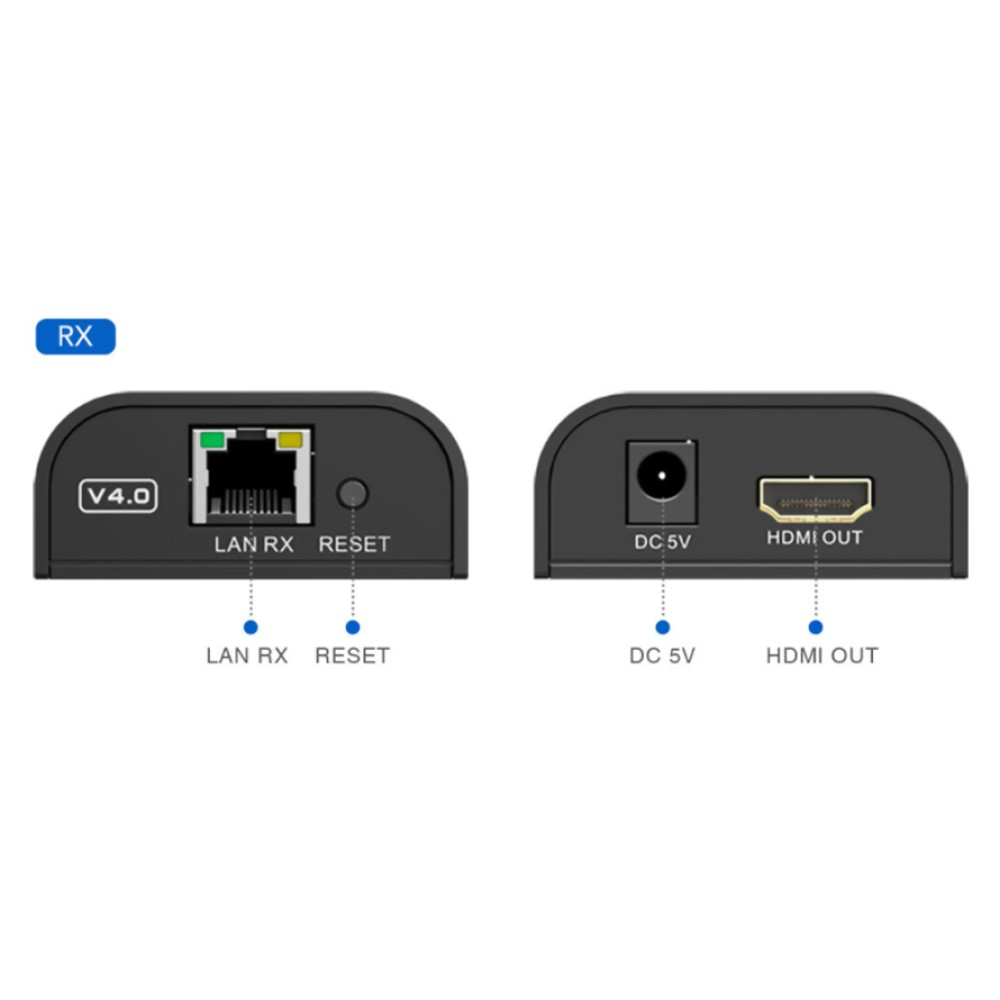

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 1 A |
| Operating voltage (receiver) | 5 V |
| Power consumption (receiver) (max) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 110 x 58 x 26 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

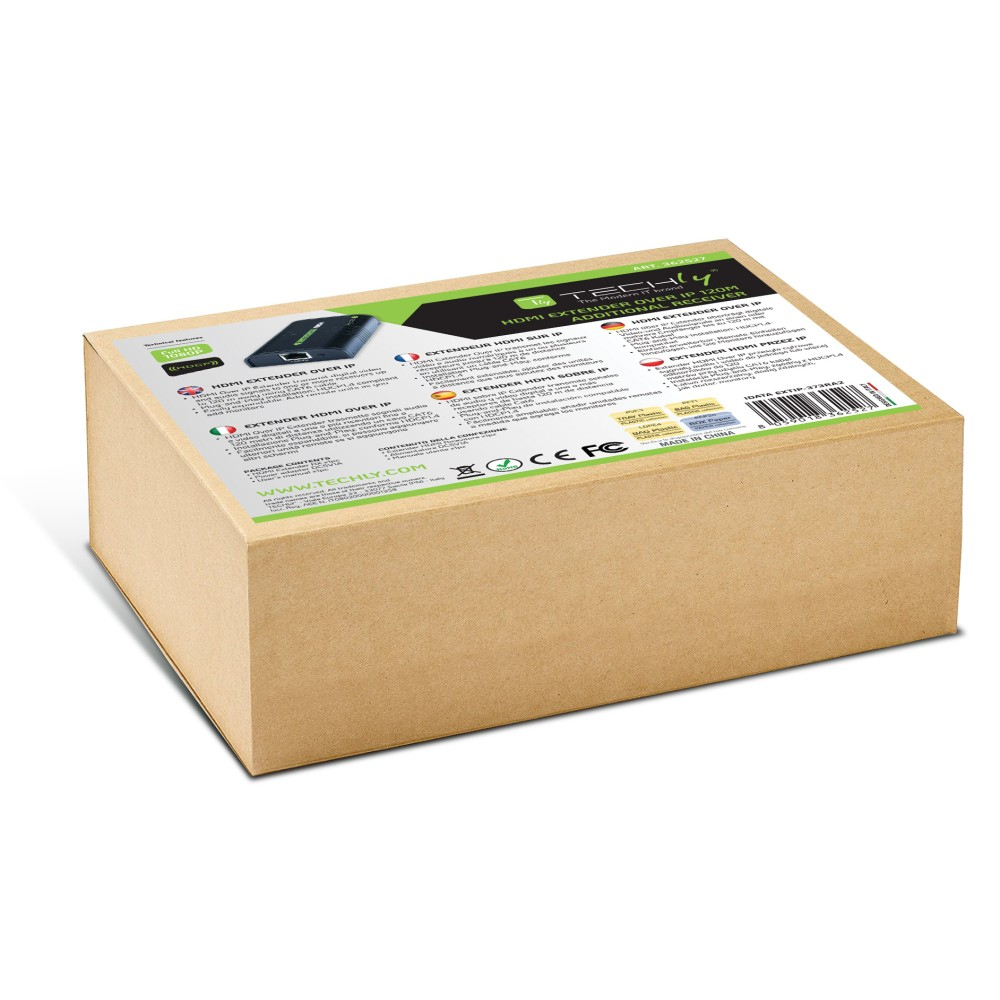

| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
