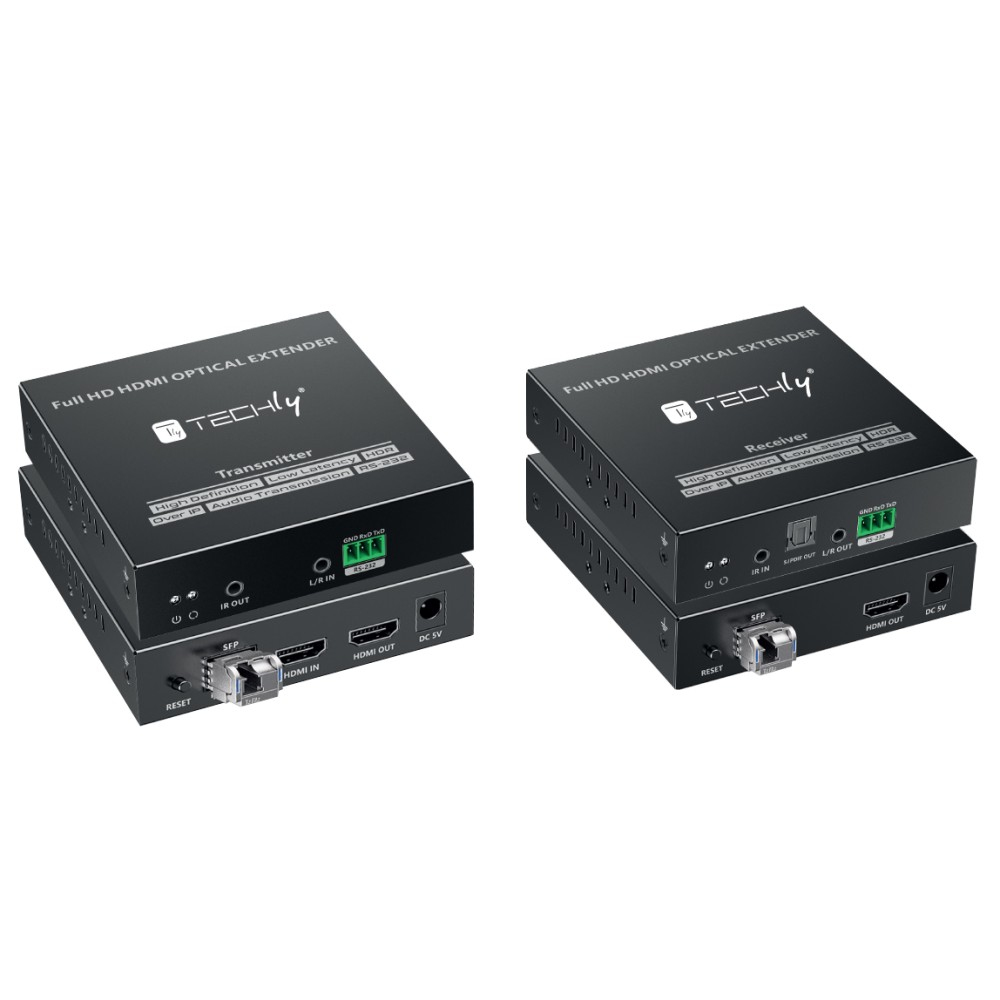

IDATA EXT-EF3000
Model IDATA EXT-EF3000EAN 8059018368338
41 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)0 - 90%
- Receiver dimensions (WxDxH)103 x 106 x 25 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 103 x 106 x 25 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXT-EF3000
- Part number
- IDATA EXT-EF3000
- EAN / UPC
- 8059018368338
- Also known as
- Techly IDATA EXT-EF3000 AV extender AV transmitter & receiver Black
Specifications
41 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 40 m |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Product colour | Black |
| Certification | EC |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 2 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 2 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 2 A |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 103 x 106 x 25 mm |
| Transmitter dimensions (WxDxH) | 103 x 106 x 25 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | 1x Transmitter 1x Receiver 2x DC 5V 2A power supply 1x IR Blaster extension cable 1x IR receiver extension cable 1x SFP optical transceiver (T1310/R1550nm) 1x SFP optical transceiver (T1550/R1310nm) 2x Terminal blocks 4x Mounting ears 10x Screws 2x Terminal screws |
