IDATA EXT-EF2000AV4
Model IDATA EXT-EF2000AV4EAN 8059018363616
39 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight953 g
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)0 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 953 g
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXT-EF2000AV4
- Part number
- IDATA EXT-EF2000AV4
- EAN / UPC
- 8059018363616
- Also known as
- Techly HDMI Fiber Optic Extender 40Km Full HD 1080p @ 60Hz
Specifications
39 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |

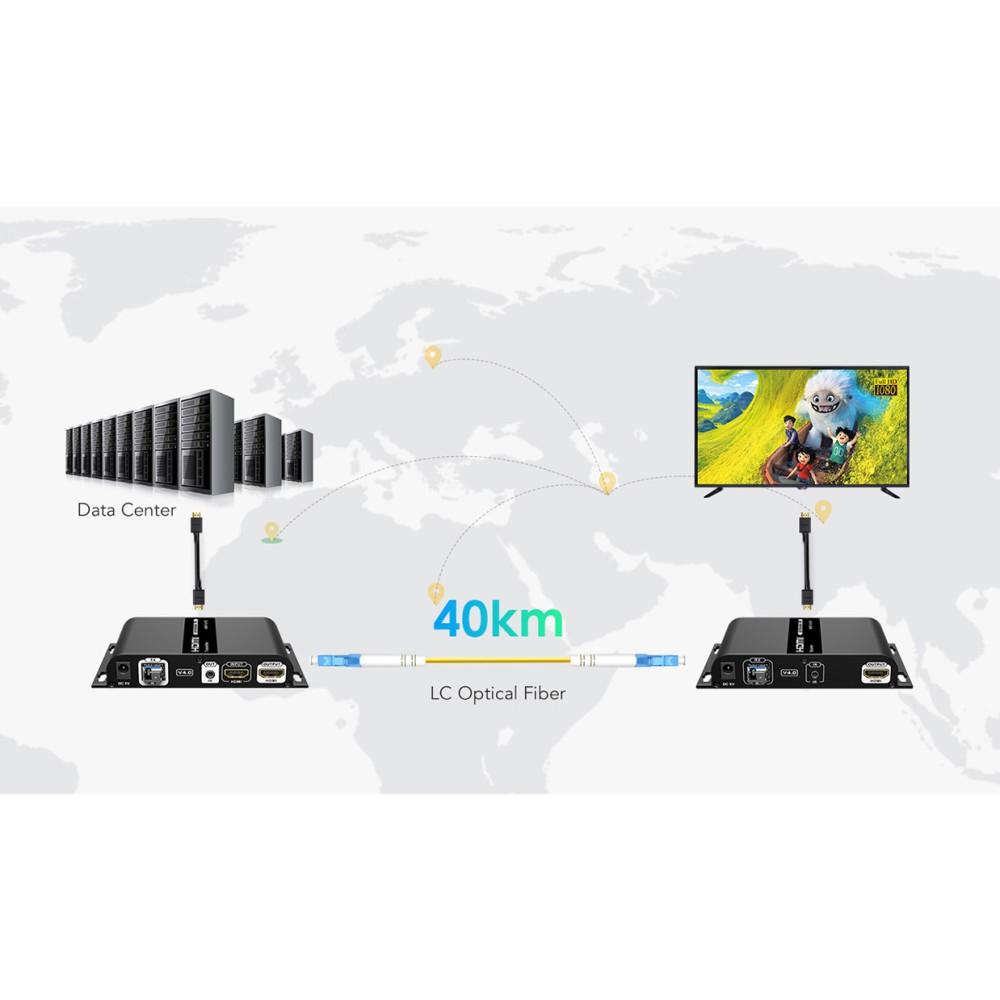

| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Fiber optic wavelengths supported | 1310,1550 nm |
| Maximum refresh rate | 60 Hz |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP | Yes |
| HDCP version | 1.4 |
| RX sensitivity | -23 dB |
| Supported video modes | 1080i, 1080p, 720p, 480i, 480p, 576i, 576p |
| Product colour | Black |

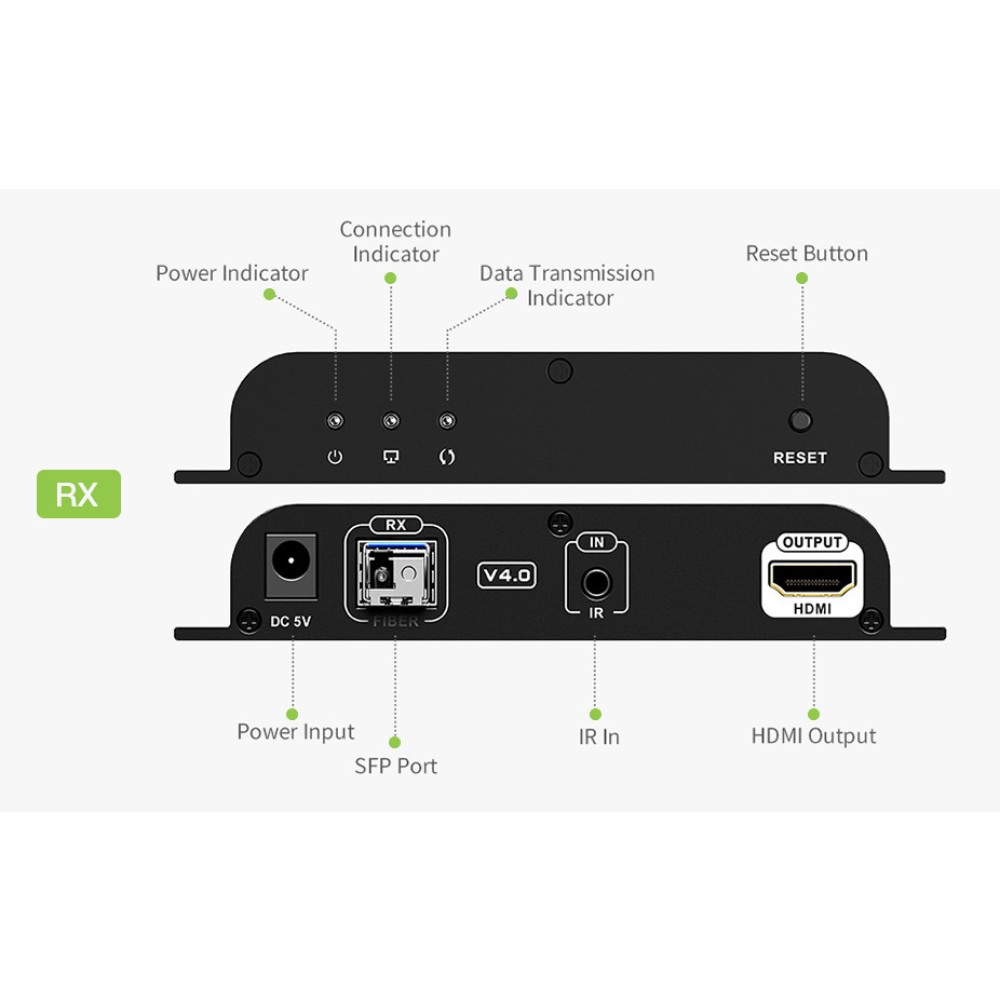

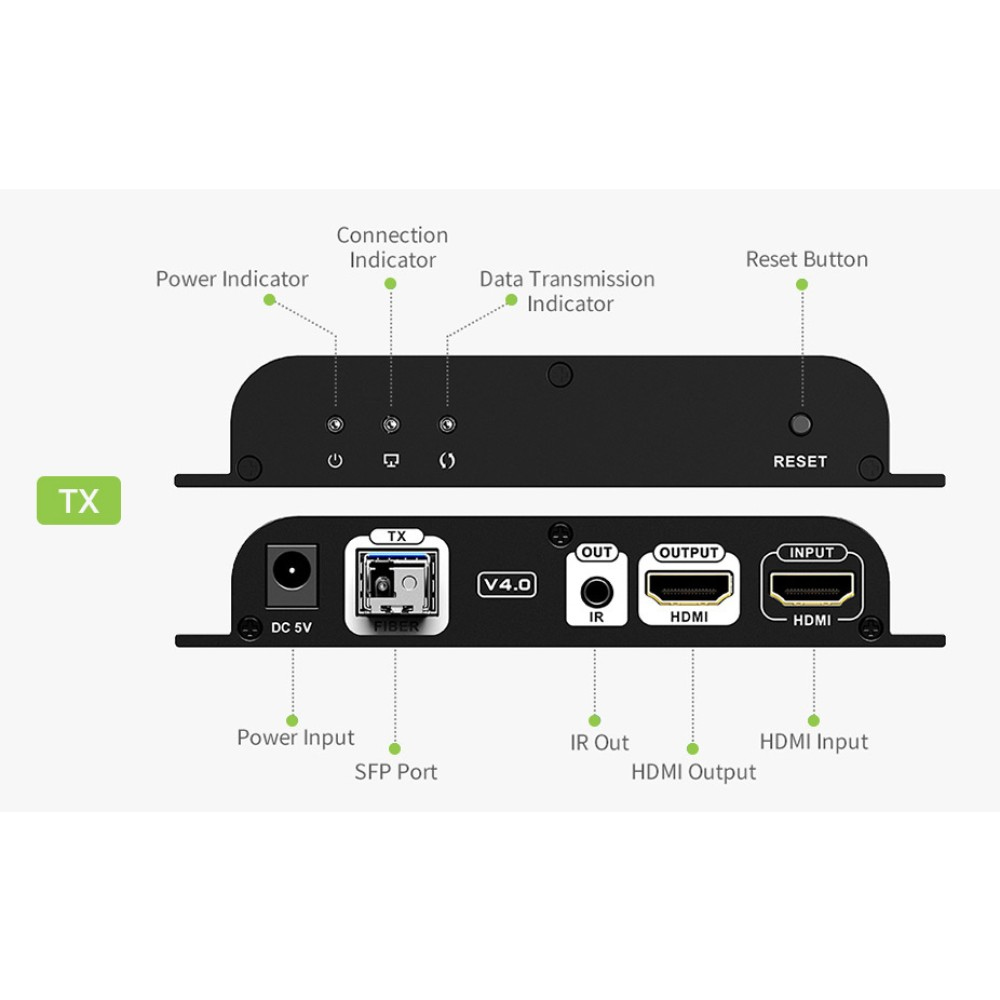

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 2 |
| Fiber optic connector | LC |
| Fiber ports quantity | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 5 V |
| Power consumption (typical) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 81.5 mm |
| Height | 24 mm |
| Weight | 953 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Supplier features
| Specification | Value |
|---|---|
| Vendor code | 363616 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Audio support | Yes |
| Sustainability compliance | Yes |
