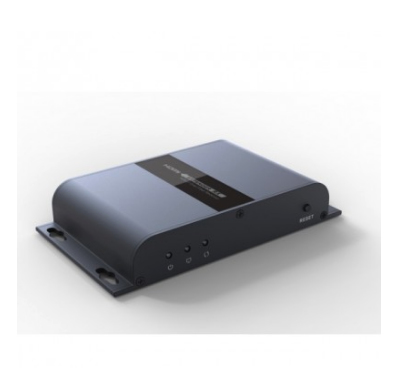

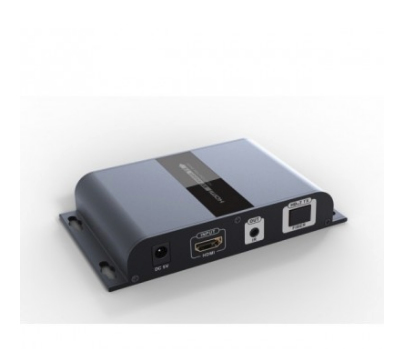

IDATA EXT-EF2000A
Model IDATA EXT-EF2000APart no. IDATA-EXT-EF2000AEAN 8054529028634
26 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight81 g
- ColourBlack
- AC input frequency50 - 60 Hz
- Operating relative humidity (H-H)10 - 85%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 81 g
- Colour
- Black
- AC input frequency
- 50 - 60 Hz
- Operating relative humidity (H-H)
- 10 - 85%
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXT-EF2000A
- Part number
- IDATA-EXT-EF2000A
- EAN / UPC
- 8054529028634
- Also known as
- Techly IDATA EXT-EF2000A AV transmitter & receiver Black
Specifications
26 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Bandwidth | 10.2 Gbit/s |
| Colour depth | 36 bit |
| HDCP | Yes |
| HDCP version | 1.2 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Fiber optic connector | SC |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 5 V |
| Input current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 85 mm |
| Height | 24 mm |
| Weight | 81 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
