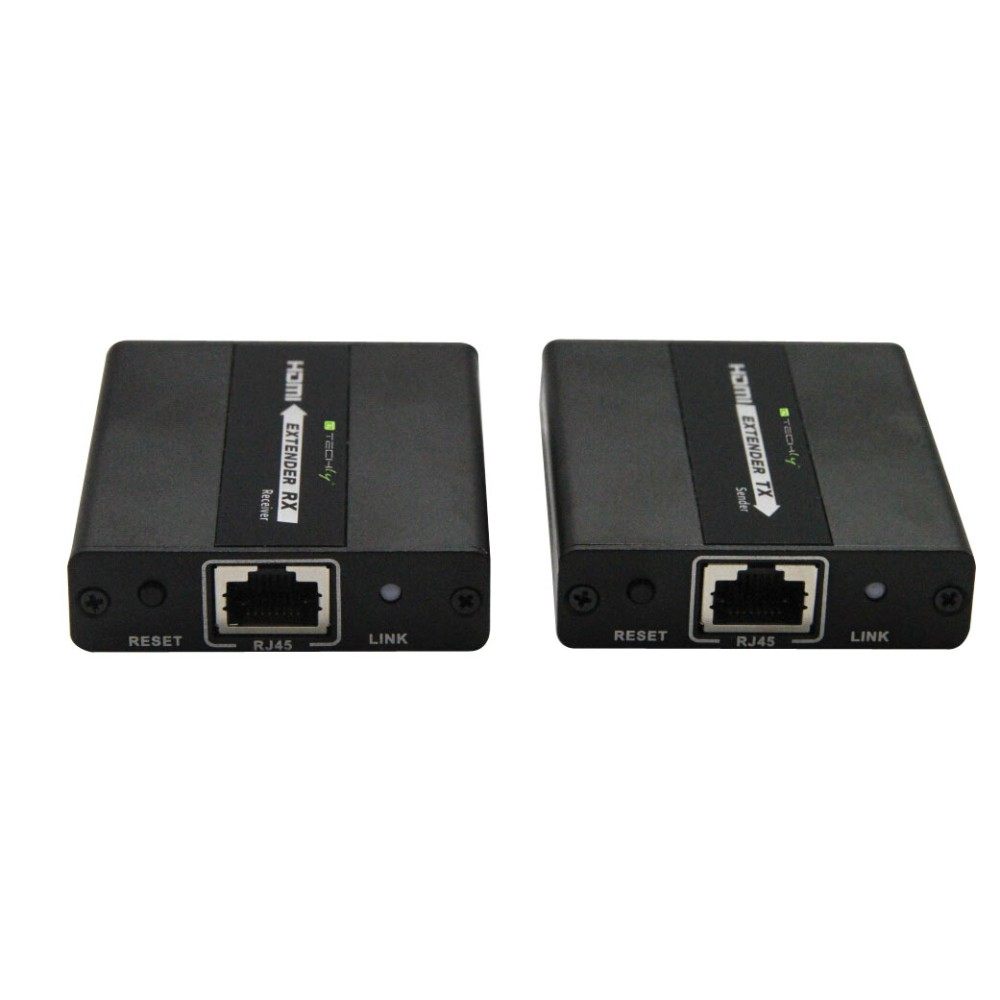

Techly IDATA EXT-E71
Model IDATA EXT-E71EAN 8051128104301
46 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight413 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)0 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 413 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXT-E71
- Part number
- IDATA EXT-E71
- EAN / UPC
- 8051128104301
- Also known as
- Techly IDATA EXT-E71 AV extender AV transmitter & receiver Black
Specifications
46 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| Maximum refresh rate | 60 Hz |
| Audio system | stereo |
| IR pass-through | Yes |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Material | Aluminium |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Transition Minimized Differential Signaling (TMDS) input | 1.5 V |
| Product colour | Black |
| Certification | CE, RoHS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Output current | 1 A |
| Power consumption (transmitter) (max) | 2 W |
| Power consumption (receiver) (max) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.6 mm |
| Depth | 58.8 mm |
| Height | 16.1 mm |
| Weight | 413 g |
| Receiver dimensions (WxDxH) | 69.57 x 58.8 x 16.1 mm |
| Receiver weight | 70 g |
| Transmitter dimensions (WxDxH) | 69.57 x 58.8 x 16.1 mm |
| Transmitter weight | 70 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Supplier features
| Specification | Value |
|---|---|
| Vendor code | 104301 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Audio support | Yes |
