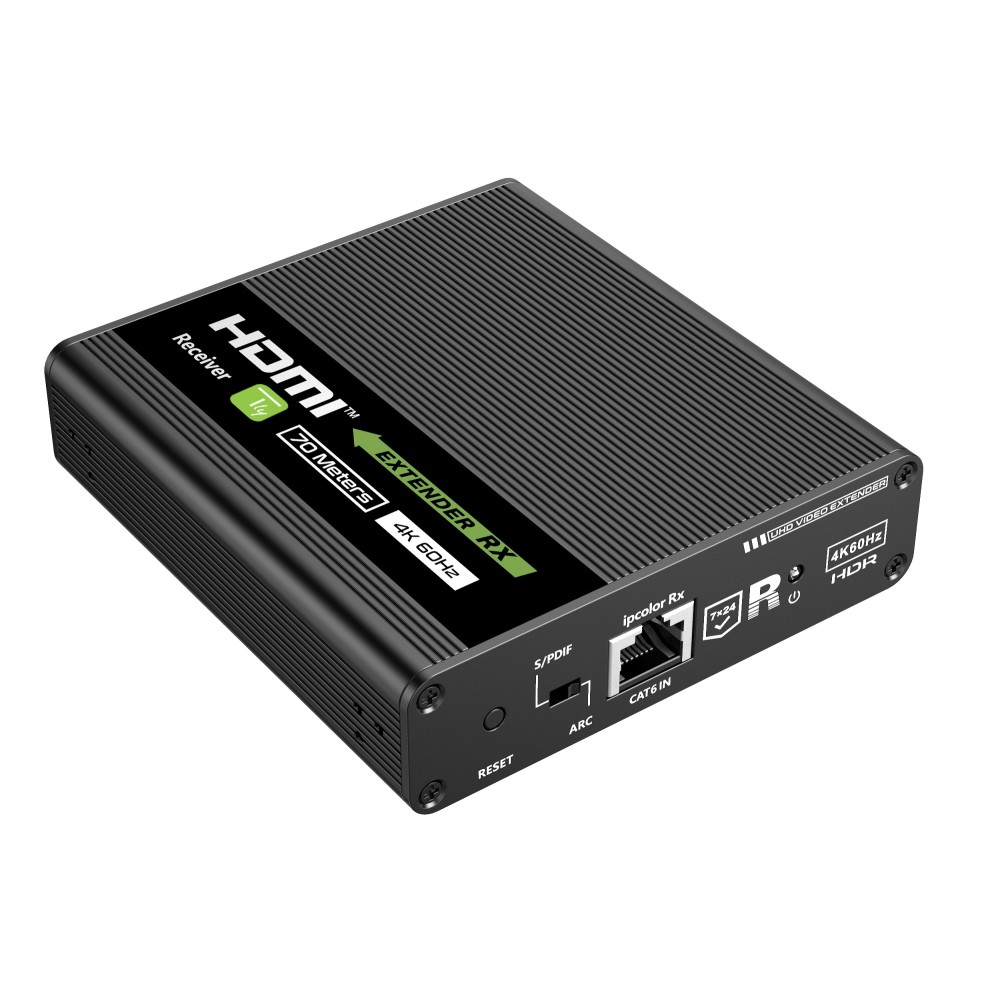

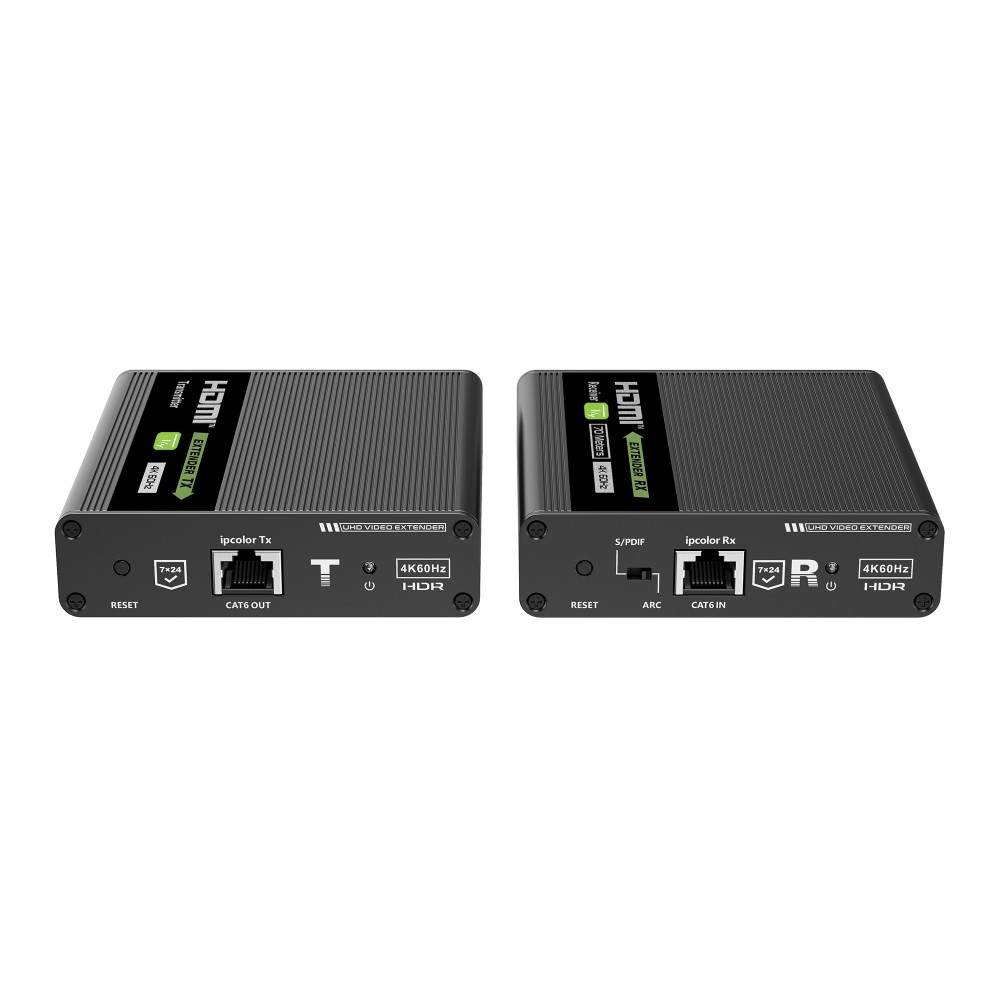

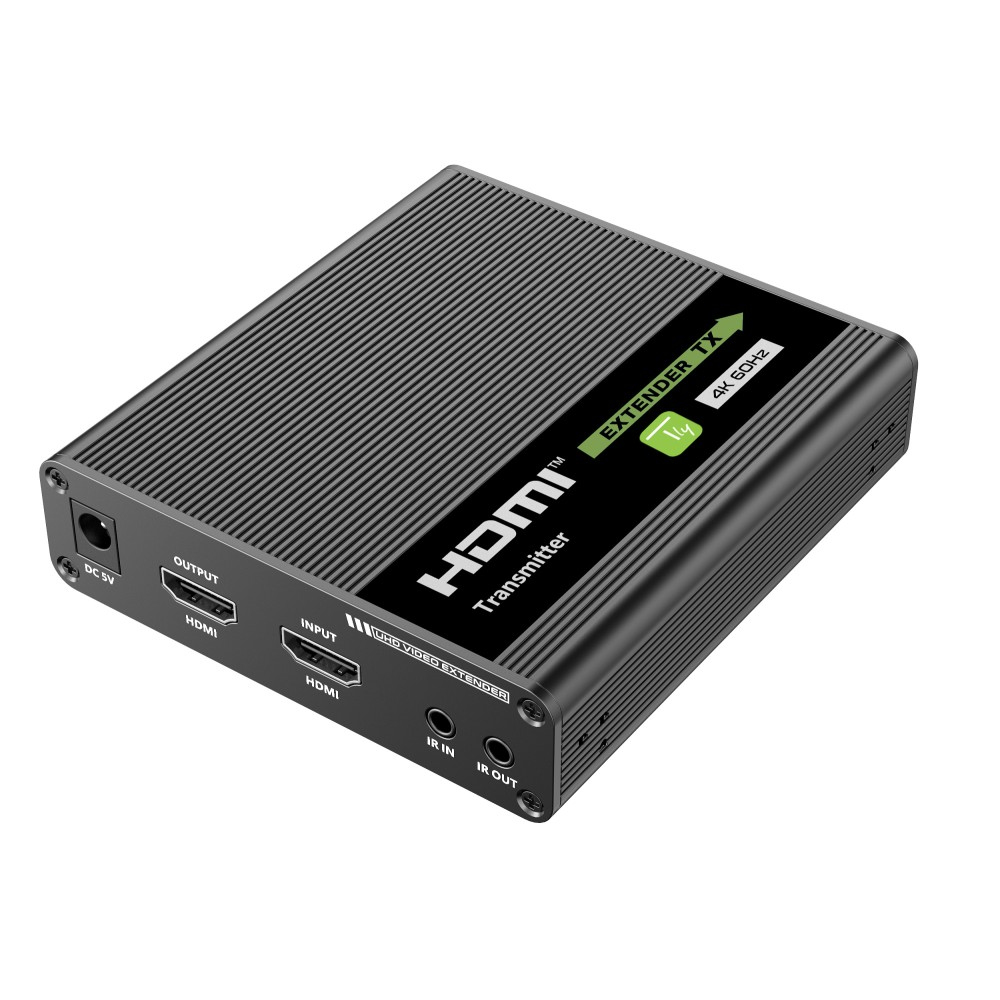

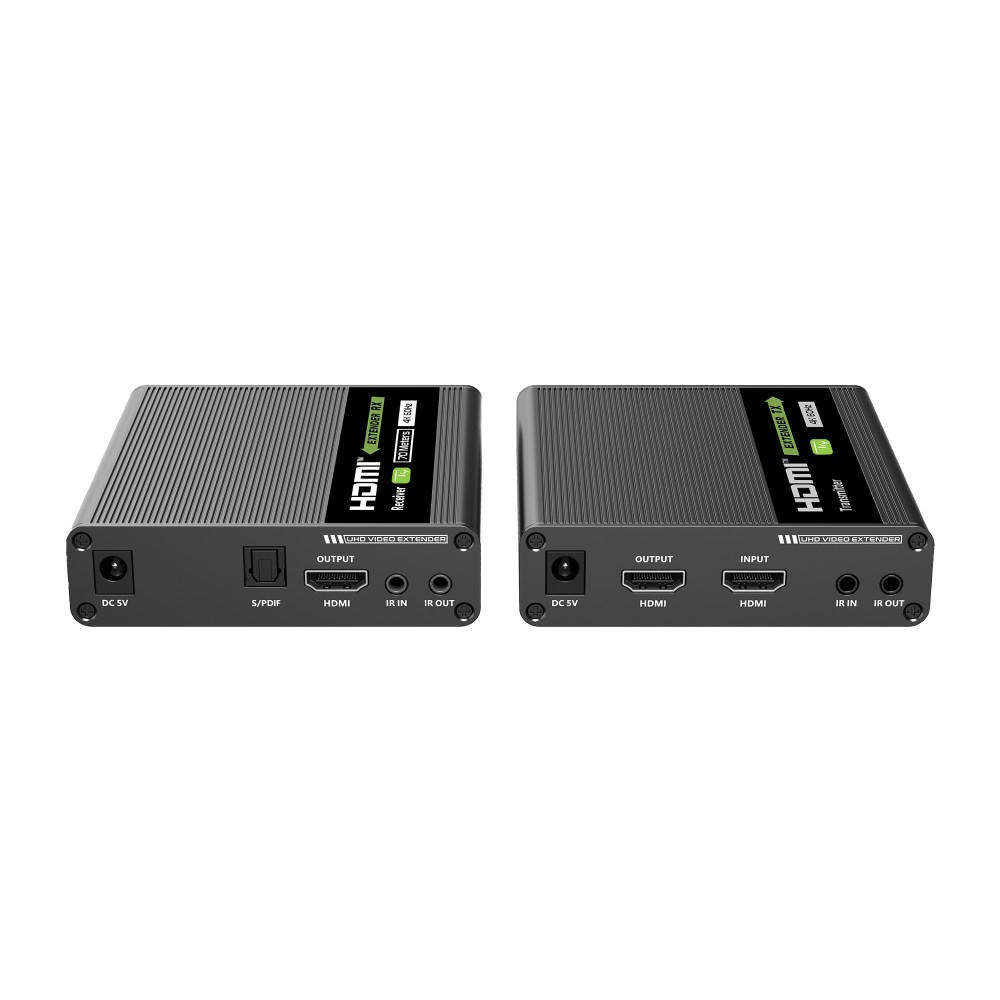

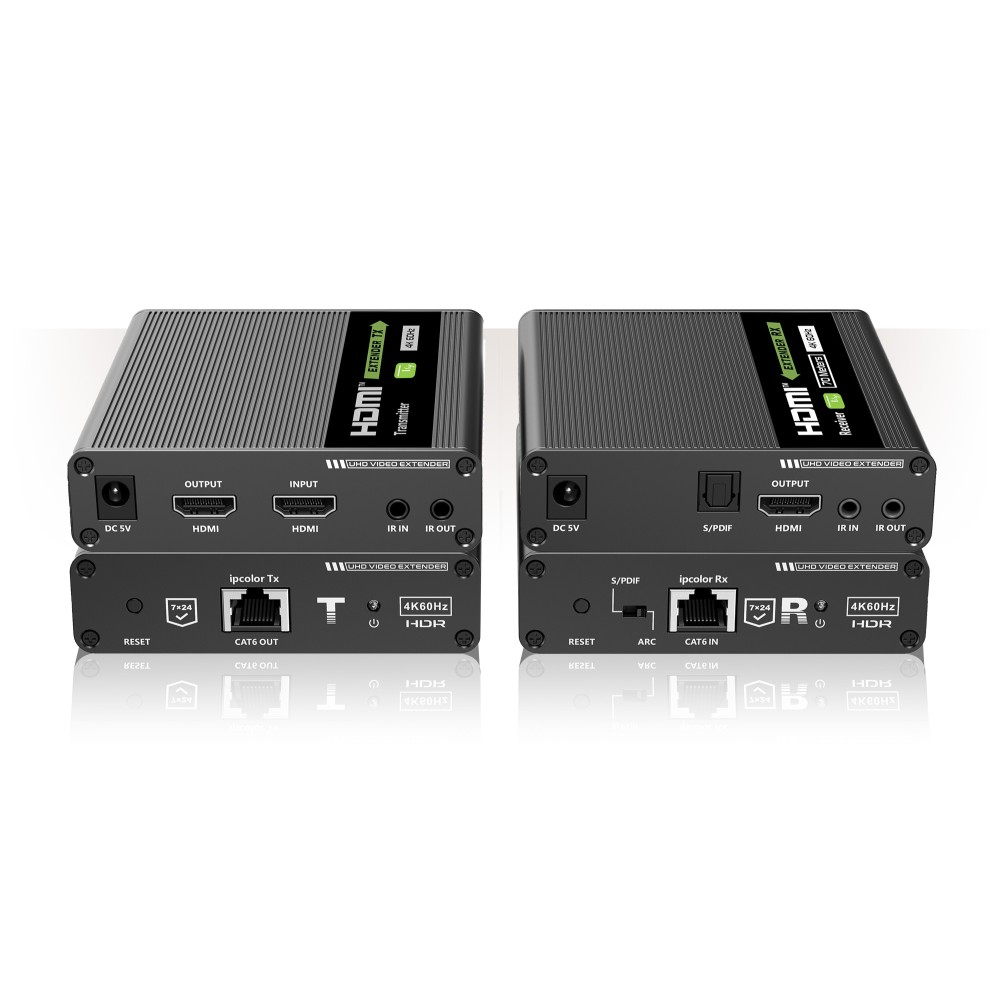

IDATA EXT-676E
Model IDATA EXT-676EEAN 8059018362312
42 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight953 g
- ColourBlack
- Operating relative humidity (H-H)0 - 90%
- Width106.4 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 953 g
- Colour
- Black
- Operating relative humidity (H-H)
- 0 - 90%
- Width
- 106.4 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXT-676E
- Part number
- IDATA EXT-676E
- EAN / UPC
- 8059018362312
- Also known as
- Techly Extender Amplifier 4K HDMI up to 70m on Cat.6/6A/7 Cable one to one connection
Specifications
42 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 70 m |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| Bidirectional | Yes |
| IR pass-through | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Power |
| Material | Metal |
| Supported video modes | 1080i, 1080p, 2160p, 480i, 480p, 576i, 576p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |
| Digital audio optical out | 1 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106.4 mm |
| Depth | 98.7 mm |
| Height | 26.2 mm |
| Weight | 953 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Supplier features
| Specification | Value |
|---|---|
| Vendor code | 362312 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Audio support | Yes |
| Sustainability compliance | Yes |
