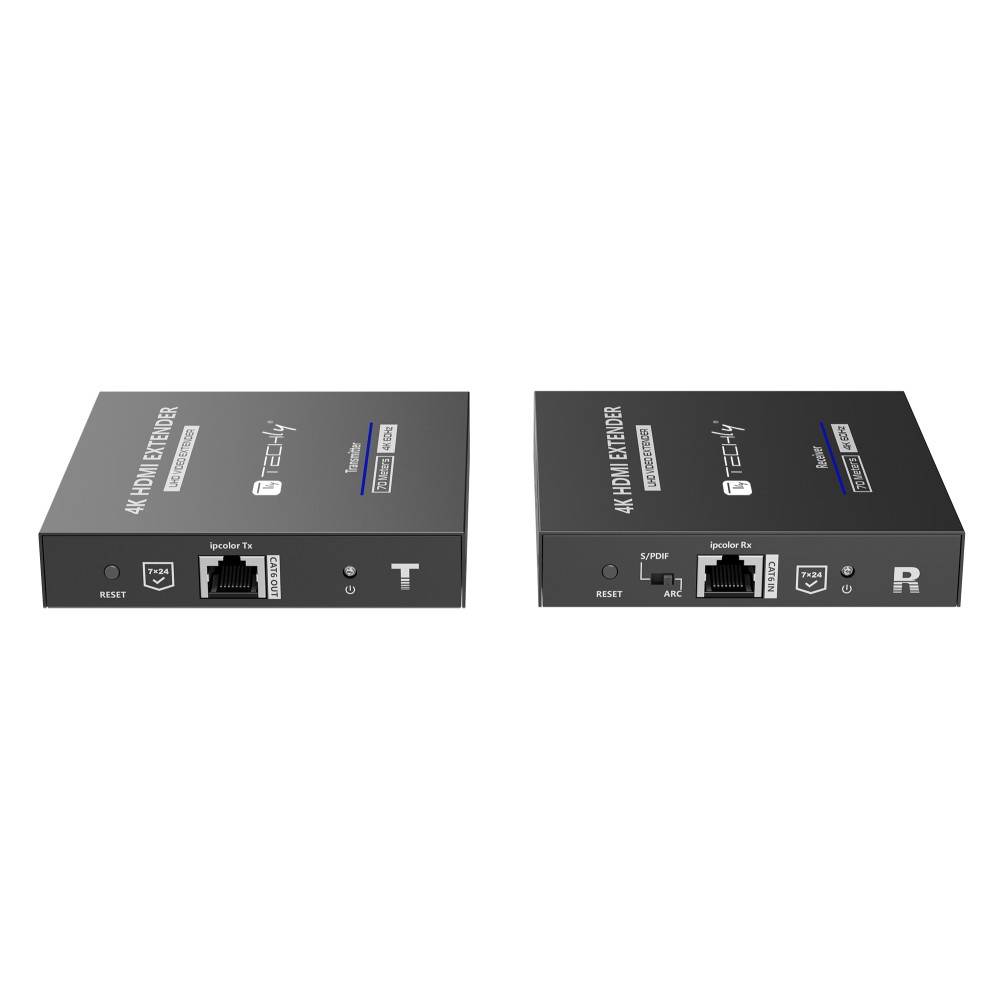

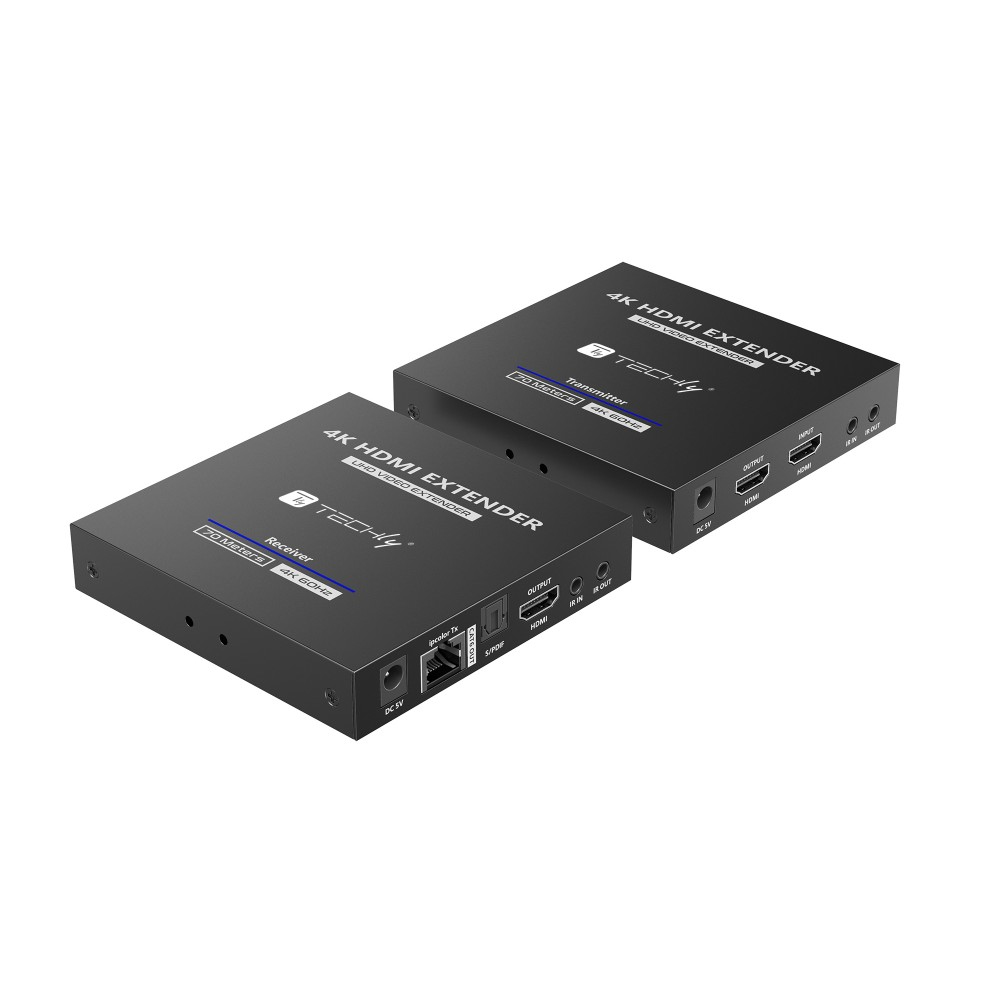

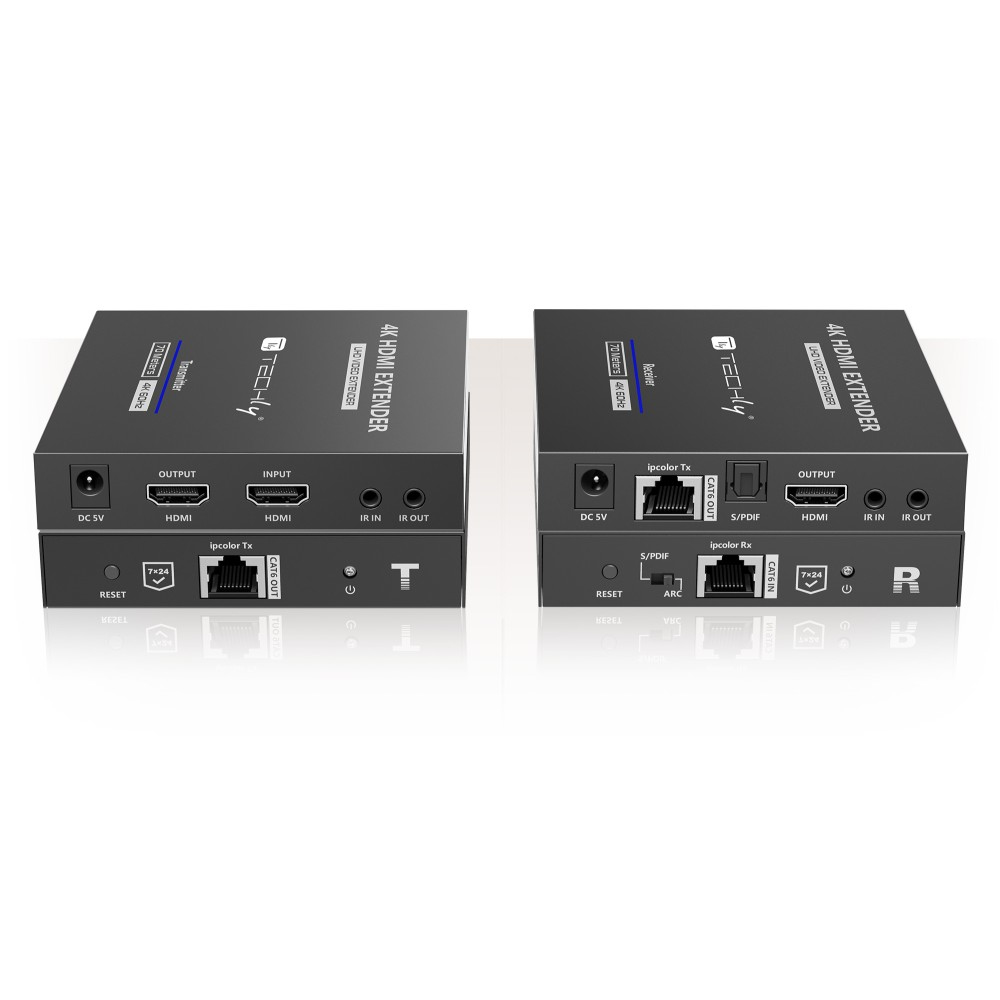

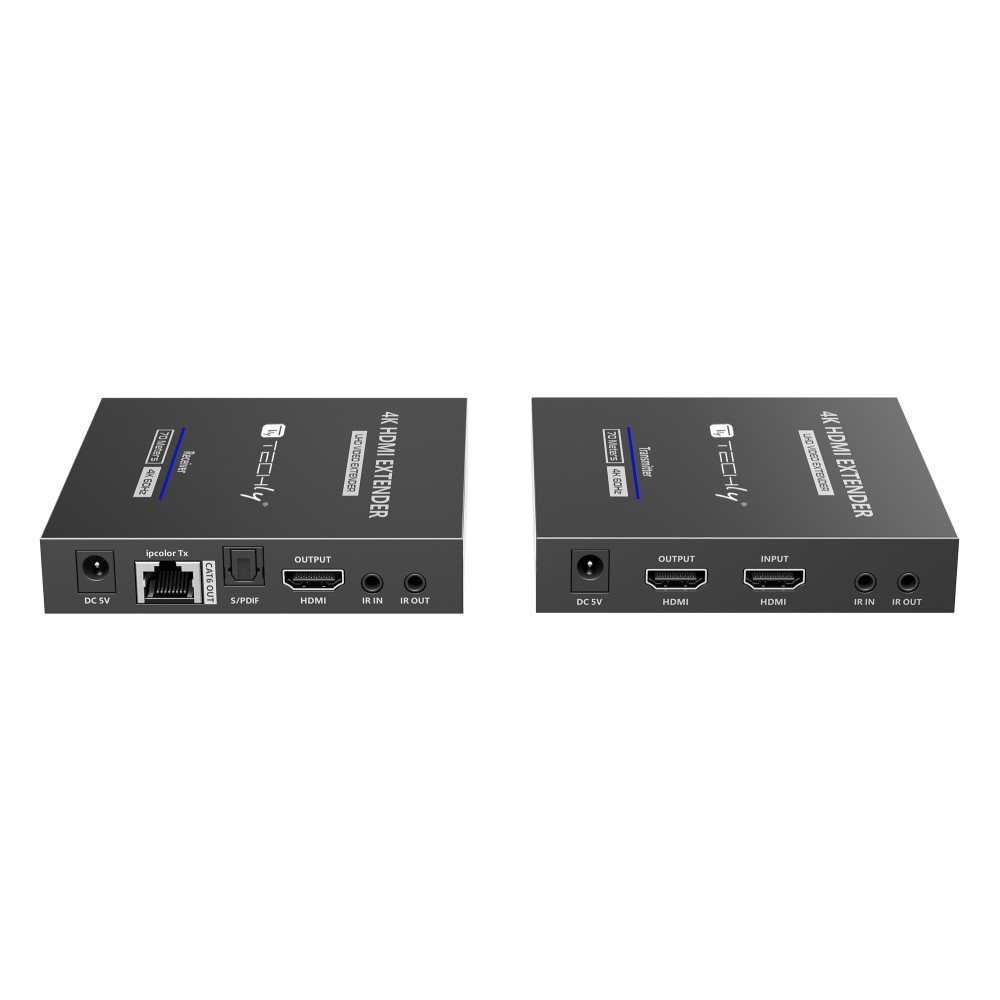

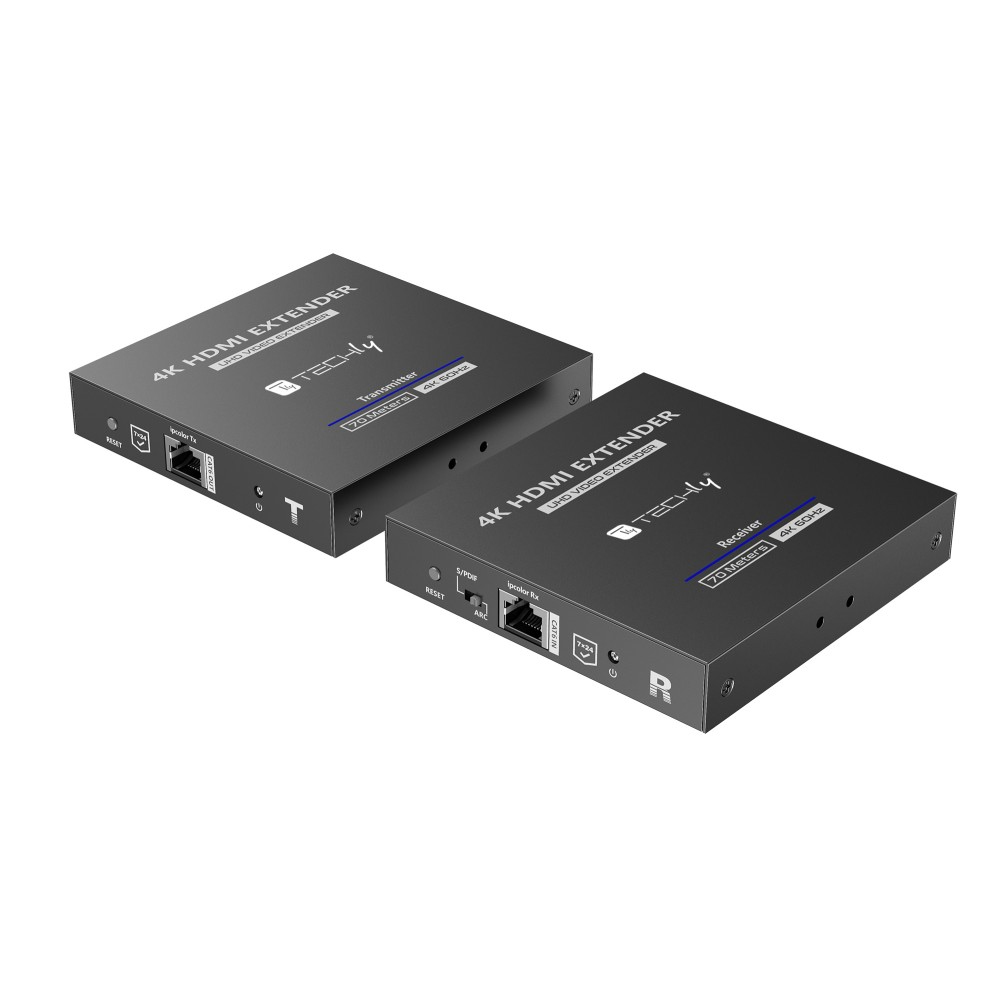

IDATA-EXT-676 AV transmitter & receiver Black
Model IDATA-EXT-676Part no. IDATA EXT-676EAN 8051128109832
35 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- AC input voltage5 V
- Operating relative humidity (H-H)0 - 90%
- Width106.4 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- AC input voltage
- 5 V
- Operating relative humidity (H-H)
- 0 - 90%
- Width
- 106.4 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA-EXT-676
- Part number
- IDATA EXT-676
- EAN / UPC
- 8051128109832
- Also known as
- Techly IDATA-EXT-676 AV transmitter & receiver Black
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Front panel control (RX) | Yes |
| Front panel control (TX) | Yes |
| IR pass-through | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 106.4 mm |
| Depth | 98.7 mm |
| Height | 26.2 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
