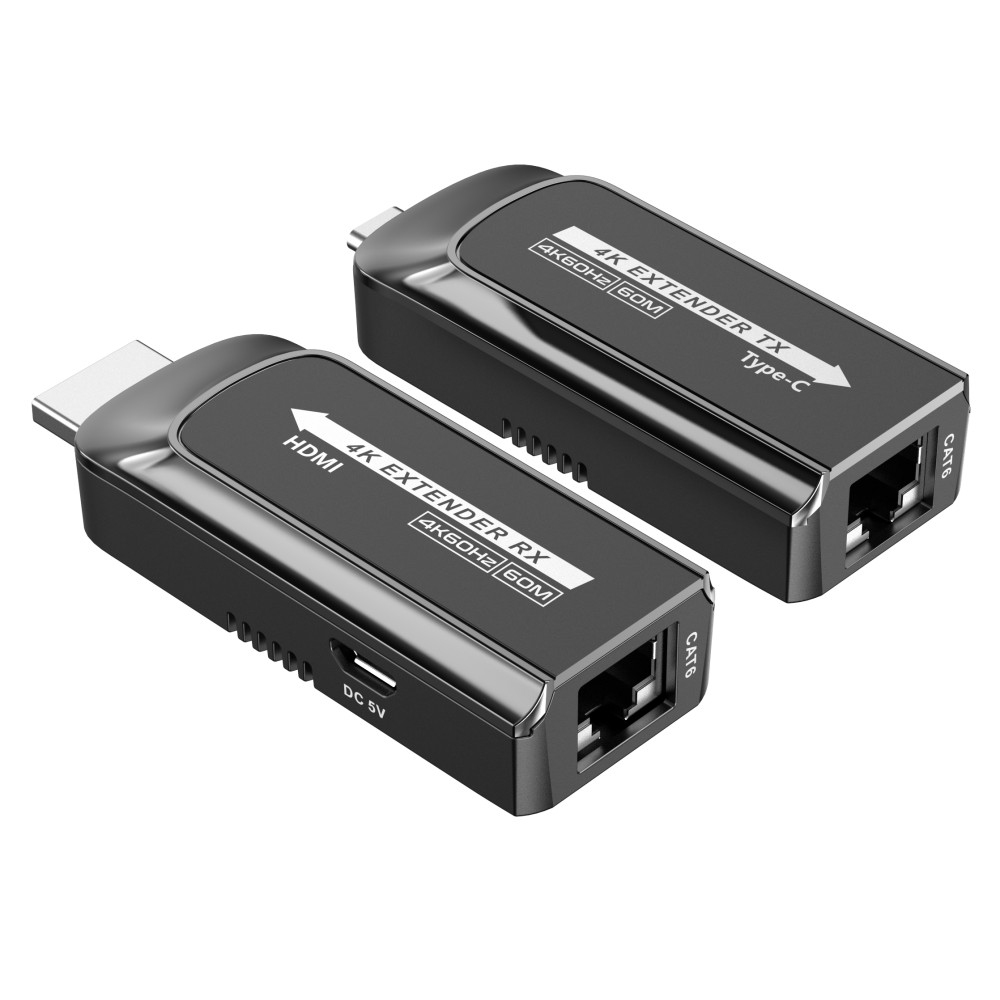

IDATA EXT-600HC

Model IDATA EXT-600HCEAN 8059018367799

49 specifications

Overview

Brand: Techly
Category: AV Extender
Model: IDATA EXT-600HC
Part number: IDATA EXT-600HC
EAN / UPC: 8059018367799
Also known as: Techly IDATA EXT-600HC AV extender AV transmitter & receiver Black

49 specifications in 7 groups

Specification	Value
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat6, Cat6a, Cat7
Maximum transfer distance	60 m
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Maximum refresh rate	120 Hz
Extended display identification data (EDID)	Yes
Electrostatic Discharge (ESD) protection	Yes
Electrostatic Discharge (ESD) protection	8 kV
3D	Yes
Audio formats supported	DTS, PCM
Bandwidth	18 Gbit/s
Display Data Channel (DDC) input	5 V
HDCP	Yes
HDCP version	1.4/2.2
Material	Acrylonitrile butadiene styrene (ABS)
Plug and Play	Yes
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 4096 x 2160
Supported video modes	720p, 1080i, 1080p
Transition Minimized Differential Signaling (TMDS) input	1.2 V
Product colour	Black
Certification	EC, FCC , RoHS

Specification	Value
Power source type	DC
Operating voltage (transmitter)	5 V
Operating voltage (receiver)	5 V
Power consumption (transmitter) (max)	3 W
Power consumption (receiver) (max)	3 W
Power consumption (transmitter) (max)	500 mA
Power consumption (receiver) (max)	500 mA

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-20 - 55 °C
Storage temperature (T-T)	-30 - 60 °C

Specification	Value
Receiver dimensions (WxDxH)	26 x 71.5 x 15 mm
Receiver weight	17.5 g
Transmitter dimensions (WxDxH)	26 x 71.5 x 15 mm
Transmitter weight	17 g

Specification	Value
Quantity per pack	2 pc(s)
Package type	Box

Specification	Value
Cables included	USB
Manual	Yes

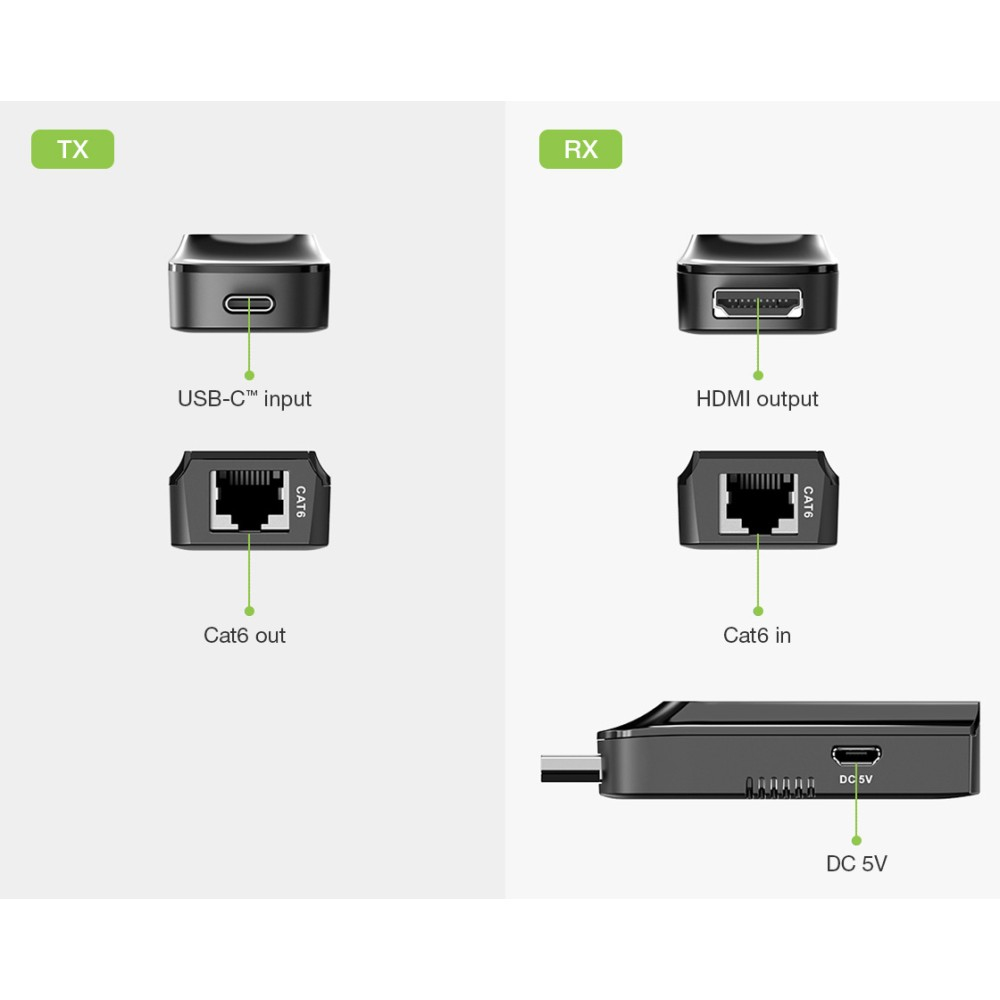

Packaging content	USB-C Transmitter HDMI receiver
