IDATA EXT-410P
Model IDATA EXT-410PEAN 8058956621130
36 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Power source typeDC
- Operating relative humidity (H-H)0 - 90%
- Receiver dimensions (WxDxH)67 x 40 x 23 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 67 x 40 x 23 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EXT-410P
- Part number
- IDATA EXT-410P
- EAN / UPC
- 8058956621130
- Also known as
- Techly IDATA EXT-410P AV extender AV transmitter & receiver
Specifications
36 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 60 m |
| High Dynamic Range (HDR) supported | Yes |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Audio formats supported | LPCM |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Certification | EC |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 67 x 40 x 23 mm |
| Receiver weight | 385 g |
| Transmitter dimensions (WxDxH) | 67 x 40 x 23 mm |
| Transmitter weight | 385 g |

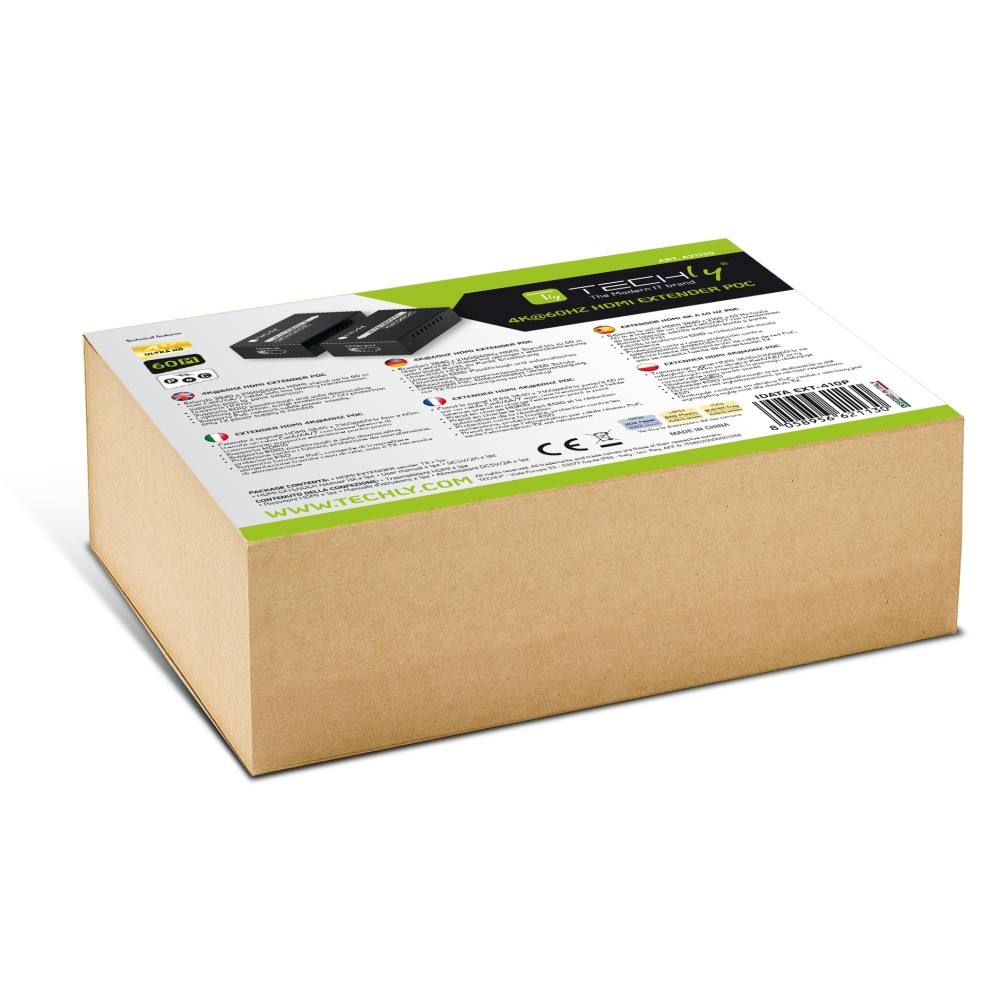

Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Packaging content | 1x HDMI EXTENDER TX Transmitter 1x HDMI EXTENDER RX Receiver |
