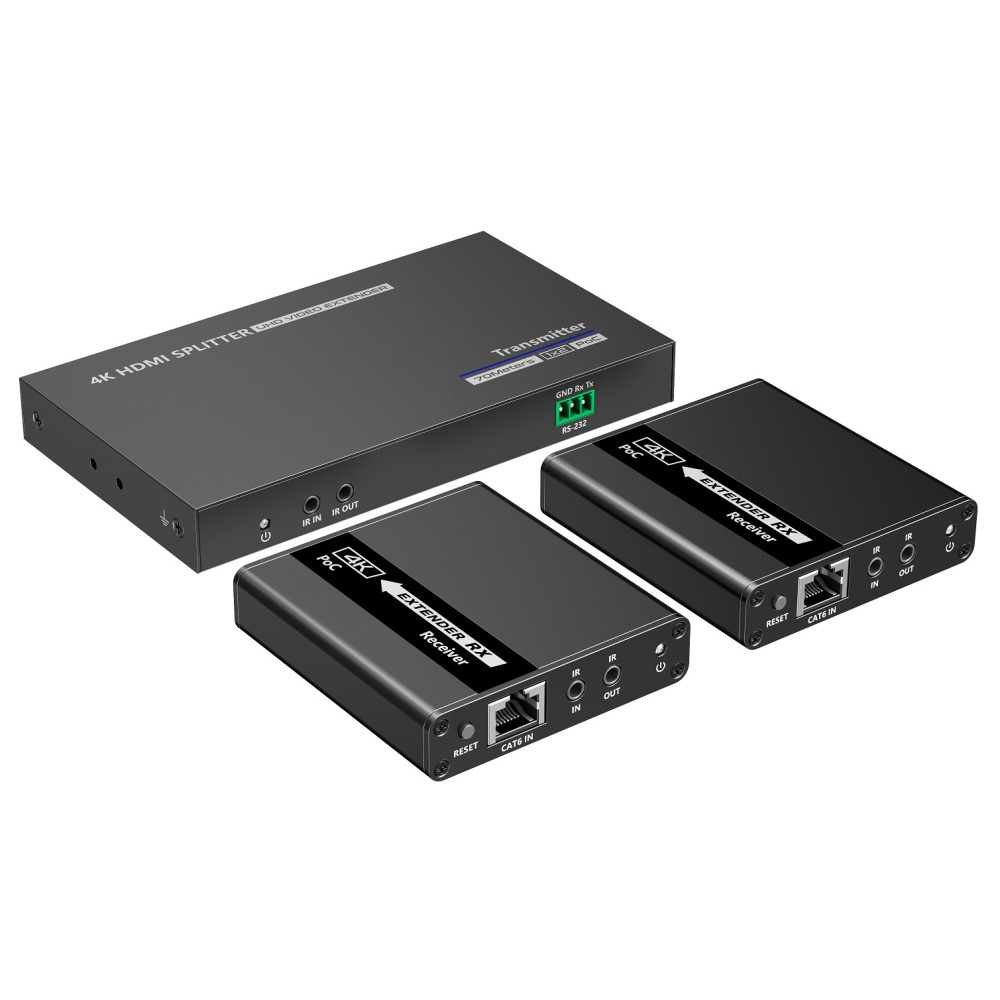

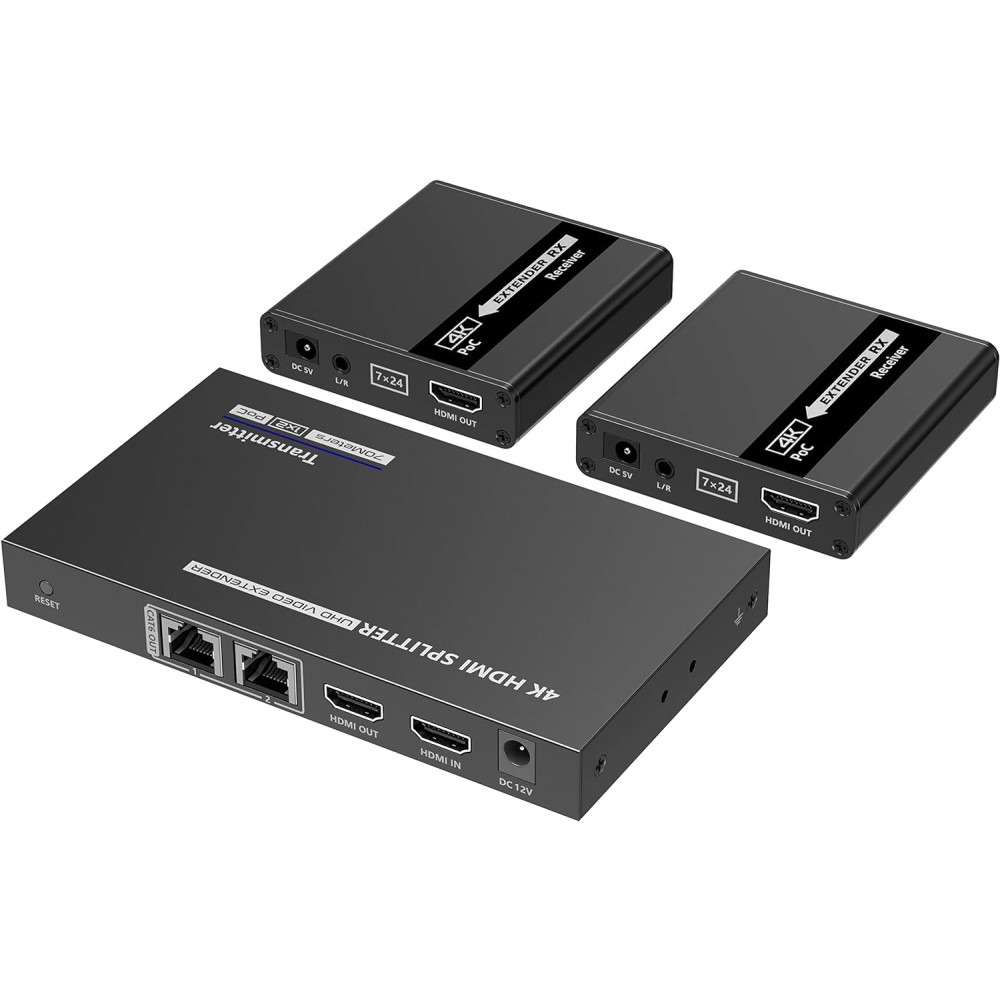

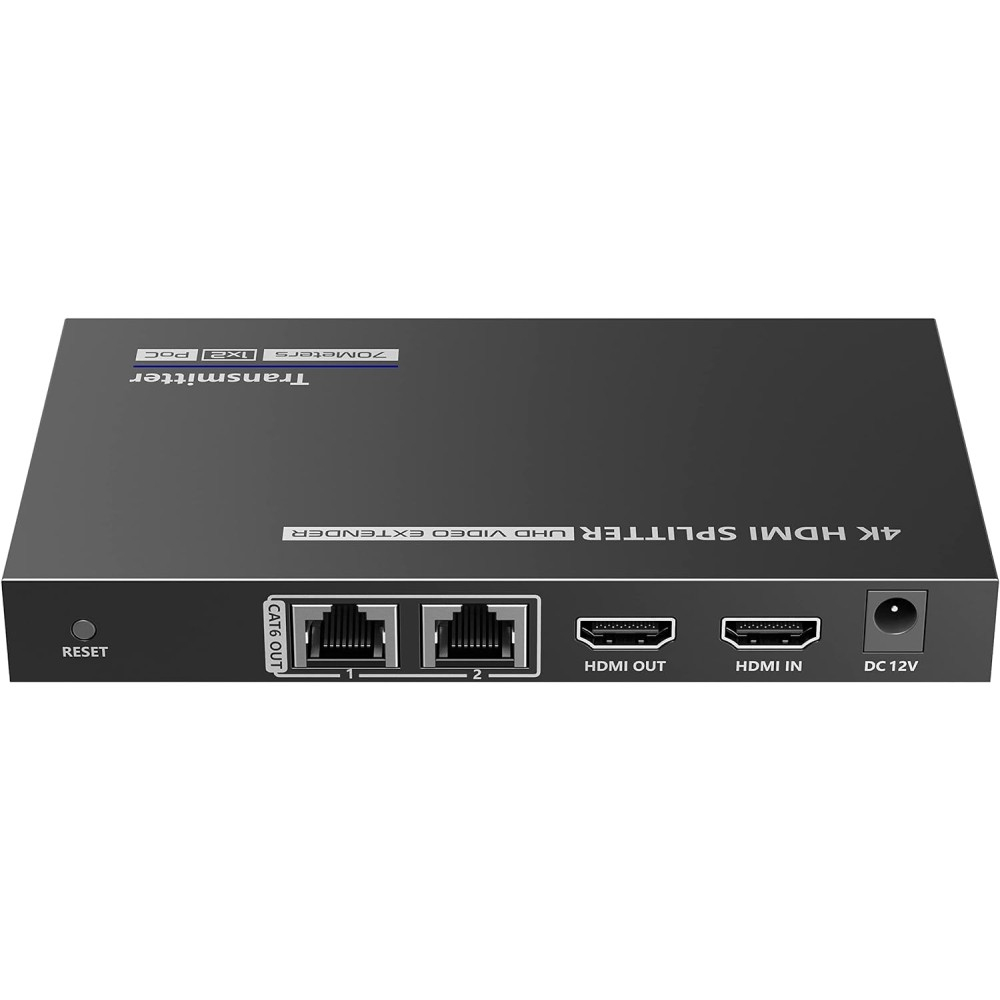

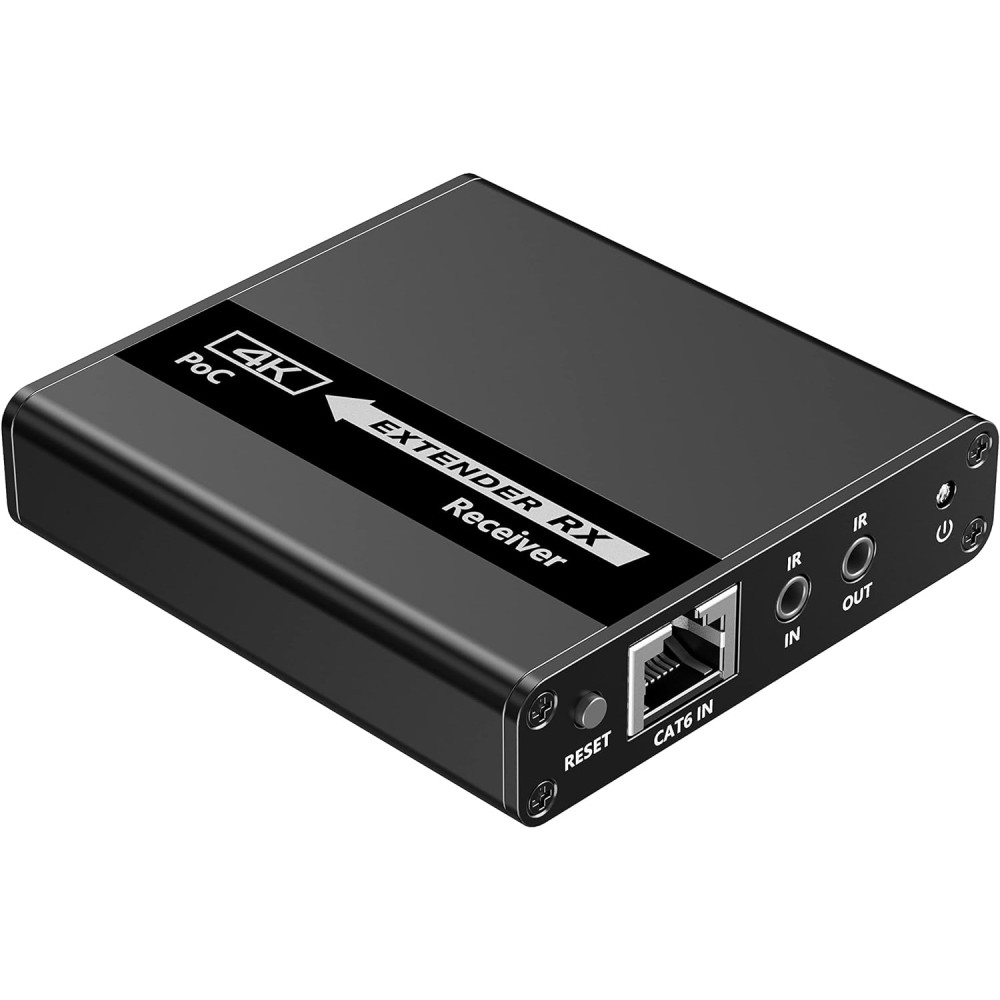

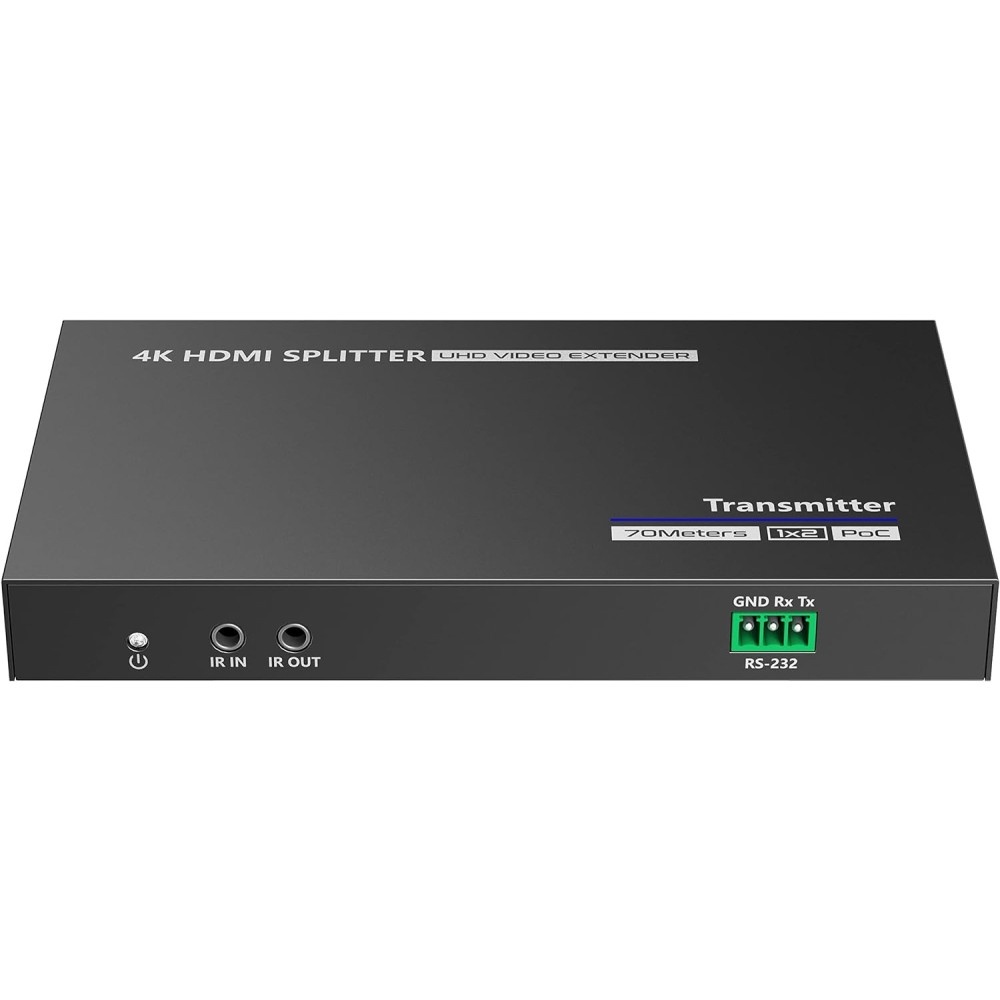

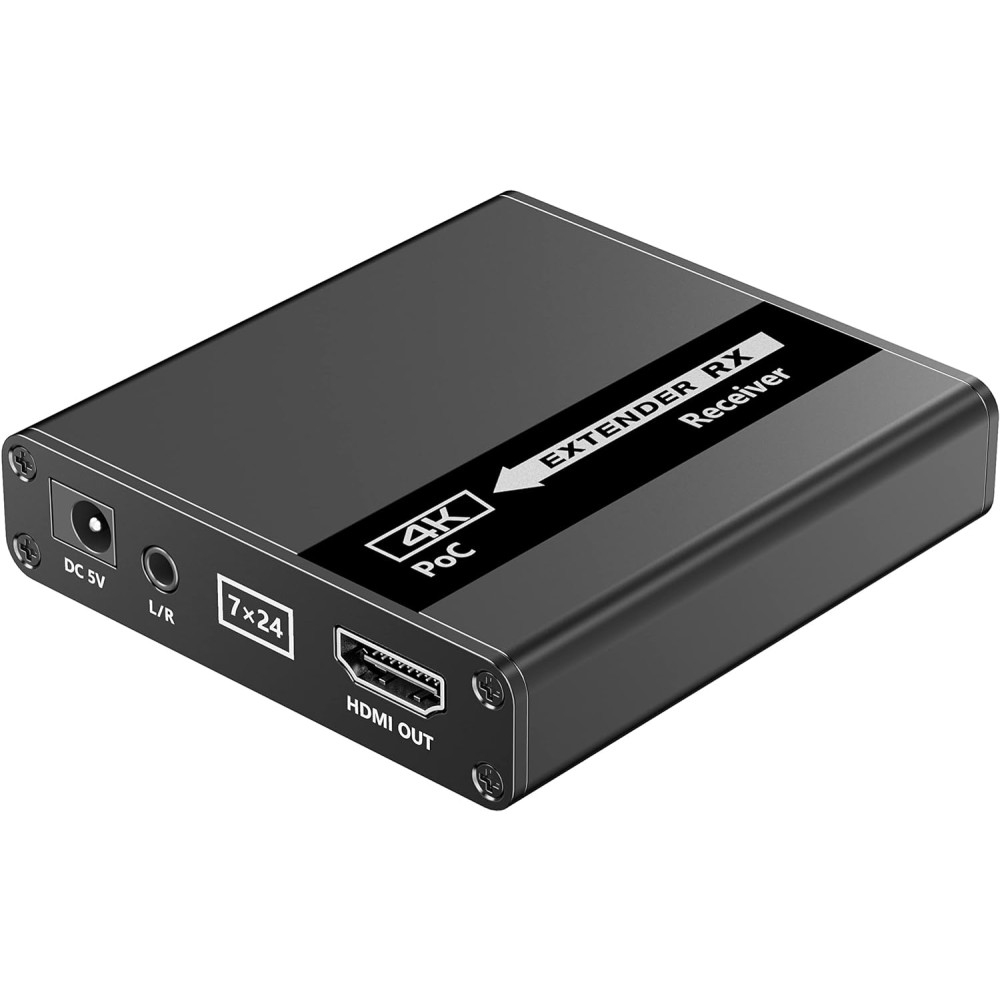

IDATA EX-HL21TYP
Model IDATA EX-HL21TYPEAN 8059018368482
44 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)0 - 90%
- Receiver dimensions (WxDxH)75 x 80 x 18 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 0 - 90%
- Receiver dimensions (WxDxH)
- 75 x 80 x 18 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- IDATA EX-HL21TYP
- Part number
- IDATA EX-HL21TYP
- EAN / UPC
- 8059018368482
- Also known as
- Techly IDATA EX-HL21TYP AV extender AV transmitter & receiver Black
Specifications
44 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 70 m |
| Bidirectional | Yes |
| 3D | No |
| Audio formats supported | LPCM, PCM |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Material | Metal |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
| Certification | EC, RoHS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 3 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 12 V |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| Power consumption (typical) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 75 x 80 x 18 mm |
| Receiver weight | 160 g |
| Transmitter dimensions (WxDxH) | 151.5 x 86.5 x 19 mm |
| Transmitter weight | 280 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 3 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | 1x Transmitter 2x Receiver 1x DC12V/1A power supply 2x Extension cable for IR receiver 1x IR blaster extension cable 1x RS-232 terminal block 2x Fixing support 8x Screw 1x User Manual |
