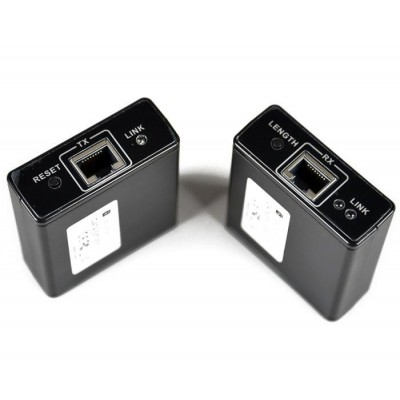

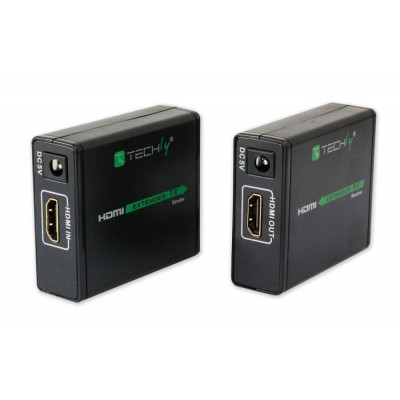

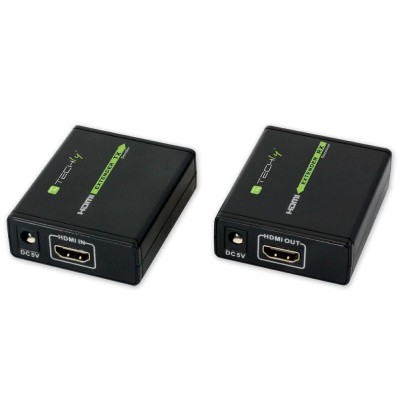

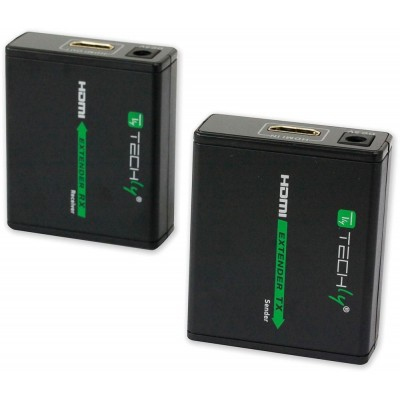

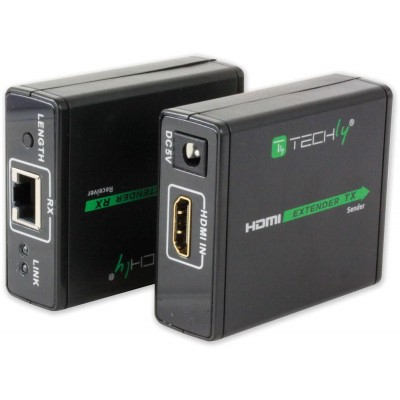

309739 AV extender AV transmitter & receiver Black
Model 309739
22 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight353 g
- ColourBlack
- External power adapterYes
- Width66 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 353 g
- Colour
- Black
- External power adapter
- Yes
- Width
- 66 mm
- Brand
- Techly
- Category
- AV Extender
- Model
- 309739
- Part number
- 309739
- Also known as
- Techly 309739 AV extender AV transmitter & receiver Black
Specifications
22 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 60 m |
| Bandwidth | 10.2 Gbit/s |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
| Certification | CE , FCC , RoHS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Video in | HDMI |
| Video out | HDMI |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 56 mm |
| Height | 22 mm |
| Weight | 353 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
