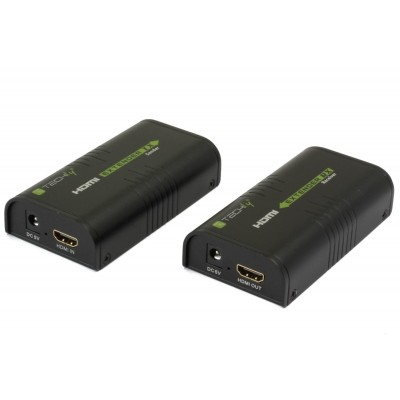

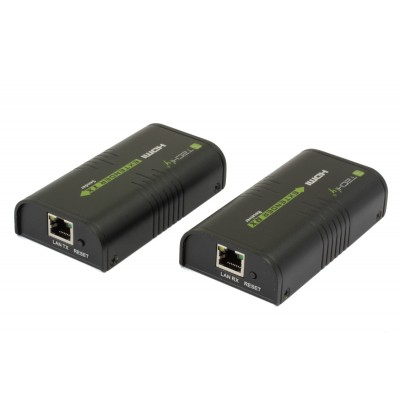

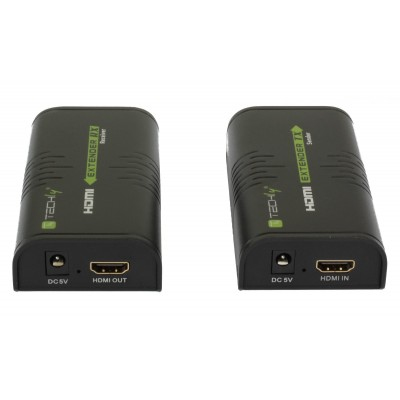

100532 AV extender AV transmitter & receiver Black
Model 100532
24 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight625 g
- ColourBlack
- Input current2 A
- Operating temperature (T-T)0 - 55 °C
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 625 g
- Colour
- Black
- Input current
- 2 A
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- Techly
- Category
- AV Extender
- Model
- 100532
- Part number
- 100532
- Also known as
- Techly 100532 AV extender AV transmitter & receiver Black
Specifications
24 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5, Cat6 |
| Maximum transfer distance | 120 m |
| Colour depth | 36 bit |
| HDCP | Yes |
| HDCP version | 1.2 |
| Material | ABS, Aluminium |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 1 |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Operating voltage (transmitter) | 5 V |
| Power consumption (typical) | 3.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 0 - 0.95% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71.3 mm |
| Depth | 25.9 mm |
| Height | 11.1 mm |
| Weight | 625 g |
