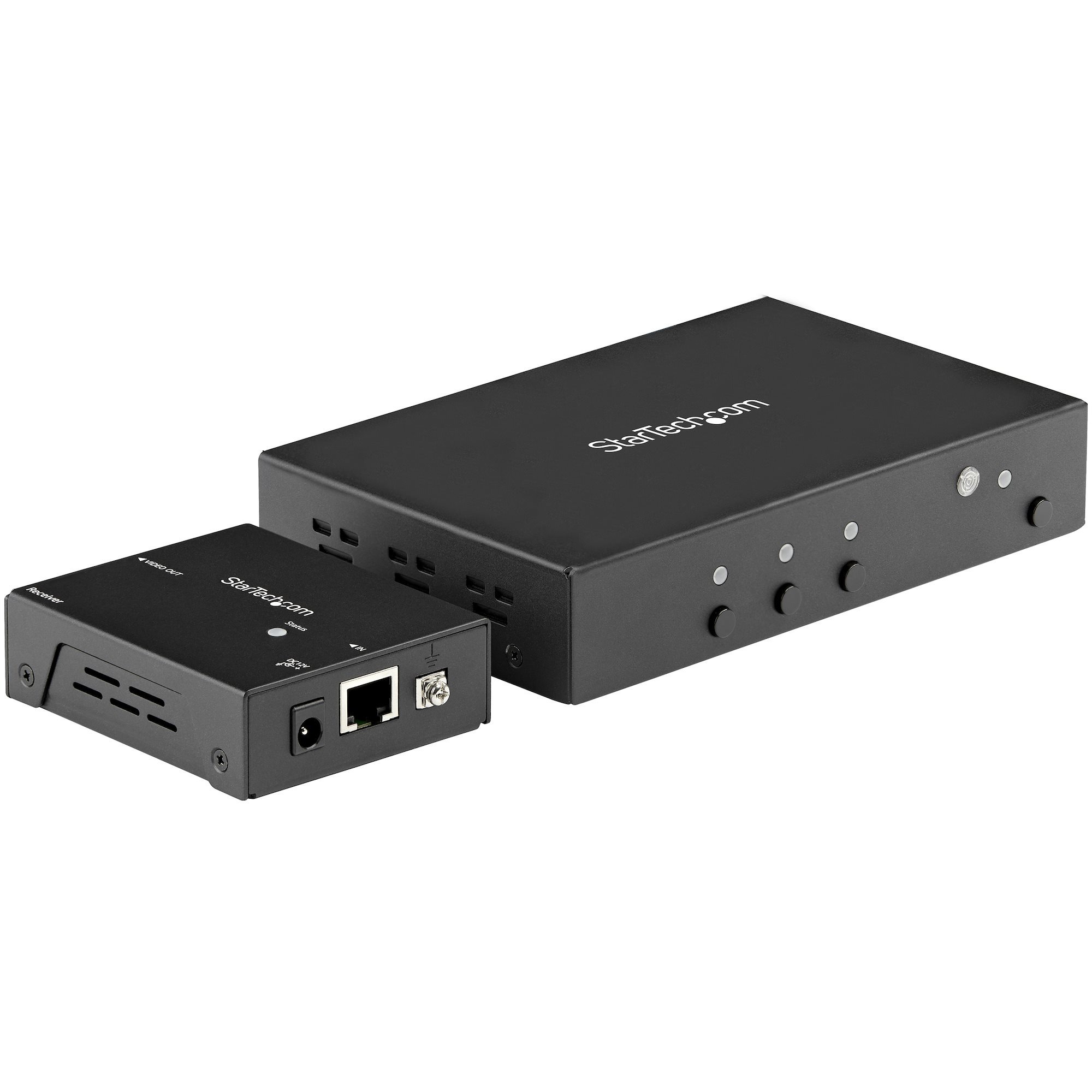

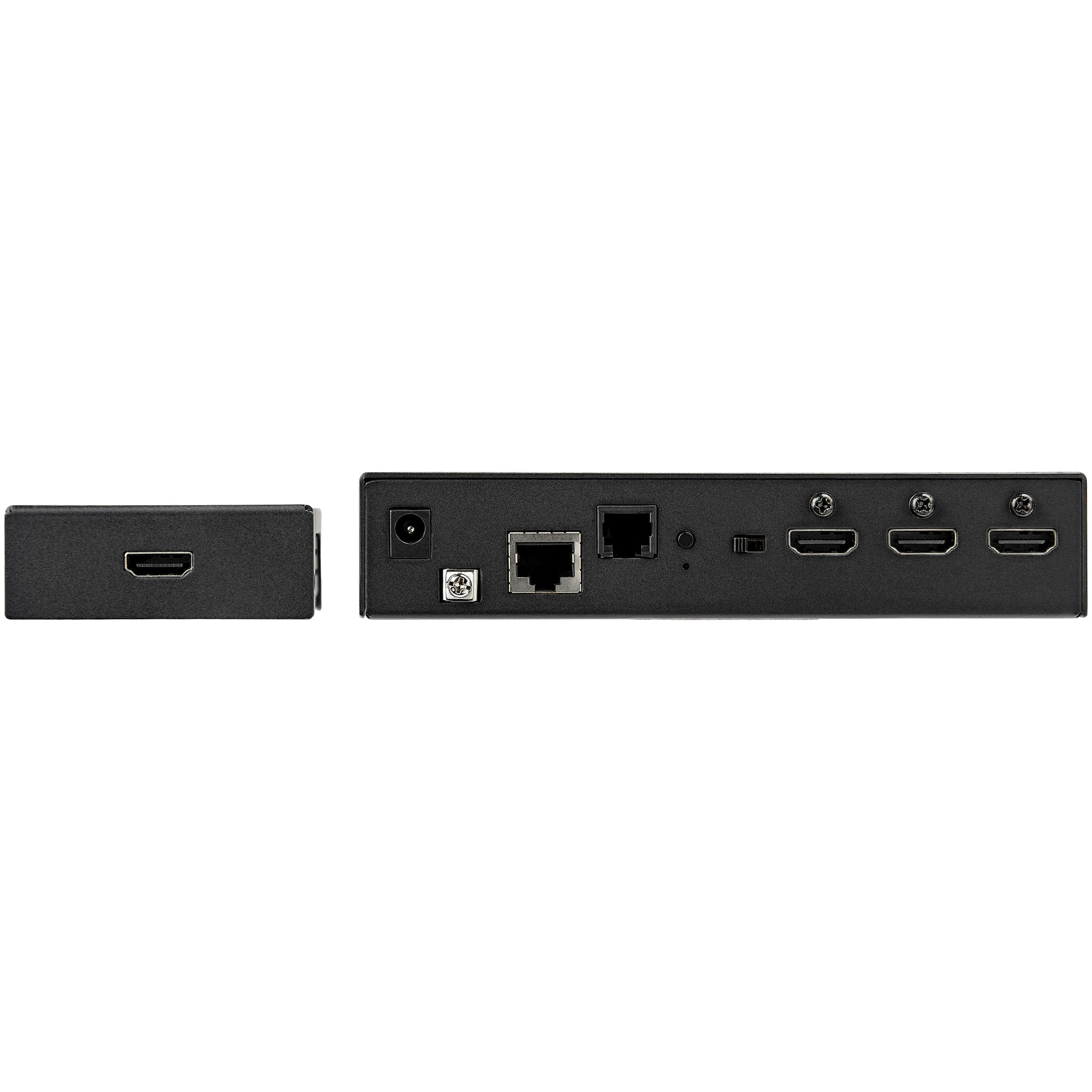

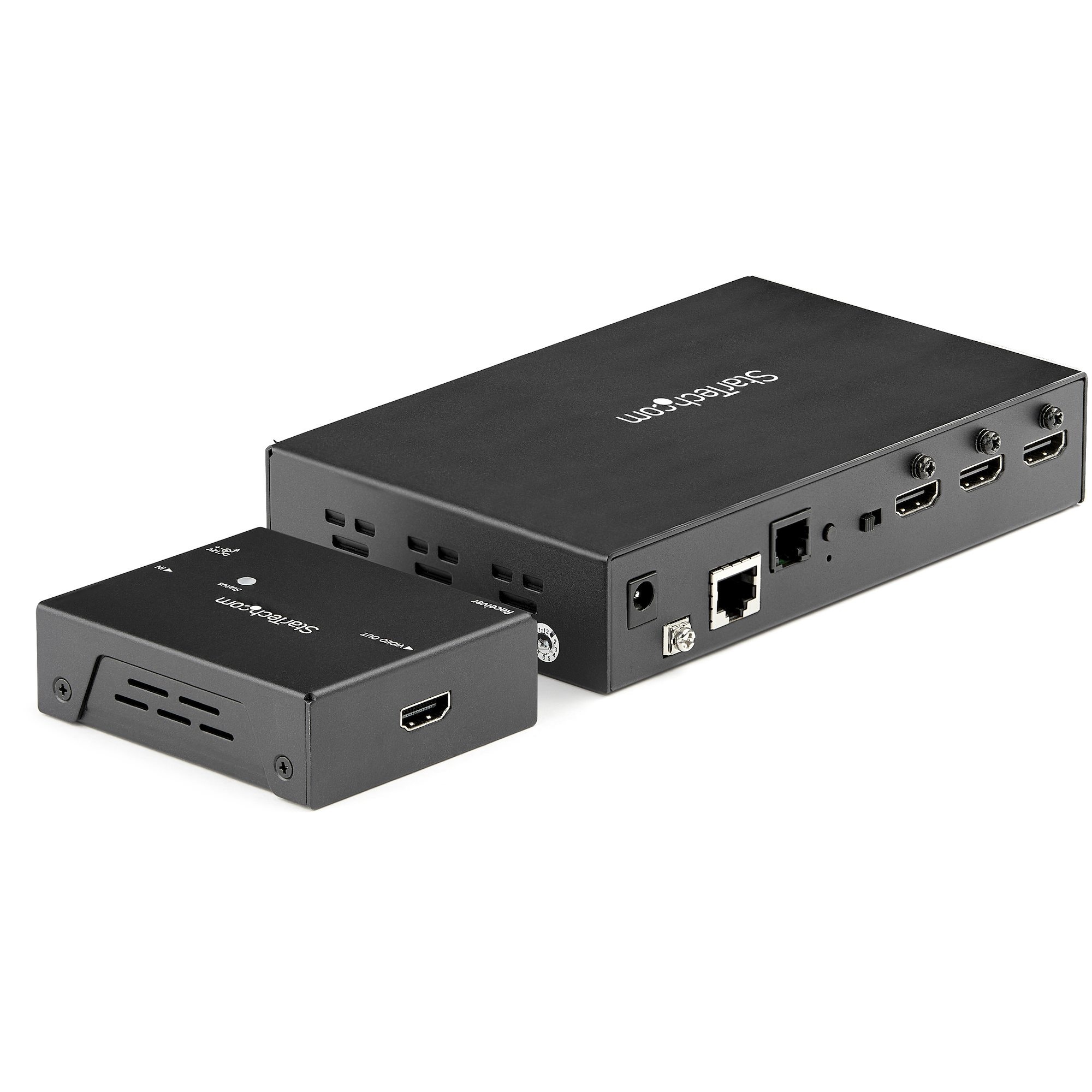

StarTech.com HDMI Extender over CAT6 with 3 Port Video Switch, 4K
StarTech.com

HDMI Extender over CAT6 with 3 Port Video Switch, 4K

30Hz/115ft, HDBaseT HDMI Extender Kit, IR Control, 4K Video over Ethernet w/ Automatic HDMI Sw

Model VS321HDBTKEAN 065030880091

45 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)0 - 90%
  • Compliance certificatesCE, RoHS
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
0 - 90%
Compliance certificates
CE, RoHS
Brand
StarTech.com
Category
AV Extender
Model
VS321HDBTK
Part number
VS321HDBTK
EAN / UPC
065030880091
Also known as
StarTech.com HDMI Extender over CAT6 with 3 Port Video Switch, 4K 30Hz/115ft, HDBaseT HDMI Extender Kit, IR Control, 4K Video over Ethernet w/ Automatic HDMI Sw

Specifications

45 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
ChipsetVS010TX, VS010RX
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Extended display identification data (EDID)Yes
Audio output channels7.1 channels
HDCPYes
HDCP version1.4
LED indicatorsYes
MaterialMetal
Rubber feetYes
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Product colourBlack
HDBaseT certifiedYes

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in3
Number of HDMI outputs1
RJ-11 ports quantity1
DC-in jackYes

Power

AC input voltage100 - 240 V
Input current0.6 A
Output current1.5 A
Power consumption (typical)18 W
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Packaging data

Package width216 mm
Package depth296 mm
Package height69 mm
Package weight173 g

Packaging content

Cables includedPhone (RJ-11)
Included power plug typesANZ, EU, JP, NA, UK
Quick start guideYes
Mounting brackets includedYes
Remote control includedYes

Technical details

Compliance certificatesCE, RoHS

Logistics data

Master (outer) case width410 mm
Master (outer) case length323 mm
Master (outer) case height275 mm
Products per master (outer) case6 pc(s)
