VGA and Audio over Cat5 Extender
Model VGA and Audio over Cat5 ExtenderPart no. ST122UTPAEAN 012303983065
37 specifications
- TypeAV transmitter & receiver
- ColourBlack
- RJ-45 input ports1
- Operating voltage12 V
- Receiver dimensions (WxDxH)83 x 60 x 20 mm
- Compliance certificatesRoHS
Overview
- Type
- AV transmitter & receiver
- Colour
- Black
- RJ-45 input ports
- 1
- Operating voltage
- 12 V
- Receiver dimensions (WxDxH)
- 83 x 60 x 20 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- VGA and Audio over Cat5 Extender
- Part number
- ST122UTPA
- EAN / UPC
- 012303983065, 065030811408
- Also known as
- StarTech.com VGA Video Extender over Cat 5 with Audio - TAA
Specifications
37 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 150 m |
| Daisy chain | No |
| Material | Aluminium |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 |
| Product colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 2 |
| VGA (D-Sub) output ports | 2 |
| Audio input | 2 x 3.5 mm |
| Audio output | 2 x 3.5 mm |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Output current | 0.5 A |
| Power consumption (typical) | 6 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 83 x 60 x 20 mm |
| Receiver weight | 181 g |
| Transmitter dimensions (WxDxH) | 83 x 60 x 20 mm |
| Transmitter weight | 181 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 92 x 242 x 188 mm |
| Package width | 186 mm |
| Package depth | 242 mm |
| Package height | 92 mm |
| Package weight | 1.2 kg |

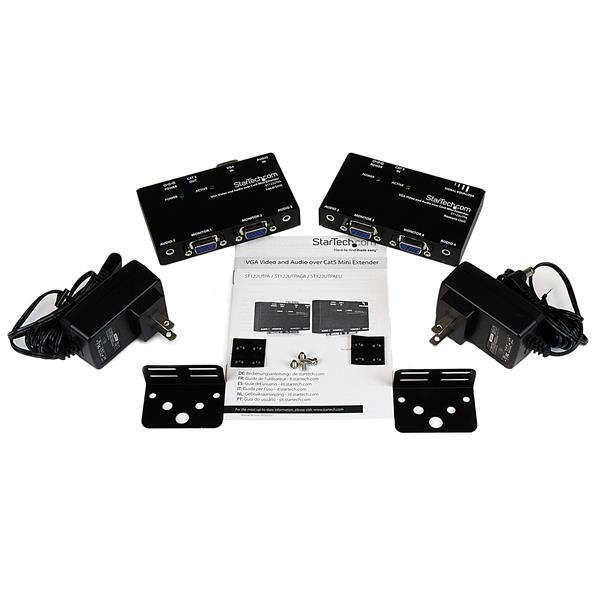

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 410 mm |
| Master (outer) case length | 508 mm |
| Master (outer) case height | 322 mm |
| Products per master (outer) case | 12 pc(s) |
