StarTech.com 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p

StarTech.com 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p

Model ST424HDBTEAN 5054533574380

41 specifications
  • TypeAV transmitter
  • Weight2.3 kg
  • ColourBlack
  • RJ-45 input ports1
  • AC input voltage100-240 V
  • Operating relative humidity (H-H)5 - 90%
See all specifications

Overview

Type
AV transmitter
Weight
2.3 kg
Colour
Black
RJ-45 input ports
1
AC input voltage
100-240 V
Operating relative humidity (H-H)
5 - 90%
Brand
StarTech.com
Category
AV Extender
Model
ST424HDBT
Part number
ST424HDBT
EAN / UPC
5054533574380, 065030852791, 132018256640, 163121460365 +10 more
Also known as
StarTech.com 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p

Specifications

41 specifications in 8 groups

Features

TypeAV transmitter
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5, Cat6
Maximum transfer distance70 m
Audio systemMultichannel
Audio output channels7.1 channels
HDCP & EDID bypassYes
LED indicatorsLAN, Link, Power
MaterialAluminium
Rack mountingYes
Remote control typeIR
Supported video modes720p, 1080p
Product colourBlack
CertificationCE, FCC

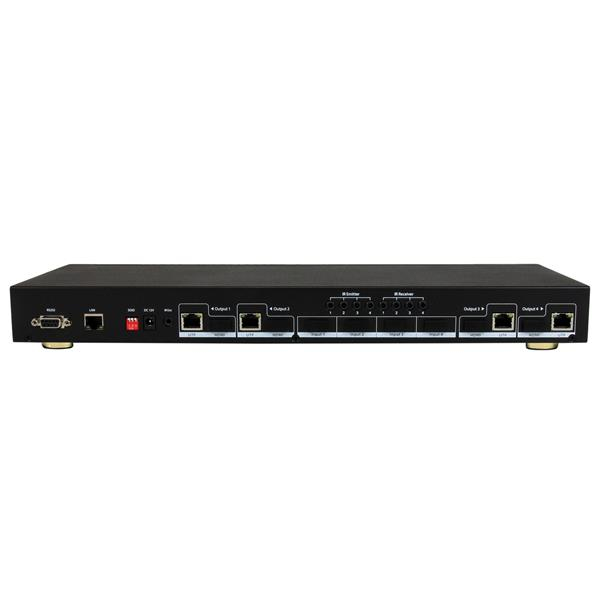

Ports & interfaces

RJ-45 input ports1
RJ-45 output ports5
HDMI in4
Number of HDMI outputs4
Serial interface typeRS-232
Serial ports quantity1
DC-in jackYes

Power

AC input voltage100-240 V
Operating voltage12 V
Input current1.8 A
Output current5 A
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)5 - 90%
Operating temperature (T-T)-5 - 35 °C
Storage temperature (T-T)-5 - 35 °C

Weight & dimensions

Dimensions (WxDxH)170 x 440 x 50 mm
Weight2.3 kg

Packaging data

Package dimensions (WxDxH)325 x 525 x 122 mm
Package width325 mm
Package depth525 mm
Package height122 mm
Package weight4.17 kg

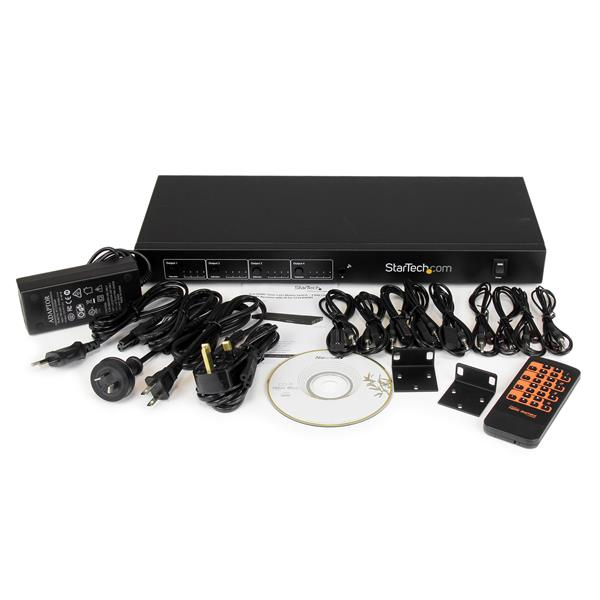

Packaging content

AC adapter includedYes
Quick start guideYes
Mounting brackets includedYes
Remote control includedYes

Technical details

Compliance certificatesRoHS
