StarTech.com HDMI and USB over IP Distribution Kit - 1080p

StarTech.com HDMI and USB over IP Distribution Kit - 1080p

Model ST12MHDLANUEAN 065030862110

46 specifications
  • TypeAV transmitter & receiver
  • Weight1.25 kg
  • ColourBlack
  • RJ-45 input ports1
  • AC input voltage100-240 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Type
AV transmitter & receiver
Weight
1.25 kg
Colour
Black
RJ-45 input ports
1
AC input voltage
100-240 V
Operating relative humidity (H-H)
0 - 80%
Brand
StarTech.com
Category
AV Extender
Model
ST12MHDLANU
Part number
ST12MHDLANU
EAN / UPC
065030862110, 5057103099252
Also known as
StarTech.com HDMI and USB over IP Distribution Kit - 1080p

Specifications

46 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5e
Maximum transfer distance100 m
Maximum refresh rate60 Hz
Audio systemstereo
Daisy chainYes
LED indicatorsLink, Power, Reset
MaterialAluminium
Rack mountingYes
Supported video modes720p, 1080p
Product colourBlack
CertificationCE, FCC, TAA, REACH

Ports & interfaces

RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
USB ports quantity5
USB connector typeUSB Type-A, USB Type-B

Power

AC input voltage100-240 V
Operating voltage5 V
Input current0.6 A
Output current1.5 A
External power adapterYes
Current2 A
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Weight1.25 kg
Receiver dimensions (WxDxH)131 x 131 x 27 mm
Transmitter dimensions (WxDxH)131 x 131 x 27 mm

Packaging data

Package width367 mm
Package depth238 mm
Package height76 mm
Package weight2.2 kg

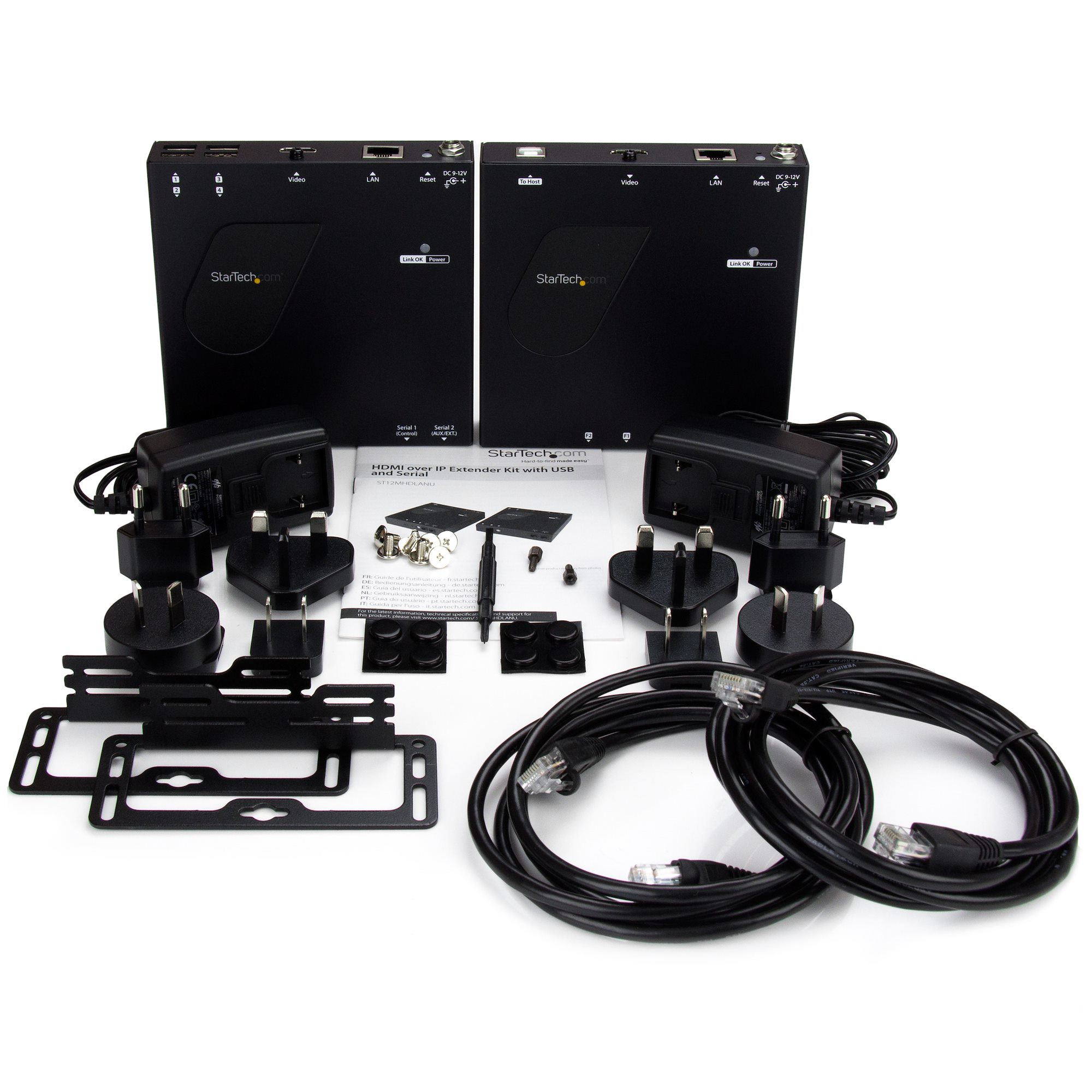

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Quick start guideYes
Mounting brackets includedYes

Technical details

Compliance certificatesRoHS
Audio supportYes

Logistics data

Master (outer) case width390 mm
Master (outer) case length491 mm
Master (outer) case height268 mm
Products per master (outer) case6 pc(s)
