4K HDMI over IP Receiver for ST12MHDLAN4K, IP Extender with Video Control App, Support for AVoIP Video Wall - TAA
Model ST12MHDLAN4REAN 065030868969
47 specifications
- ConnectivityWired
- TypeAV receiver
- Weight594 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 594 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- ST12MHDLAN4R
- Part number
- ST12MHDLAN4R
- EAN / UPC
- 065030868969
- Also known as
- StarTech.com 4K HDMI over IP Receiver for ST12MHDLAN4K, IP Extender with Video Control App, Support for AVoIP Video Wall - TAA
Specifications
47 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 30 Hz |
| Audio system | stereo |
| Daisy chain | Yes |
| Material | Aluminium |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080p, 2160p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| Number of HDMI outputs | 1 |
| Audio input | 3.5mm |
| Audio output | 3.5mm |
| RJ-11 ports quantity | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 117 mm |
| Depth | 131 mm |
| Height | 30 mm |
| Weight | 594 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 211 mm |
| Package depth | 297 mm |
| Package height | 67 mm |
| Package weight | 1.2 kg |

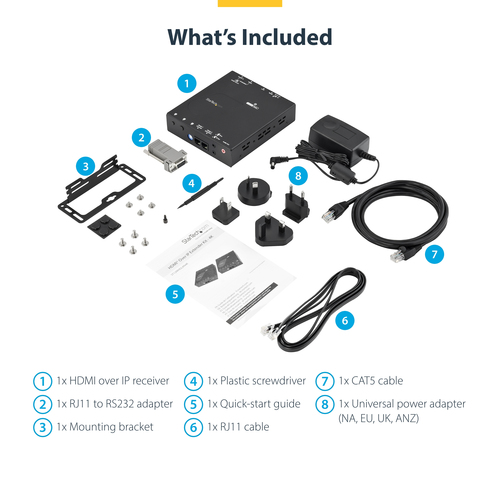

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 326 mm |
| Master (outer) case length | 402 mm |
| Master (outer) case height | 262 mm |
| Products per master (outer) case | 6 pc(s) |
