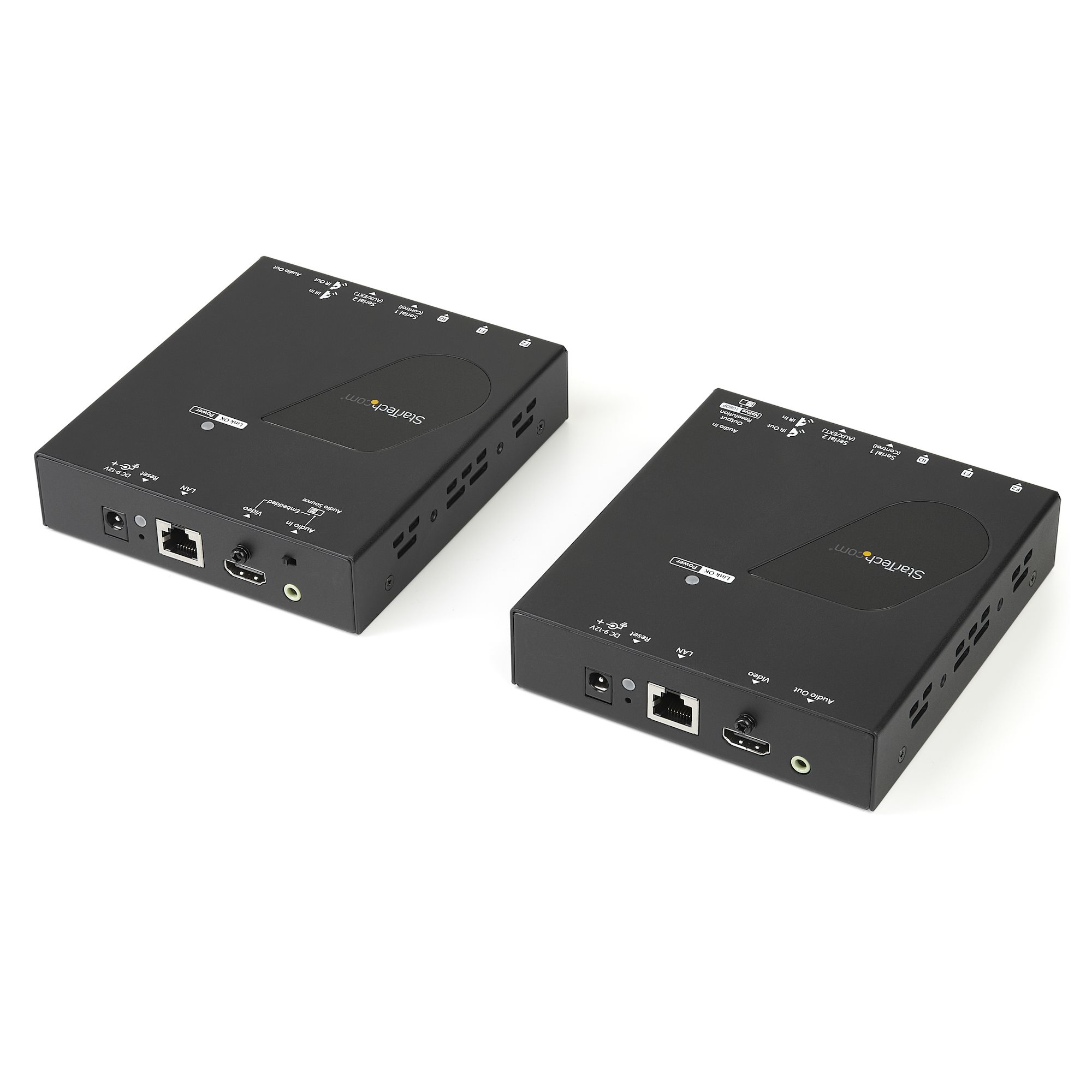

StarTech.com 4K HDMI over IP Extender Kit with Video Control App, Scalable AV over IP with support for AVoIP Video Wall
StarTech.com

4K HDMI over IP Extender Kit with Video Control App, Scalable AV over IP with support for AVoIP Video Wall

Model ST12MHDLAN4KEAN 065030868372

53 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)0 - 80%
  • Receiver dimensions (WxDxH)117 x 130 x 30 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
0 - 80%
Receiver dimensions (WxDxH)
117 x 130 x 30 mm
Brand
StarTech.com
Category
AV Extender
Model
ST12MHDLAN4K
Part number
ST12MHDLAN4K
EAN / UPC
065030868372
Also known as
StarTech.com 4K HDMI over IP Extender Kit with Video Control App, Scalable AV over IP with support for AVoIP Video Wall

Specifications

53 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e
Maximum transfer distance100 m
Maximum refresh rate30 Hz
Audio systemstereo
Daisy chainYes
LED indicatorsLink, Power, Reset
MaterialAluminium
Rack mountingYes
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Supported video modes720p, 1080p, 2160p
Product colourBlack

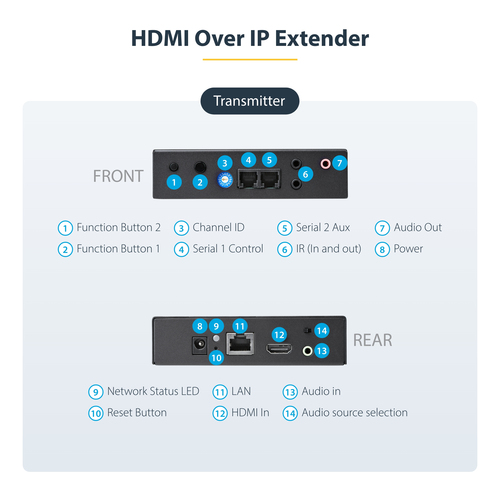

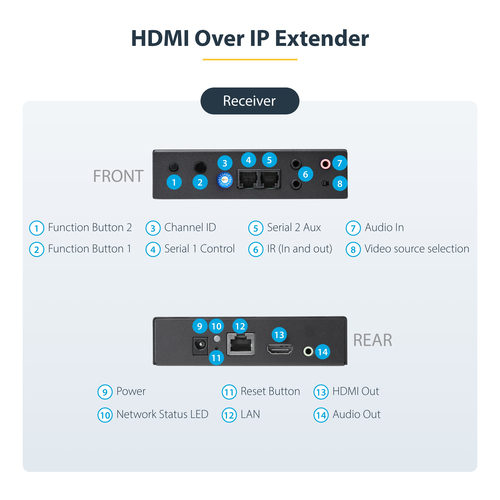

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
Audio input2 x 3.5mm
Audio output2 x 3.5mm
RJ-11 ports quantity4
Remote (IR) input2
Remote (IR) output2

Power

AC input voltage100 - 240 V
Input current0.6 A
Operating voltage (transmitter)12 V
Operating voltage (receiver)12 V
Output current1.5 A
Power consumption (typical)18 W
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)117 x 130 x 30 mm
Receiver weight592 g
Transmitter dimensions (WxDxH)117 x 130 x 30 mm
Transmitter weight592 g

Packaging data

Package width239 mm
Package depth369 mm
Package height79 mm
Package weight2.3 kg

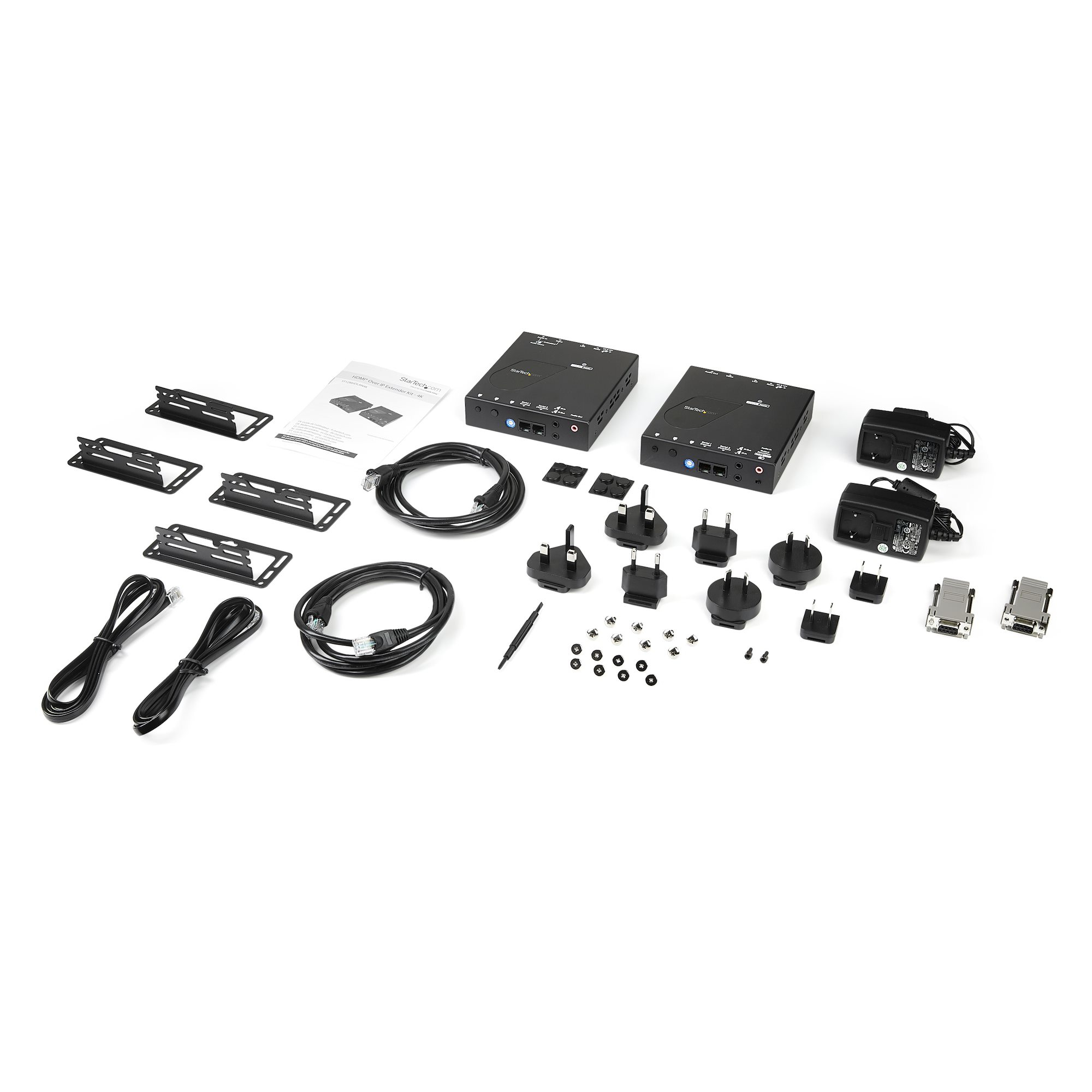

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45), Phone (RJ-11)
Included power plug typesANZ, EU, NA, UK
Quick start guideYes
Mounting brackets includedYes

Technical details

Compliance certificatesCE, RoHS
Audio supportYes
Sustainability complianceYes

Logistics data

Master (outer) case width390 mm
Master (outer) case length498 mm
Master (outer) case height272 mm
Products per master (outer) case6 pc(s)
