StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - TAA
StarTech.com

HDMI over IP Extender Kit with Video Wall Support - 1080p - TAA

Model ST12MHDLAN2KEAN 065030878456

53 specifications
  • TypeAV transmitter & receiver
  • Weight1.2 kg
  • ColourBlack
  • RJ-45 input ports1
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Type
AV transmitter & receiver
Weight
1.2 kg
Colour
Black
RJ-45 input ports
1
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
0 - 80%
Brand
StarTech.com
Category
AV Extender
Model
ST12MHDLAN2K
Part number
ST12MHDLAN2K
EAN / UPC
065030878456
Also known as
StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - TAA

Specifications

53 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance100 m
Maximum refresh rate60 Hz
Audio output channels7.1 channels
Daisy chainYes
LED indicatorsLink, Network, Power, Status
Rack mountingYes
Rubber feetYes
Supported graphics resolutions1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Product colourBlack

Ports & interfaces

RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
Audio input2 x 3.5 mm
Audio output2 x 3.5 mm
RJ-11 ports quantity4

Power

AC input voltage100 - 240 V
Operating voltage12 V
Input current0.6 A
Output current1.5 A
Power consumption (typical)10 W
External power adapterYes
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Width118 mm
Depth131 mm
Height31 mm
Weight1.2 kg

Packaging data

Package width236 mm
Package depth366 mm
Package height76 mm
Package weight2.3 kg

Packaging content

AC adapter includedYes

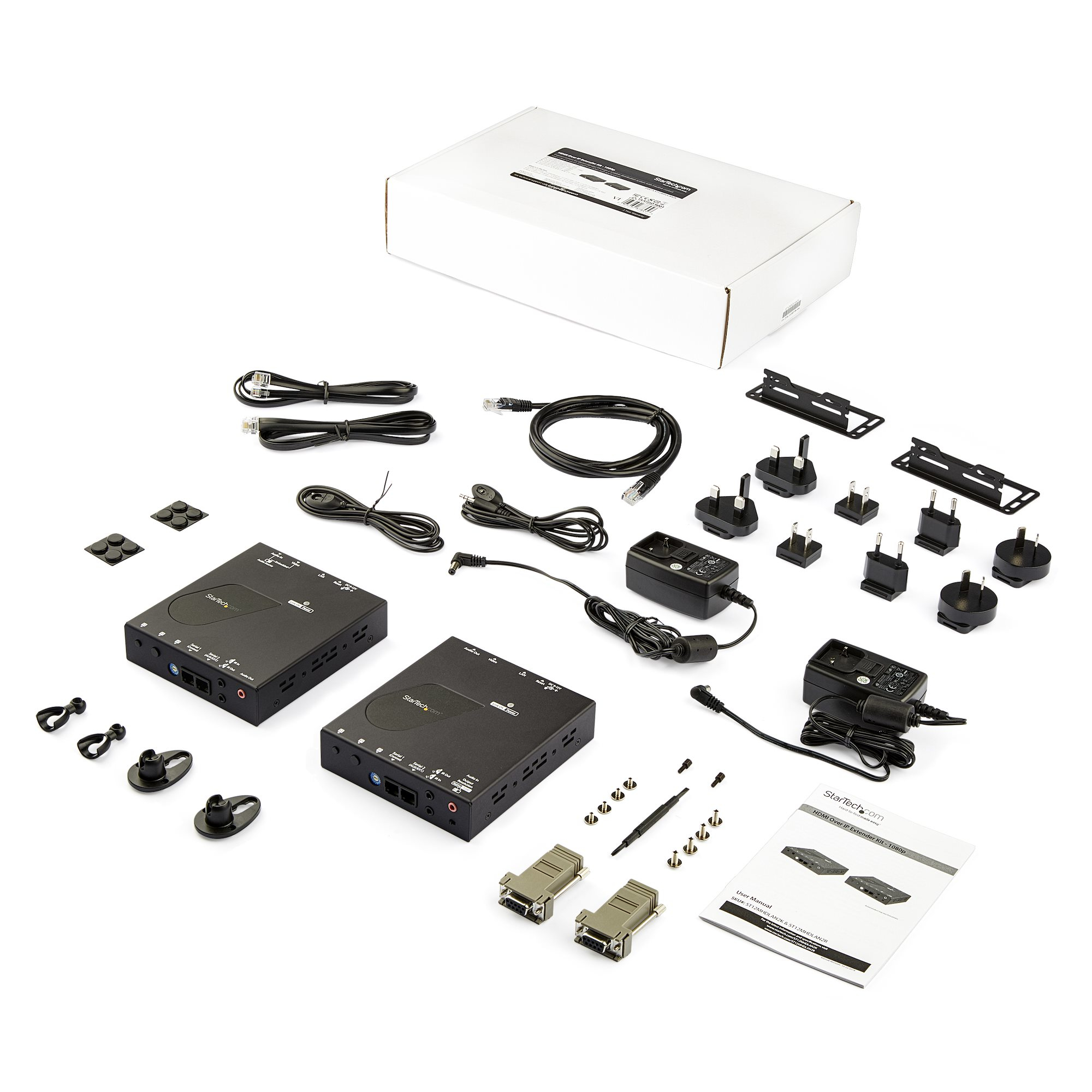

Cables includedLAN (RJ-45), Phone (RJ-11)
Included power plug typesANZ, EU, JP, NA, UK, US
ManualYes
IR blaster includedYes
IR receiver includedYes
Mounting kitYes

Technical details

Compliance certificatesCE, RoHS
Sustainability complianceYes

Logistics data

Master (outer) case width390 mm
Master (outer) case length498 mm
Master (outer) case height266 mm
Products per master (outer) case6 pc(s)
