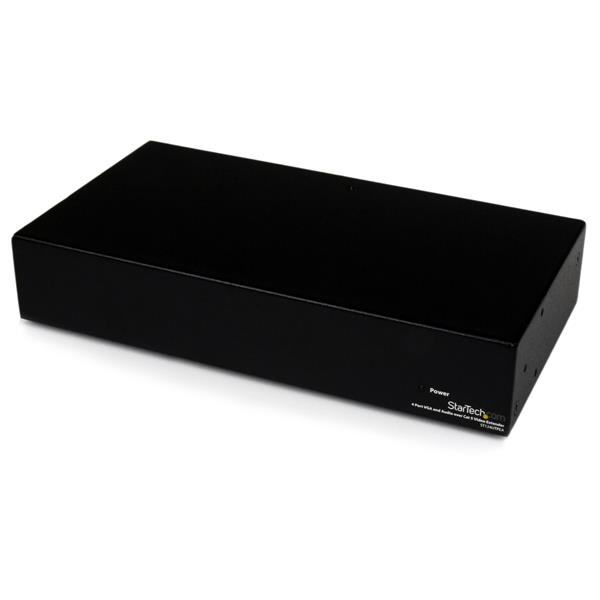

8 Port VGA and Audio over Cat 5 Video Extender
Model ST128UTPEAEAN 5054484686620
32 specifications
- TypeAV repeater
- Weight660 g
- ColourBlack
- RJ-45 output ports8
- Operating voltage12 V
- Operating relative humidity (H-H)5 - 90%
Overview
- Type
- AV repeater
- Weight
- 660 g
- Colour
- Black
- RJ-45 output ports
- 8
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 5 - 90%
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- ST128UTPEA
- Part number
- ST128UTPEA
- EAN / UPC
- 5054484686620, 011411231310, 012303772218, 065030830386 +2 more
- Also known as
- StarTech.com 8 Port VGA and Audio over Cat 5 Video Extender
Specifications
32 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV repeater |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5, Cat5e |
| Maximum transfer distance | 300 m |
| Daisy chain | Yes |
| Plug and Play | Yes |
| Supported graphics resolutions | 1024 x 768 (XGA), 1440 x 900, 1920 x 1200 (WUXGA) |
| Supported video modes | 720p, 1080p |
| Product colour | Black |
| Certification | CE, FCC |

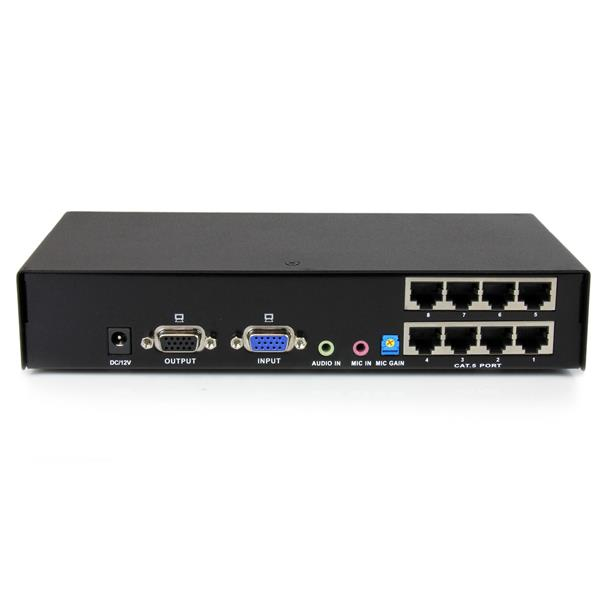

Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 8 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 2 x 3.5 mm |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Output current | 0.6 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 119 x 220 x 41 mm |
| Weight | 660 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 70 x 307 x 229 mm |
| Package weight | 1.9 kg |

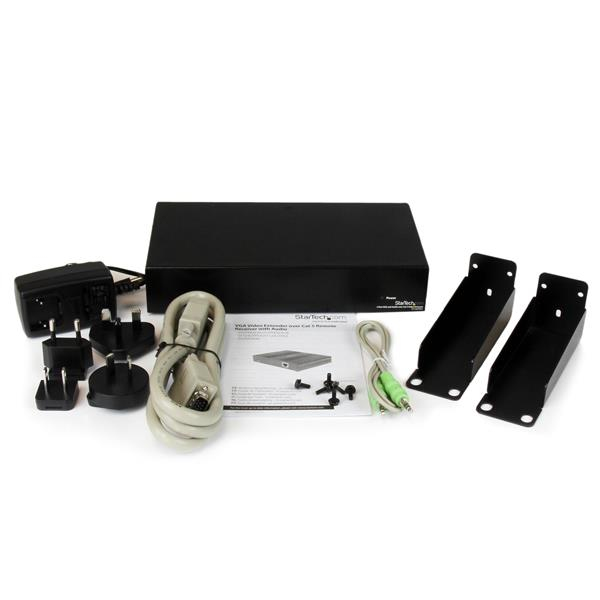

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Audio (3.5mm), VGA |
| Manual | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Audio support | Yes |
