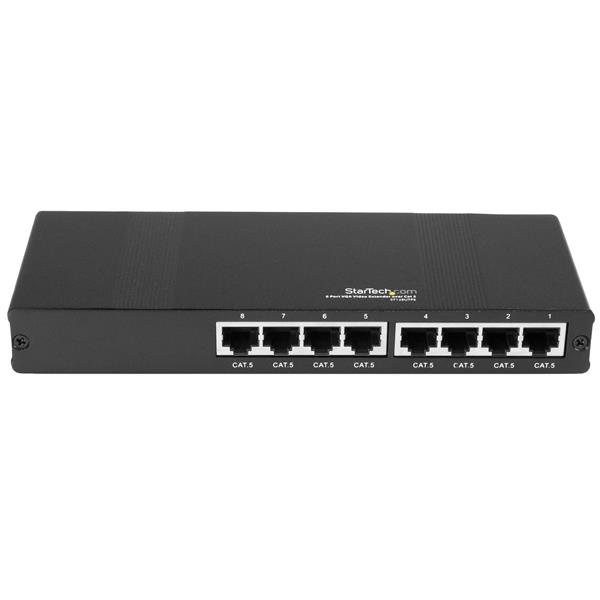

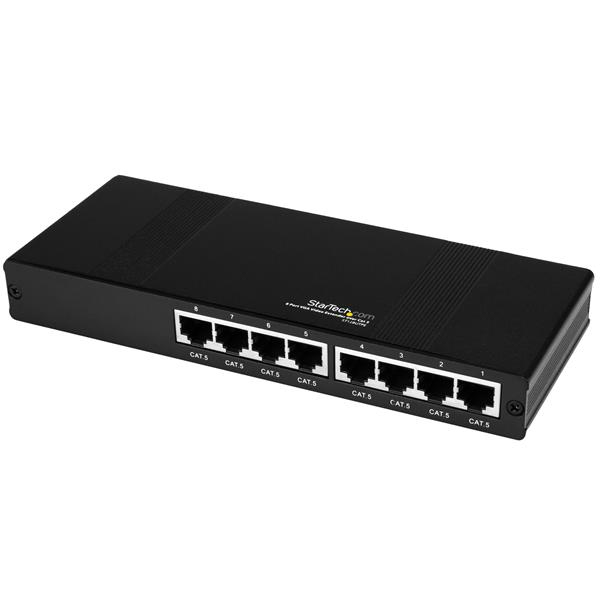

8 Port VGA Video Extender over Cat 5 (UTPE Series)
Model ST128UTPEEAN 851975704444
28 specifications
- TypeAV transmitter
- Weight247 g
- ColourBlack
- Ethernet LANYes
- AC input voltage120 V
- Dimensions (WxDxH)200 x 83.5 x 29.5 mm
Overview
- Type
- AV transmitter
- Weight
- 247 g
- Colour
- Black
- Ethernet LAN
- Yes
- AC input voltage
- 120 V
- Dimensions (WxDxH)
- 200 x 83.5 x 29.5 mm
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- ST128UTPE
- Part number
- ST128UTPE
- EAN / UPC
- 851975704444, 011411212272, 065030817578, 163120563111 +4 more
- Also known as
- StarTech.com 8 Port VGA Video Extender over Cat 5 (UTPE Series)
Specifications
28 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1280 x 1024 pixels |
| Cable types supported | Cat5, Cat5e |
| Maximum transfer distance | 300 m |
| Daisy chain | Yes |
| LED indicators | Power |
| Material | Aluminium |
| Product colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| RJ-45 output ports | 8 |

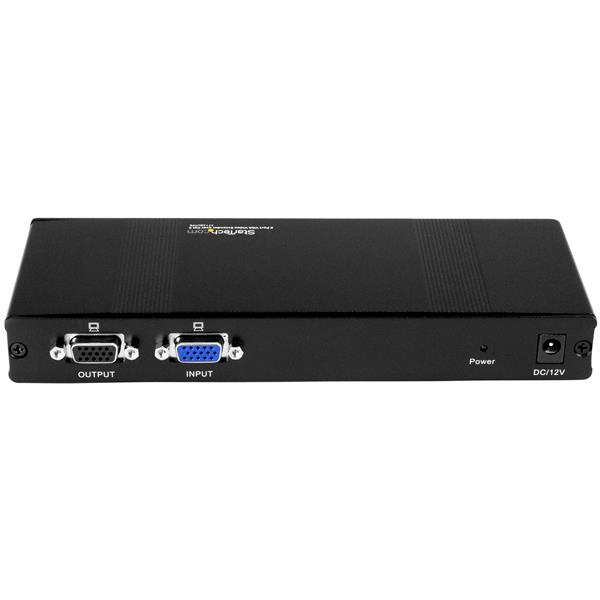

| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 120 V |
| Operating voltage | 12 V |
| Output current | 0.6 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 200 x 83.5 x 29.5 mm |
| Weight | 247 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 65 x 298 x 190 mm |
| Package height | 19 mm |
| Package weight | 1.1 kg |

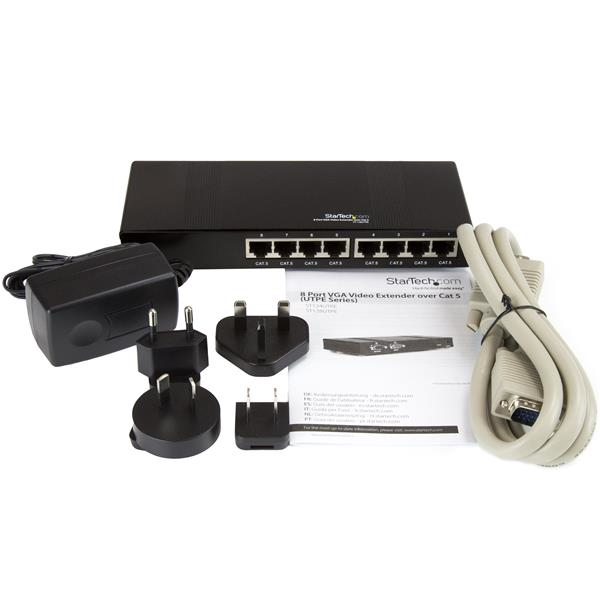

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | VGA |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Audio support | No |
