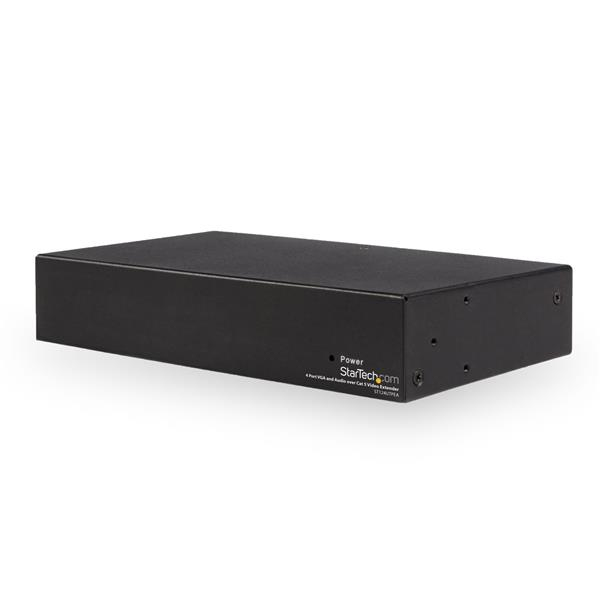

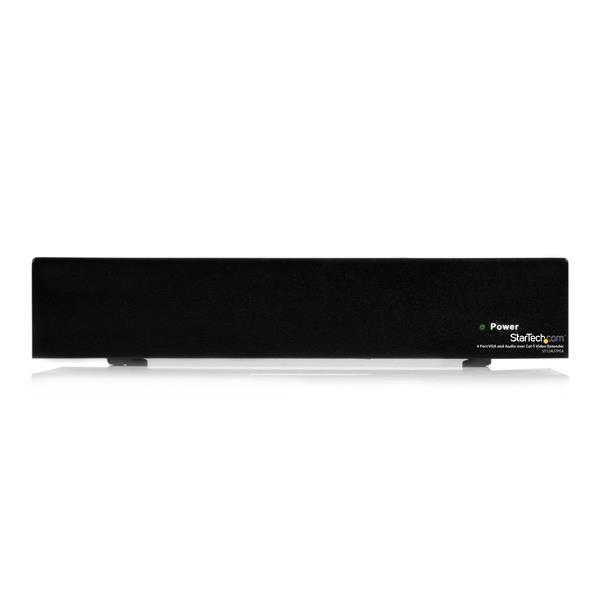

4 Port VGA and Audio over Cat 5 Video Extender
Model ST124UTPEAEAN 5054629101483
32 specifications
- TypeAV transmitter
- Weight660 g
- ColourBlack
- RJ-45 output ports4
- Operating voltage12 V
- Operating relative humidity (H-H)5 - 90%
Overview
- Type
- AV transmitter
- Weight
- 660 g
- Colour
- Black
- RJ-45 output ports
- 4
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 5 - 90%
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- ST124UTPEA
- Part number
- ST124UTPEA
- EAN / UPC
- 5054629101483, 012300173889, 065030830393, 103824434041 +4 more
- Also known as
- StarTech.com 4 Port VGA and Audio over Cat 5 Video Extender
Specifications
32 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 300 m |
| Audio system | stereo |
| Daisy chain | Yes |
| Material | Aluminium |
| Supported graphics resolutions | 1024 x 768 (XGA), 1440 x 900, 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 4 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 2 x 3.5 mm |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Output current | 0.6 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 119 x 220 x 41 mm |
| Weight | 660 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 70 x 310 x 255 mm |
| Package weight | 1.8 kg |

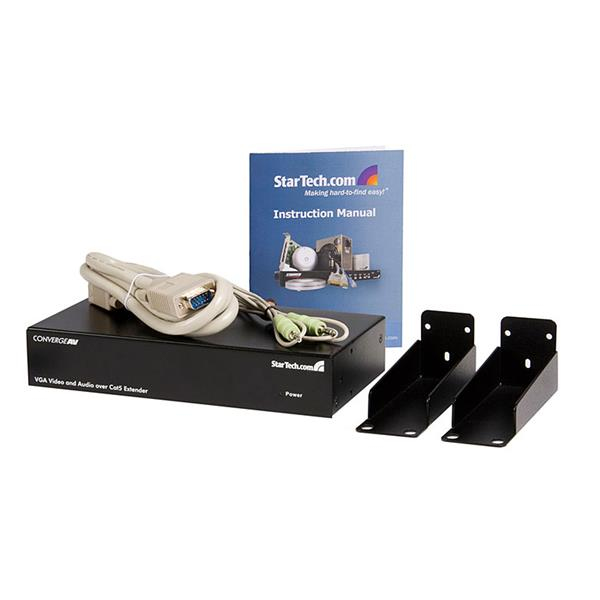

Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), VGA |
| Manual | Yes |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

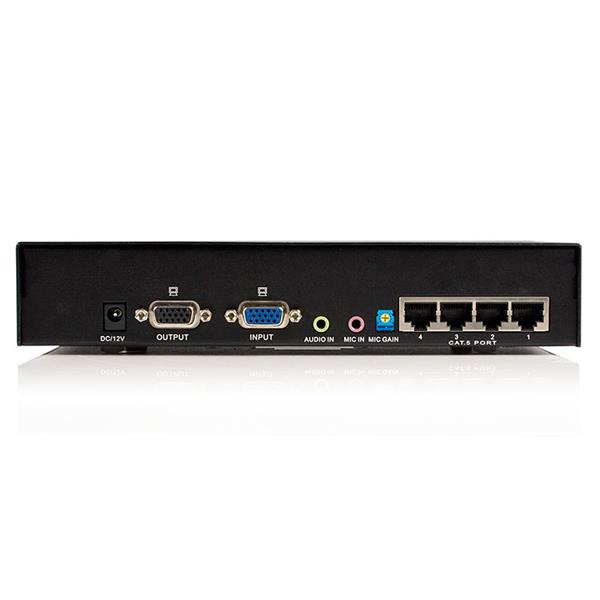

| Connector(s) | High Density 15 pin, 4x RJ45, 3.5mm |
| Audio support | Yes |
| DC-in requirements | 12V |
