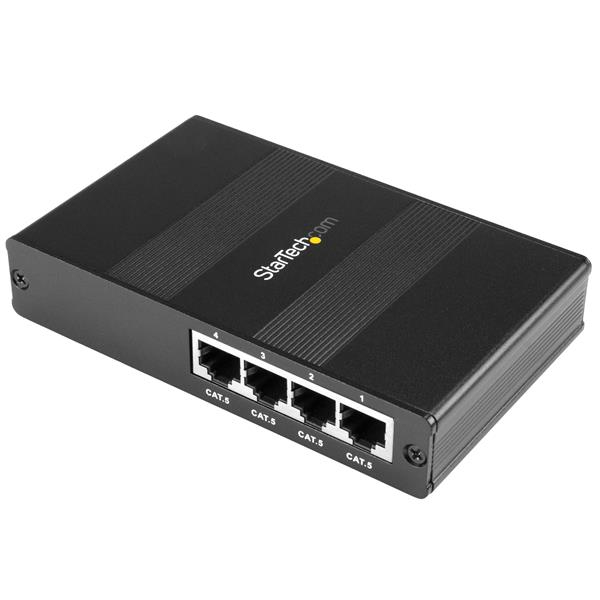

4 Port VGA Video Extender over Cat 5 (UTPE Series)
Model ST124UTPEEAN 872182621997
24 specifications
- TypeAV transmitter
- Weight247 g
- ColourBlack
- RJ-45 output ports4
- AC input voltage120 V
- Dimensions (WxDxH)130 x 83.5 x 29.5 mm
Overview
- Type
- AV transmitter
- Weight
- 247 g
- Colour
- Black
- RJ-45 output ports
- 4
- AC input voltage
- 120 V
- Dimensions (WxDxH)
- 130 x 83.5 x 29.5 mm
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- ST124UTPE
- Part number
- ST124UTPE
- EAN / UPC
- 872182621997, 065030817585, 132018258668, 141291056618 +6 more
- Also known as
- StarTech.com 4 Port VGA Video Extender over Cat 5 (UTPE Series)
Specifications
24 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 300 m |
| Daisy chain | Yes |
| Material | Steel |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA) |
| Product colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|

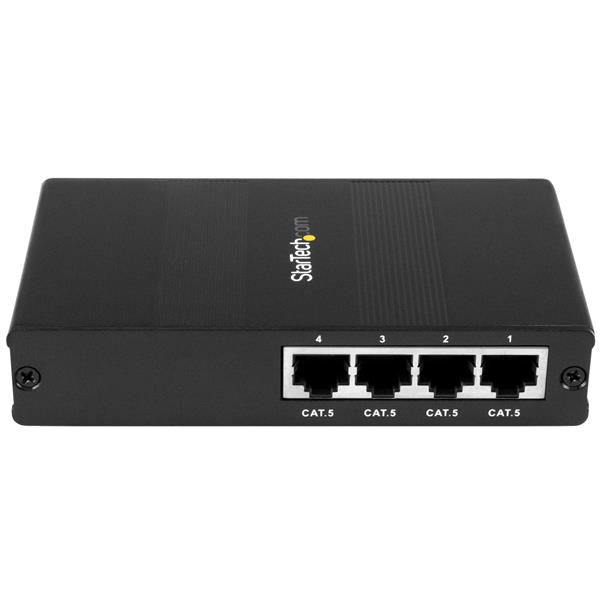

| RJ-45 output ports | 4 |

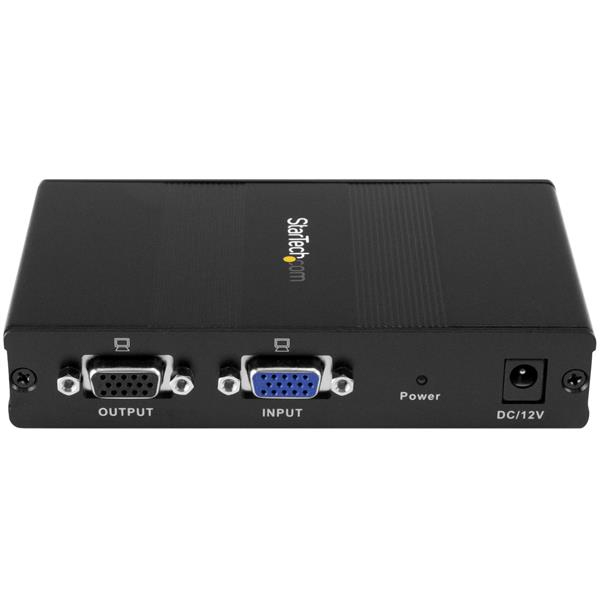

| VGA (D-Sub) output ports | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 120 V |
| Operating voltage | 12 V |
| Output current | 0.6 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 130 x 83.5 x 29.5 mm |
| Weight | 247 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 67 x 226 x 189 mm |
| Package weight | 900 g |

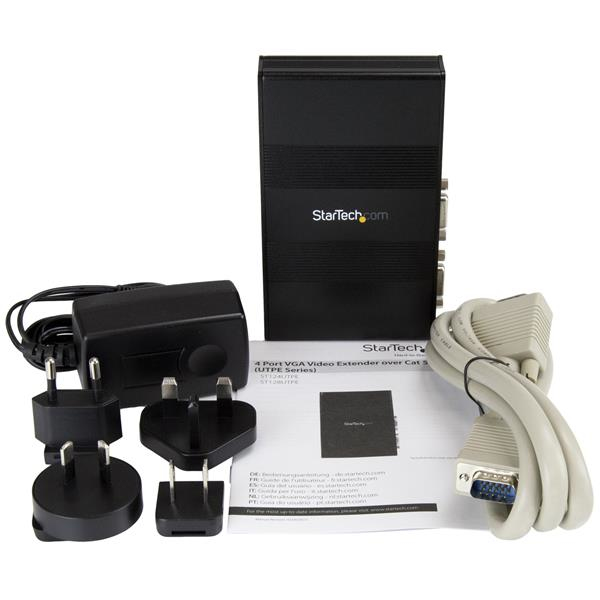

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | VGA |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Audio support | No |
