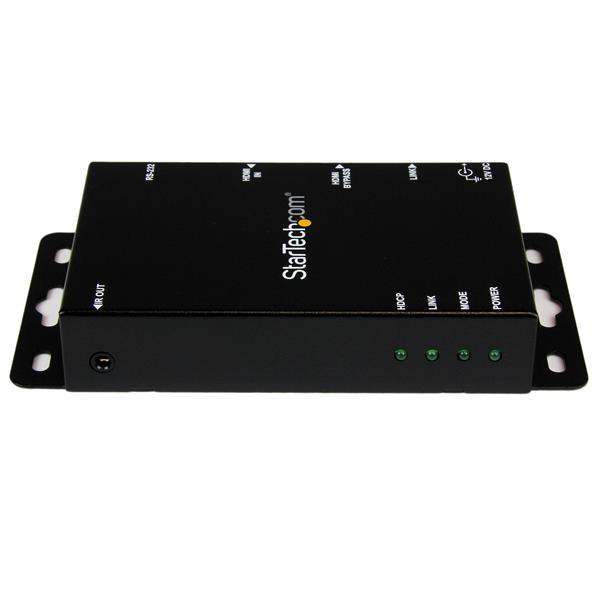

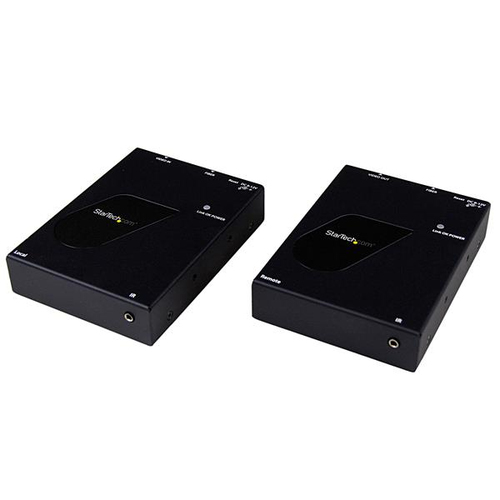

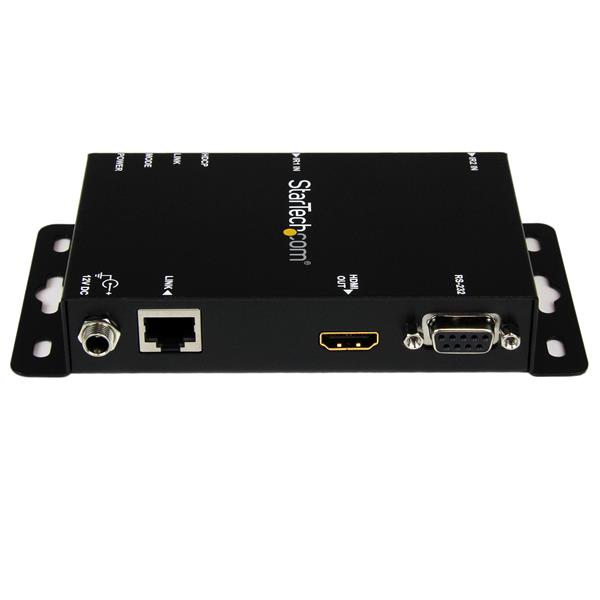

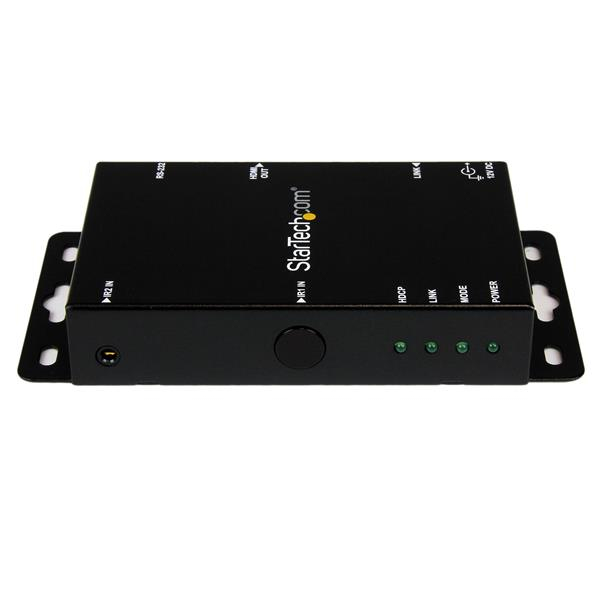

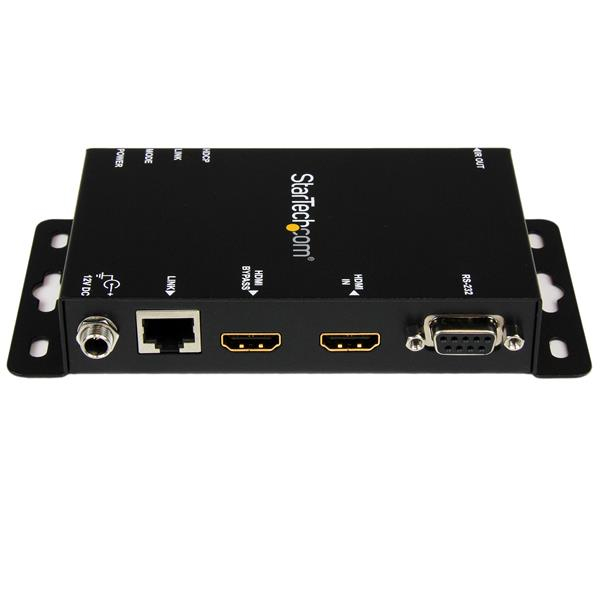

StarTech.com HDMI over CAT5e HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m)

StarTech.com HDMI over CAT5e HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m)

Model ST121UTPHD2EAN 065030848480

54 specifications
  • TypeAV transmitter & receiver
  • ColourBlack
  • RJ-45 input ports1
  • AC input voltage110-240 V
  • Operating relative humidity (H-H)0 - 95%
  • Receiver dimensions (WxDxH)80 x 150 x 25 mm
See all specifications

Overview

Type
AV transmitter & receiver
Colour
Black
RJ-45 input ports
1
AC input voltage
110-240 V
Operating relative humidity (H-H)
0 - 95%
Receiver dimensions (WxDxH)
80 x 150 x 25 mm
Brand
StarTech.com
Category
AV Extender
Model
ST121UTPHD2
Part number
ST121UTPHD2
EAN / UPC
065030848480, 851975720581
Also known as
StarTech.com HDMI over CAT5e HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m)

Specifications

54 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5, Cat5e, Cat6
Maximum transfer distance100 m
Baud rate115.2 Kbit/s
Carrier frequency38 kHz
Daisy chainNo
HDCPYes
LED indicatorsLAN, Power
MaterialSteel
Plug and PlayYes
Remote control typeIR
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Supported video modes720p, 1080p, 2160p
Product colourBlack
CertificationCE, FCC

Ports & interfaces

RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs2
RS-232 input ports1
RS-232 output ports1
Remote (IR) input2
Remote (IR) output1
DC-in jackYes

Power

AC input voltage110-240 V
Operating voltage12 V
Input current0.6 A
Output current1.24 A
External power adapterYes
Current1.24 A
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 85 °C

Weight & dimensions

Receiver dimensions (WxDxH)80 x 150 x 25 mm
Receiver weight579 g
Transmitter dimensions (WxDxH)80 x 150 x 25 mm
Transmitter weight579 g

Packaging data

Package dimensions (WxDxH)248 x 304 x 66 mm
Package width309 mm
Package depth254 mm
Package height67 mm
Package weight1.5 kg

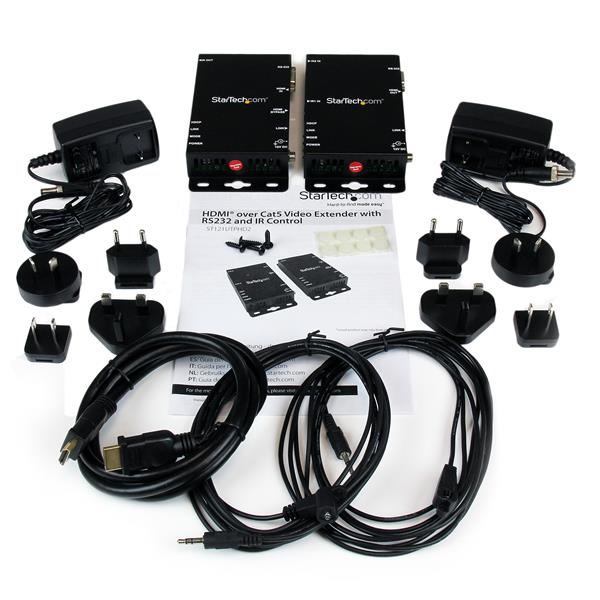

Packaging content

AC adapter includedYes
Cables includedHDMI, IR
ManualYes
IR receiver includedYes

Technical details

Compliance certificatesRoHS
Audio supportYes

Logistics data

Master (outer) case width331 mm
Master (outer) case length366 mm
Master (outer) case height291 mm
Products per master (outer) case5 pc(s)
