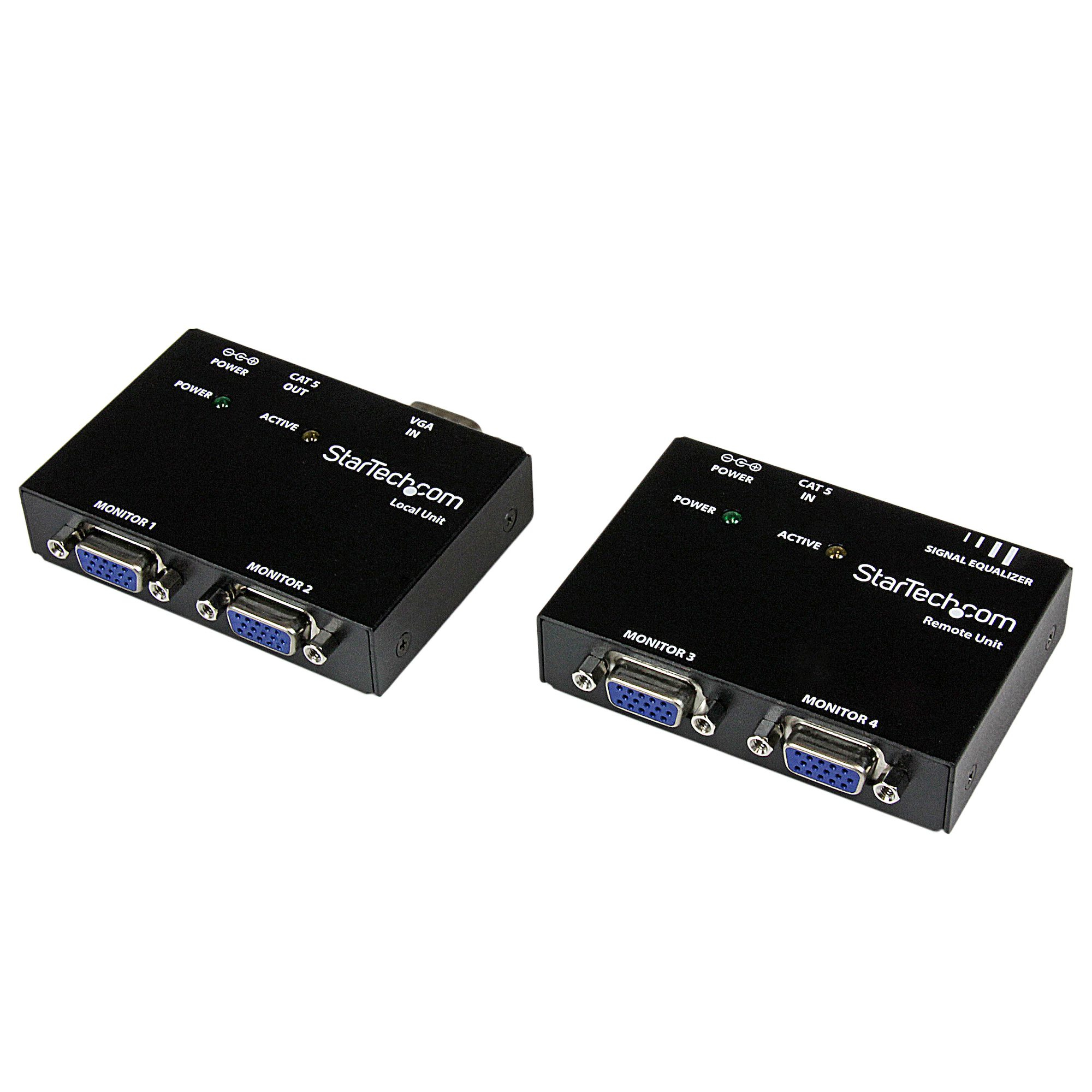

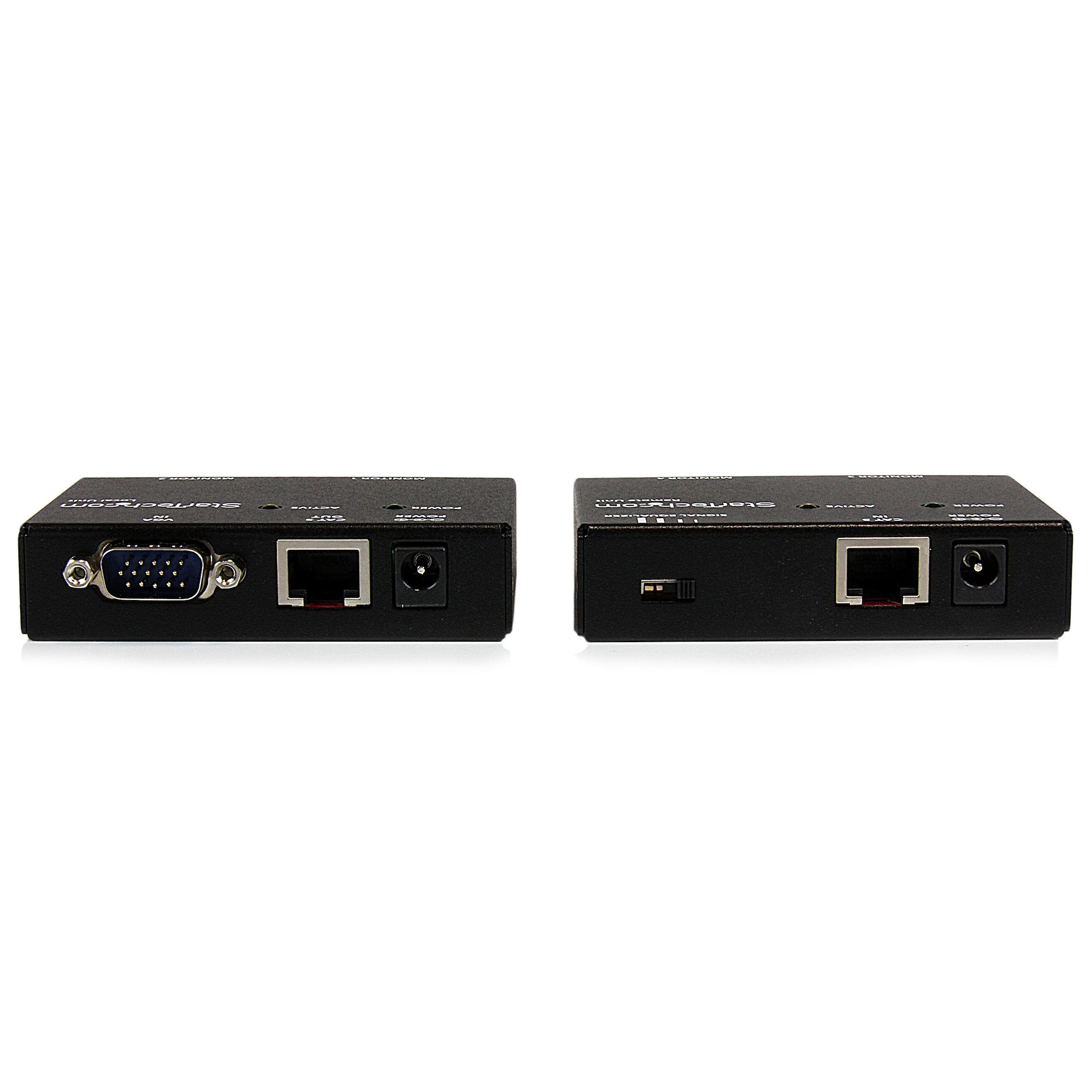

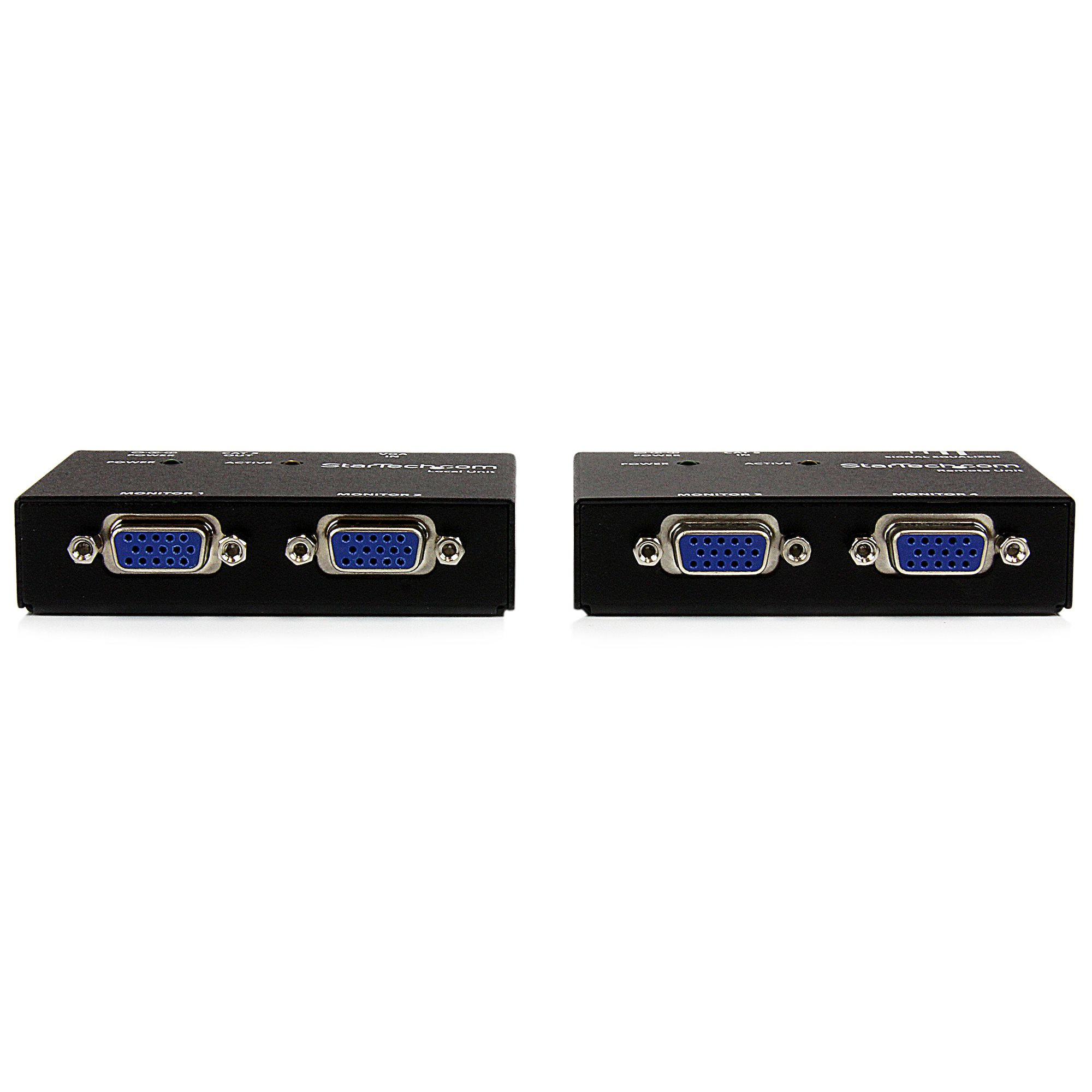

VGA Video Extender over Cat5 / UTP
Model ST121UTPGBEAN 065030809153
32 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- AC input voltage100 - 240 V
- Compliance certificatesCE, RoHS
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- ST121UTPGB
- Part number
- ST121UTPGB
- EAN / UPC
- 065030809153, 5051749379952, 5054533069015, 5054629049747
- Also known as
- StarTech.com VGA Video Extender over Cat5 / UTP
Specifications
32 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1600 x 1200 pixels |
| Cable types supported | Cat5, Cat5e |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 85 Hz |
| Bandwidth | 212 MHz |
| Daisy chain | No |
| Material | Aluminium |
| Rubber feet | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 4 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.2 A |
| Output current | 0.6 A |
| Power consumption (typical) | 5.4 W |
| Power plug type | Type M |
Packaging data
| Specification | Value |
|---|---|
| Package width | 20 mm |
| Package depth | 125 mm |
| Package height | 223 mm |
| Package weight | 1.66 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 514 mm |
| Master (outer) case length | 408 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 150 pc(s) |
