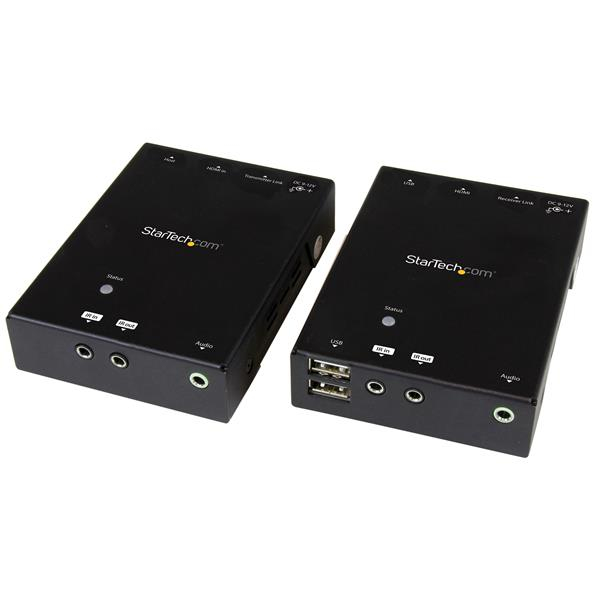

StarTech.com HDMI over CAT5e HDBaseT Extender with USB Hub - 295 ft (90m) - Up to 4K

StarTech.com HDMI over CAT5e HDBaseT Extender with USB Hub - 295 ft (90m) - Up to 4K

Model ST121HDBTUEAN 065030863223

50 specifications
  • TypeAV transmitter & receiver
  • RJ-45 output ports1
  • AC input voltage100-240 V
  • Operating relative humidity (H-H)0 - 80%
  • Receiver dimensions (WxDxH)75 x 102 x 24 mm
  • Compliance certificatesRoHS
See all specifications

Overview

Type
AV transmitter & receiver
RJ-45 output ports
1
AC input voltage
100-240 V
Operating relative humidity (H-H)
0 - 80%
Receiver dimensions (WxDxH)
75 x 102 x 24 mm
Compliance certificates
RoHS
Brand
StarTech.com
Category
AV Extender
Model
ST121HDBTU
Part number
ST121HDBTU
EAN / UPC
065030863223
Also known as
StarTech.com HDMI over CAT5e HDBaseT Extender with USB Hub - 295 ft (90m) - Up to 4K

Specifications

50 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance100 m
Audio systemMultichannel
Audio output channels7.1 channels
Daisy chainNo
Plug and PlayYes
Remote control typeIR
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes720p, 1080p, 2160p
CertificationFCC, CE

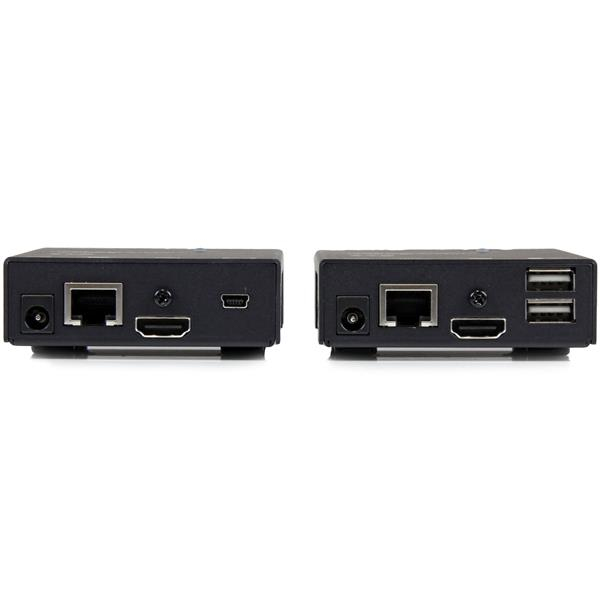

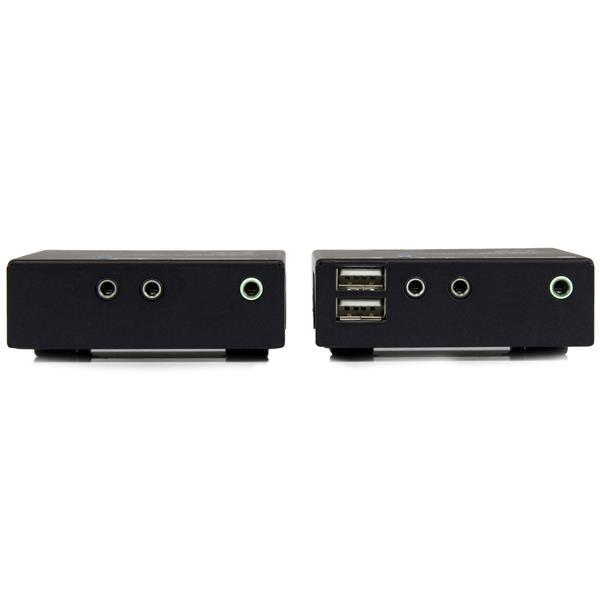

Ports & interfaces

RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
USB ports quantity4
USB version2.0
USB connector typeUSB Type-A
Audio input1
Audio output1
DC-in jackYes

Power

AC input voltage100-240 V
Operating voltage12 V
Output current1.5 A
External power adapterYes
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)75 x 102 x 24 mm
Receiver weight306 g
Transmitter dimensions (WxDxH)75 x 102 x 24 mm
Transmitter weight306 g

Packaging data

Package dimensions (WxDxH)244 x 292 x 84 mm
Package width245 mm
Package depth300 mm
Package height85 mm
Package weight1.58 kg

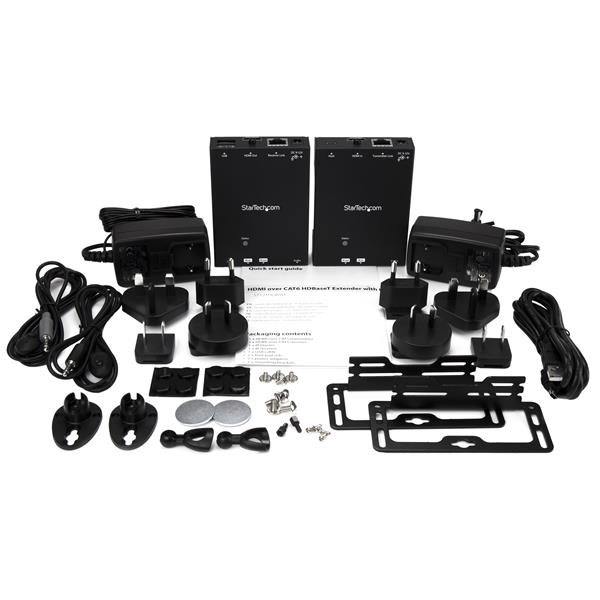

Packaging content

AC adapter includedYes
Cables includedUSB
Quick start guideYes
IR blaster includedYes
IR receiver includedYes
Mounting brackets includedYes

Technical details

Compliance certificatesRoHS
Audio supportYes

Logistics data

Master (outer) case width318 mm
Master (outer) case length506 mm
Master (outer) case height298 mm
Products per master (outer) case6 pc(s)
