StarTech.com HDMI over CAT5e Extender with IR and Serial - HDBaseT Extender - 4K - TAA

StarTech.com HDMI over CAT5e Extender with IR and Serial - HDBaseT Extender - 4K - TAA

Model ST121HDBTLEAN 065030868396

51 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • AC input voltage100 - 240 V
  • Receiver dimensions (WxDxH)66 x 92 x 27 mm
  • Compliance certificatesRoHS
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
AC input voltage
100 - 240 V
Receiver dimensions (WxDxH)
66 x 92 x 27 mm
Compliance certificates
RoHS
Brand
StarTech.com
Category
AV Extender
Model
ST121HDBTL
Part number
ST121HDBTL
EAN / UPC
065030868396
Also known as
StarTech.com HDMI over CAT5e Extender with IR and Serial - HDBaseT Extender - 4K - TAA

Specifications

51 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance100 m
Maximum refresh rate60 Hz
Audio systemMultichannel
Audio output channels7.1 channels
Daisy chainNo
LED indicatorsStatus
Rubber feetYes
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Supported video modes720p, 1080p
Product colourBlack
HDBaseT certifiedYes
CertificationFCC, CE, TAA

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
RS-232 input ports1
RS-232 output ports1
Remote (IR) input1
Remote (IR) output1
Serial interface typeRS-232

Power

AC input voltage100 - 240 V
Operating voltage12 V
Input current0.6 A
Output current1.5 A
Power consumption (typical)18 W
External power adapterYes
Power plug typeType M

Weight & dimensions

Receiver dimensions (WxDxH)66 x 92 x 27 mm
Receiver weight452 g
Transmitter dimensions (WxDxH)66 x 92 x 27 mm
Transmitter weight452 g

Packaging data

Package width197 mm
Package depth295 mm
Package height75 mm
Package weight1.1 kg

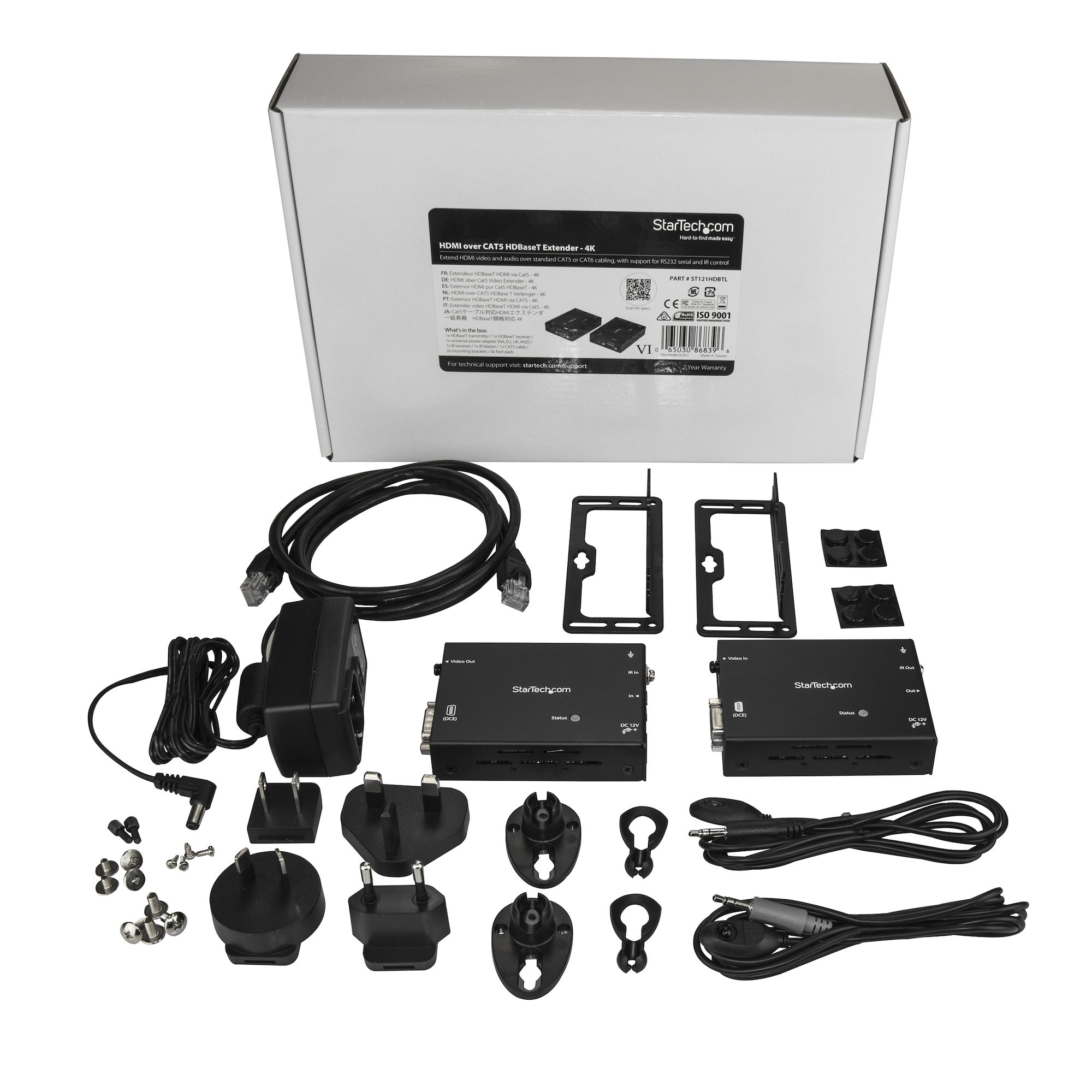

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Included power plug typesANZ, NA, UK
IR blaster includedYes
IR receiver includedYes
Mounting brackets includedYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case width410 mm
Master (outer) case length448 mm
Master (outer) case height334 mm
Products per master (outer) case12 pc(s)
