StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K - TAA
StarTech.com

HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K - TAA

Model ST121HDBTEEAN 7426900762795

51 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight428 g
  • ColourBlack
  • AC input voltage110 - 240 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
428 g
Colour
Black
AC input voltage
110 - 240 V
Operating relative humidity (H-H)
0 - 80%
Brand
StarTech.com
Category
AV Extender
Model
ST121HDBTE
Part number
ST121HDBTE
EAN / UPC
7426900762795, 065030851107, 102213458064, 734911377080 +6 more
Also known as
StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K - TAA

Specifications

51 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Audio systemMultichannel
Audio output channels7.1 channels
Cable length0.1 m
Daisy chainNo
LED indicatorsStatus
MaterialAluminium
Mean time between failures (MTBF)52000 h
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Supported video modes720p, 1080p
Product colourBlack
CertificationCE, FCC, HDBT, TAA

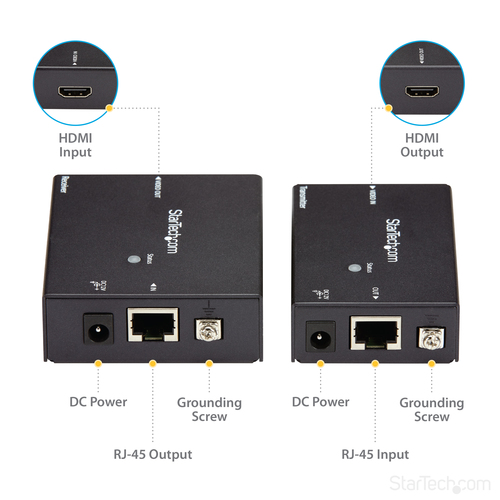

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
DC-in jackYes

Power

AC input voltage110 - 240 V
Operating voltage12 V
Input current0.5 A
Output current1.5 A
Power consumption (typical)3 W
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Width67 mm
Depth80 mm
Height25 mm
Weight428 g

Packaging data

Package width158 mm
Package depth234 mm
Package height70 mm
Package weight1.1 kg

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Included power plug typesAU, EU, NA, UK
ManualYes
Grounding wireYes
Mounting brackets includedYes

Technical details

Compliance certificatesRoHS
Audio supportYes

Logistics data

Master (outer) case width322 mm
Master (outer) case length416 mm
Master (outer) case height264 mm
Products per master (outer) case12 pc(s)
