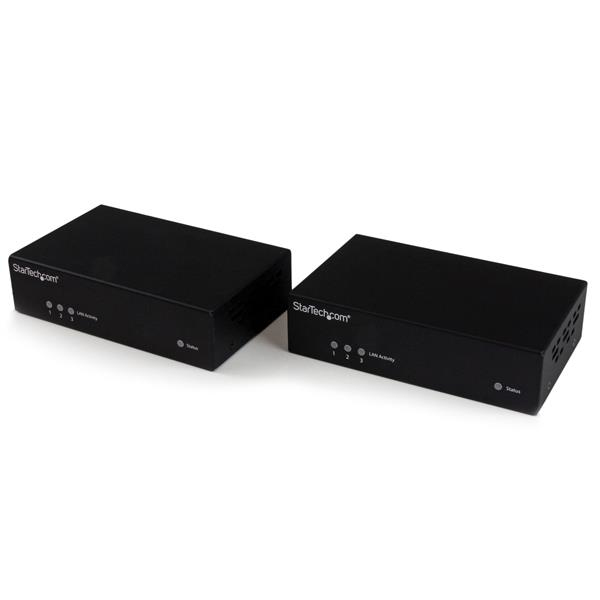

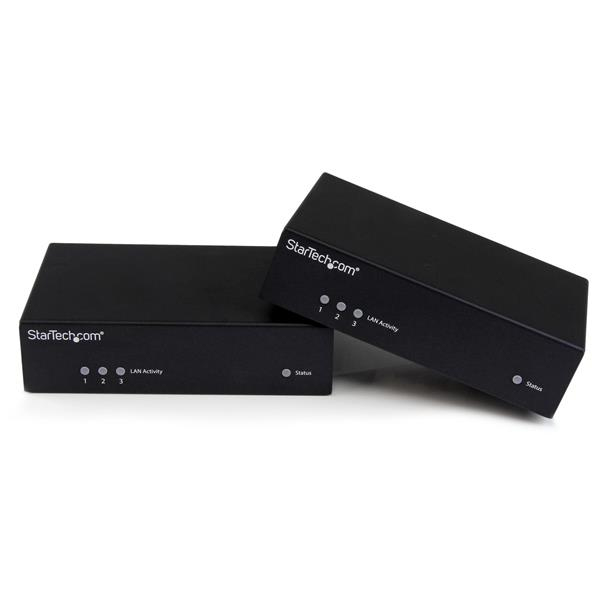

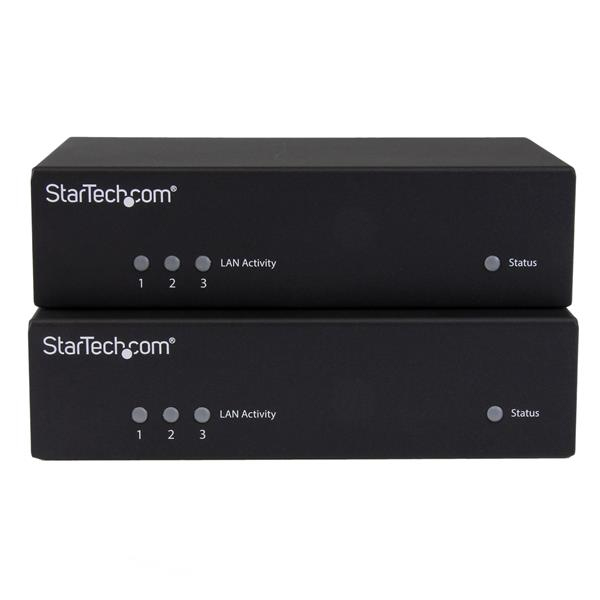

StarTech.com HDMI over CAT5 HDBaseT Extender - Power over Cable - IR - RS232 - 10/100 Ethernet - Ultra HD 4K - 330 ft (100m)

StarTech.com HDMI over CAT5 HDBaseT Extender - Power over Cable - IR - RS232 - 10/100 Ethernet - Ultra HD 4K - 330 ft (100m)

Model ST121HDBT5EAN 5054629416570

57 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • ColourBlack
  • AC input voltage100-240 V
  • Operating relative humidity (H-H)0 - 80%
  • Receiver dimensions (WxDxH)89 x 139 x 37 mm
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Colour
Black
AC input voltage
100-240 V
Operating relative humidity (H-H)
0 - 80%
Receiver dimensions (WxDxH)
89 x 139 x 37 mm
Brand
StarTech.com
Category
AV Extender
Model
ST121HDBT5
Part number
ST121HDBT5
EAN / UPC
5054629416570, 012303266793, 065030855006, 153697147661 +3 more
Also known as
StarTech.com HDMI over CAT5 HDBaseT Extender - Power over Cable - IR - RS232 - 10/100 Ethernet - Ultra HD 4K - 330 ft (100m)

Specifications

57 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5, Cat6
Maximum transfer distance100 m
Maximum refresh rate60 Hz
Audio systemMultichannel
Audio output channels7.1 channels
Daisy chainNo
LED indicatorsLAN, Status
MaterialAluminium
Rack mountingYes
Remote control typeIR
Rubber feetYes
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Supported video modes720p, 1080p
Product colourBlack
CertificationFCC, CE, TAA, HDBT, REACH

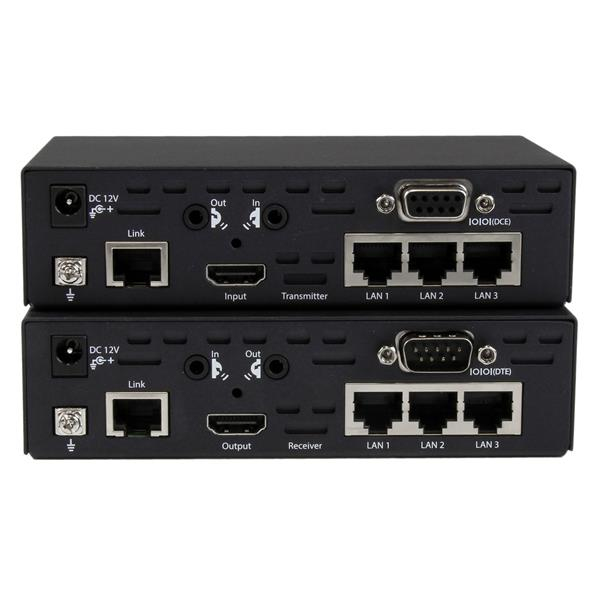

Ports & interfaces

Connectivity technologyWired
Wi-FiNo
BluetoothNo
Near Field Communication (NFC)No
Ethernet LANYes
RJ-45 input ports4
RJ-45 output ports4
HDMI in1
Number of HDMI outputs1
RS-232 input ports1
RS-232 output ports1
Remote (IR) input2
Remote (IR) output2
Serial interface typeRS-232
Serial ports quantity2
DC-in jackYes

Power

AC input voltage100-240 V
Operating voltage12 V
Input current0.5 A
Output current1.5 A
Power consumption (typical)18 W

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH)89 x 139 x 37 mm
Receiver weight859 g
Transmitter dimensions (WxDxH)89 x 139 x 37 mm
Transmitter weight859 g

Packaging data

Package width179 mm
Package depth313 mm
Package height74 mm
Package weight1.64 kg

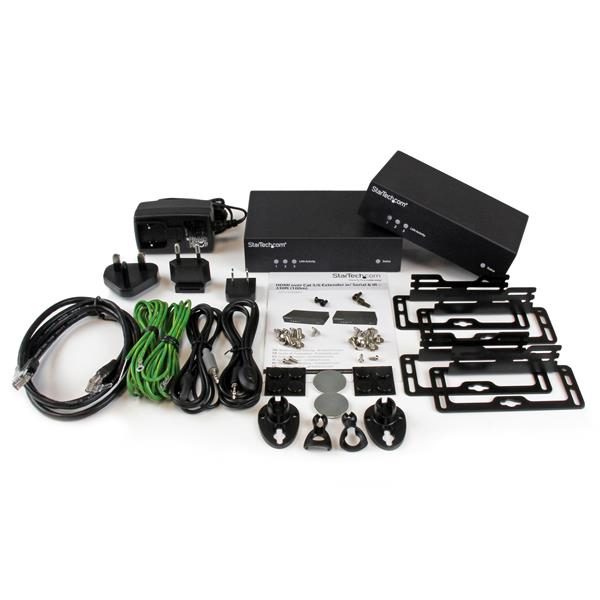

Packaging content

AC adapter includedYes
ManualYes
Grounding wireYes
IR blaster includedYes
IR receiver includedYes
Mounting brackets includedYes
Mounting kitYes

Technical details

Compliance certificatesRoHS
