StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.)

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.)

Model ST121HDBT20SEAN 065030877862

50 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight1.6 kg
  • ColourBlack
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
1.6 kg
Colour
Black
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
0 - 80%
Brand
StarTech.com
Category
AV Extender
Model
ST121HDBT20S
Part number
ST121HDBT20S
EAN / UPC
065030877862
Also known as
StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.)

Specifications

50 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Audio output channels7.1 channels
Daisy chainNo
LED indicatorsStatus
MaterialAluminium
Rubber feetYes
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Supported video modes720p, 1080p
Product colourBlack
CertificationCE, FCC, TAA, REACH

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
Remote (IR) input2
Remote (IR) output2
DC-in jackYes

Power

AC input voltage100 - 240 V
Operating voltage18 V
Input current0.6 A
Output current1 A
External power adapterYes
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Width76 mm
Depth293 mm
Height26 mm
Weight1.6 kg

Packaging data

Package width206 mm
Package depth280 mm
Package height62 mm
Package weight800 g

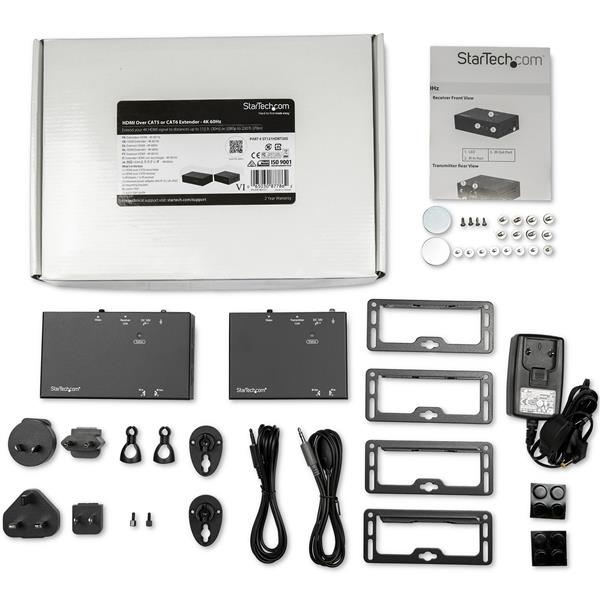

Packaging content

AC adapter includedYes
Included power plug typesANZ, EU, JP, NA, UK
Quick start guideYes
IR blaster includedYes
IR receiver includedYes
Mounting brackets includedYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case width323 mm
Master (outer) case length410 mm
Master (outer) case height275 mm
Products per master (outer) case6 pc(s)
