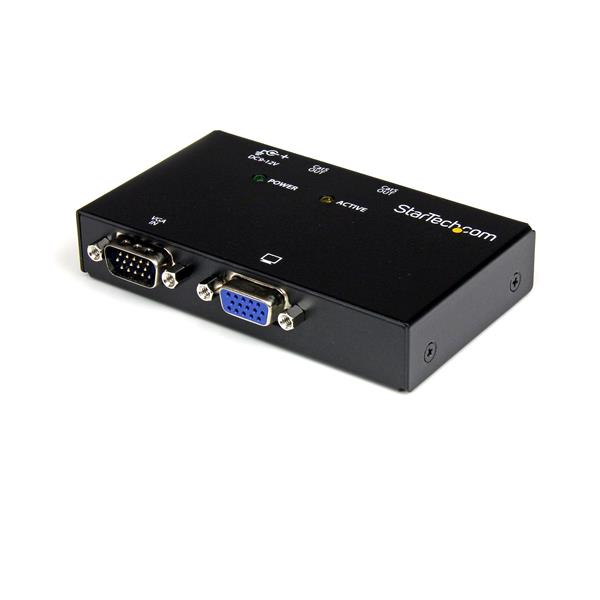

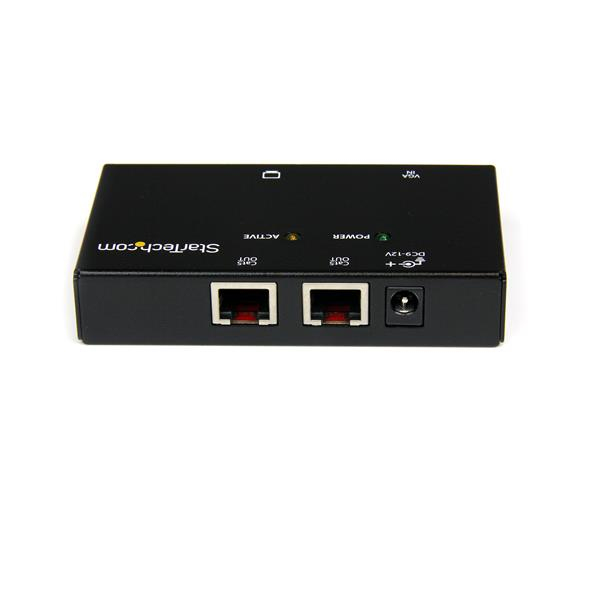

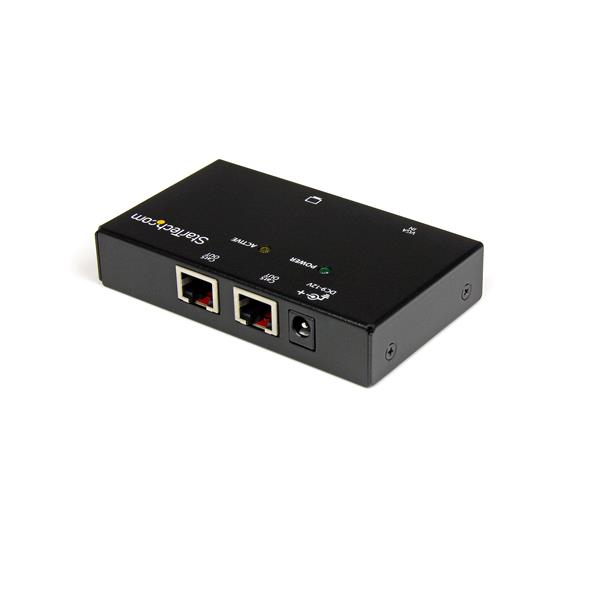

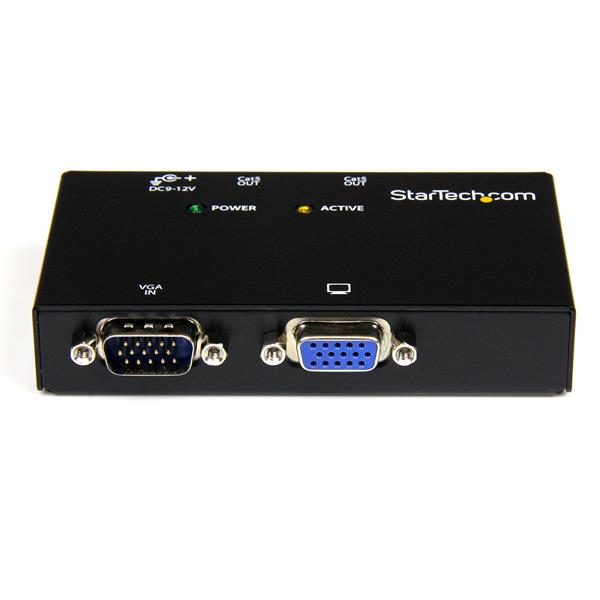

StarTech.com 2 Port VGA over Cat5 Video Extender – Transmitter

StarTech.com 2 Port VGA over Cat5 Video Extender – Transmitter

Model ST1212TEAN 5054629336908

36 specifications
  • ConnectivityWired
  • TypeAV transmitter
  • Weight195 g
  • ColourBlack
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)0 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter
Weight
195 g
Colour
Black
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
0 - 80%
Brand
StarTech.com
Category
AV Extender
Model
ST1212T
Part number
ST1212T
EAN / UPC
5054629336908, 065030844550, 132017821139, 151903608302 +2 more
Also known as
StarTech.com 2 Port VGA over Cat5 Video Extender – Transmitter

Specifications

36 specifications in 8 groups

Features

TypeAV transmitter
Maximum resolution1600 x 1200 pixels
Cable types supportedCat5, Cat6
Maximum transfer distance150 m
Daisy chainYes
LED indicatorsActivity, Power
Rubber feetYes
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA)
Product colourBlack
CertificationCE, FCC, TAA, REACH

Ports & interfaces

Connectivity technologyWired
RJ-45 output ports2
VGA (D-Sub) input ports1
VGA (D-Sub) output ports1
VGA (D-Sub) ports quantity2

Power

AC input voltage100 - 240 V
Operating voltage12 V
Input current0.8 A
Output current0.6 A
Power consumption (typical)7.2 W

Operational conditions

Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Width65 mm
Depth100 mm
Height20 mm
Weight195 g

Packaging data

Quantity per pack1 pc(s)
Package width219 mm
Package depth102 mm
Package height97 mm
Package weight522 g

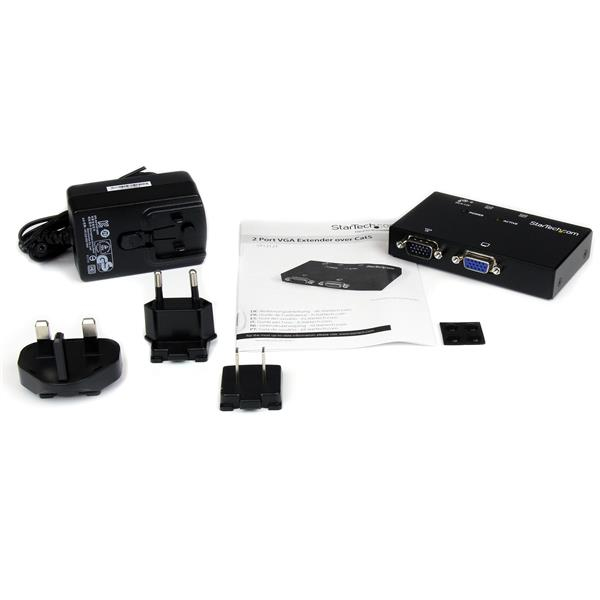

Packaging content

AC adapter includedYes
Included power plug typesEU, NA, UK
ManualYes

Technical details

Compliance certificatesRoHS
