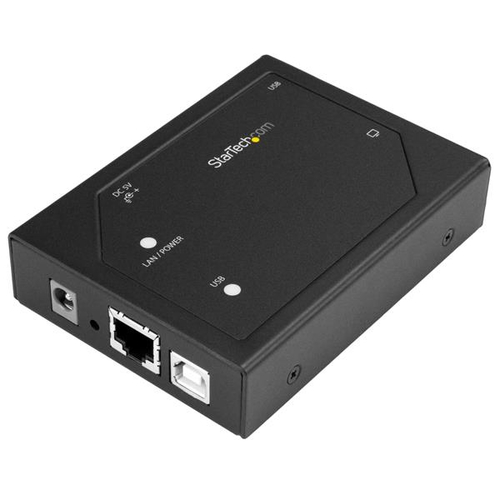

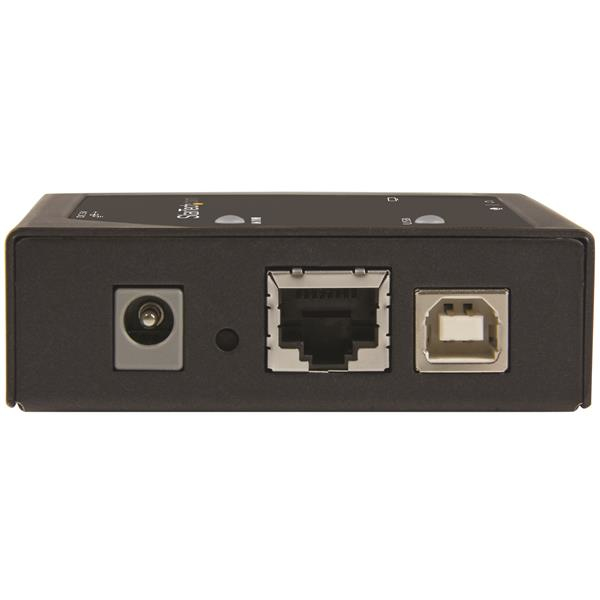

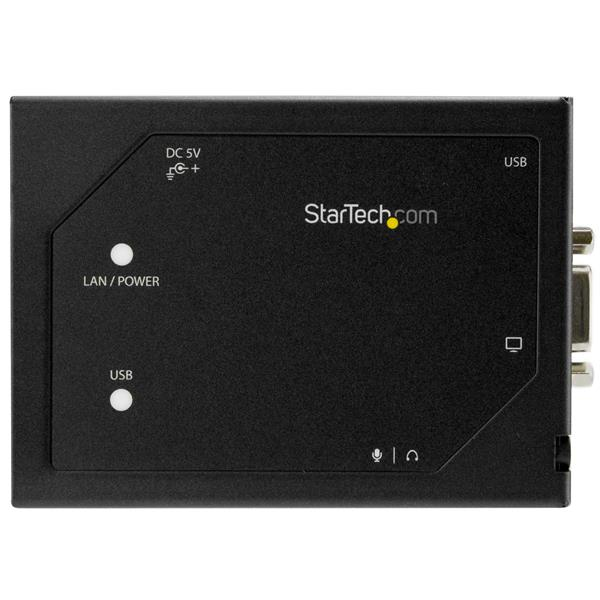

StarTech.com VGA-Over-IP Extender
1920 x 1200
Model IPUSB2VGA2EAN 065030864541
45 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight304 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 304 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- IPUSB2VGA2
- Part number
- IPUSB2VGA2
- EAN / UPC
- 065030864541
- Also known as
- StarTech.com VGA-Over-IP Extender - 1920 x 1200
Specifications
45 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Chipset | DisplayLink - DL-195 |
| Maximum transfer distance | 100 m |
| Audio system | stereo |
| Audio output channels | 2.0 channels |
| Daisy chain | No |
| Rubber feet | Yes |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Certification | CE, FCC, TAA |

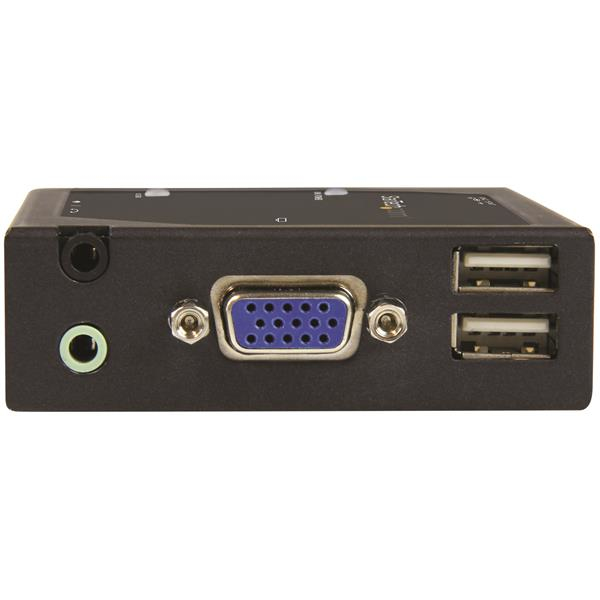

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| USB ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Operating voltage | 5 V |
| Input current | 0.6 A |
| Output current | 2 A |
| Power consumption (typical) | 10 W |
| External power adapter | Yes |
| Power plug type | Type N |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 101 mm |
| Height | 23 mm |
| Weight | 304 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 142 mm |
| Package depth | 167 mm |
| Package height | 68 mm |
| Package weight | 700 g |

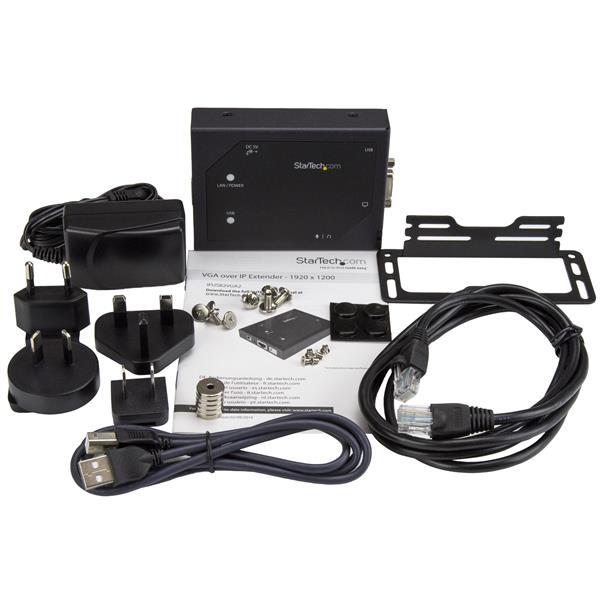

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), USB |
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Compare StarTech.com VGA-Over-IP Extender

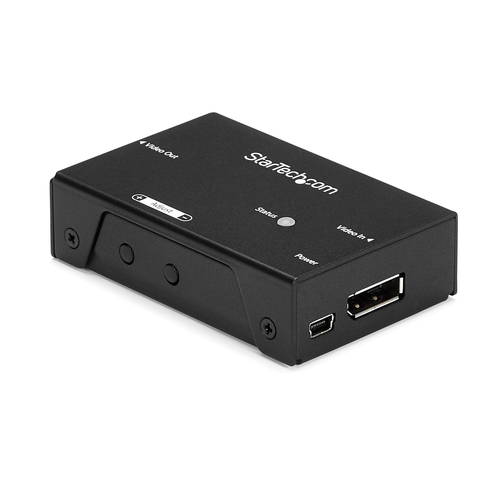

Compare any products- StarTech.com VGA-Over-IP Extender vsStarTech.com DisplayPort Signal Booster - DP Extender - 4KCompare specs

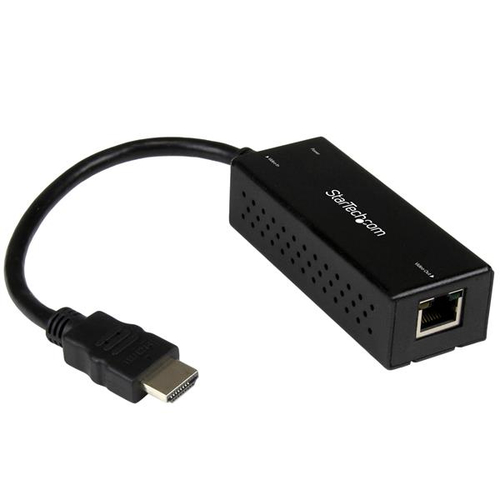

- StarTech.com VGA-Over-IP Extender vsStarTech.com Compact HDBaseT Transmitter - HDMI over CAT5e - USB Powered - Up to 4KCompare specs
- StarTech.com VGA-Over-IP Extender vsStarTech.com HDMI Over IP Extender - 1080pCompare specs

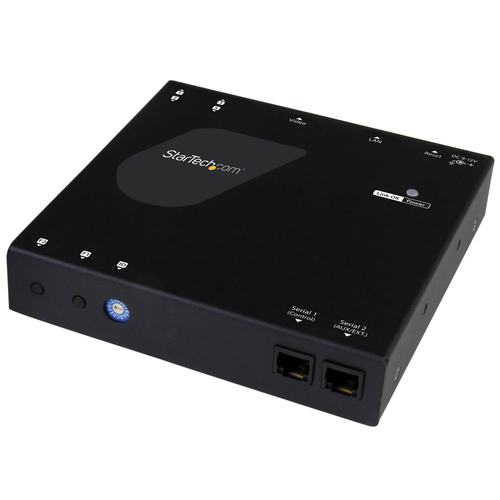

- StarTech.com VGA-Over-IP Extender vsStarTech.com HDMI Video and USB Over IP Receiver for ST12MHDLANU - 1080pCompare specs
- StarTech.com VGA-Over-IP Extender vsAG Neovo HVWCIP-T AV extender AV transmitter BlackCompare specs
- StarTech.com VGA-Over-IP Extender vsAG Neovo HVWCIP-R AV extender AV receiver BlackCompare specs
- StarTech.com VGA-Over-IP Extender vsATEN BlackCompare specs

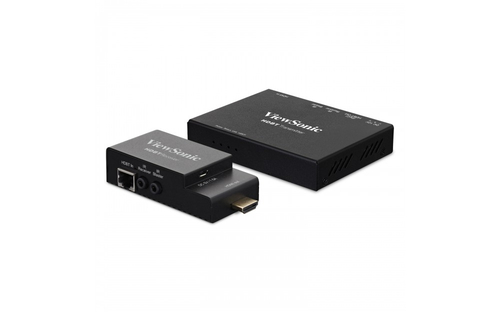

- StarTech.com VGA-Over-IP Extender vsViewsonic HB10B AV extender AV transmitter & receiver BlackCompare specs
