StarTech.com HDMI Over IP Extender - 1080p

StarTech.com HDMI Over IP Extender - 1080p

Model IPUSB2HD3EAN 065030864534

32 specifications

TypeAV transmitter
Weight304 g
RJ-45 input ports1
AC input voltage100-240 V
Dimensions (WxDxH)74 x 102 x 24 mm
Compliance certificatesRoHS

See all specifications

Overview

Type: AV transmitter
Weight: 304 g
RJ-45 input ports: 1
AC input voltage: 100-240 V
Dimensions (WxDxH): 74 x 102 x 24 mm
Compliance certificates: RoHS

Brand: StarTech.com
Category: AV Extender
Model: IPUSB2HD3
Part number: IPUSB2HD3
EAN / UPC: 065030864534
Also known as: StarTech.com HDMI Over IP Extender - 1080p

Specifications

32 specifications in 7 groups

Features

Specification	Value
Type	AV transmitter
Maximum resolution	1920 x 1080 pixels
Maximum transfer distance	100 m
Audio output channels	2.0 channels
Daisy chain	No
Material	Aluminium
Supported graphics resolutions	800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes	720p, 1080p
Certification	CE, FCC

Ports & interfaces

Specification	Value
RJ-45 input ports	1
Number of HDMI outputs	1
USB ports quantity	3
USB connector type	USB Type-A, USB Type-B
DC-in jack	Yes

Power

Specification	Value
AC input voltage	100-240 V
Operating voltage	5 V
Input current	0.6 A
Output current	2 A
External power adapter	Yes

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	74 x 102 x 24 mm
Weight	304 g

Packaging data

Specification	Value
Package dimensions (WxDxH)	146 x 169 x 63 mm
Package width	170 mm
Package depth	143 mm
Package height	66 mm
Package weight	702 g

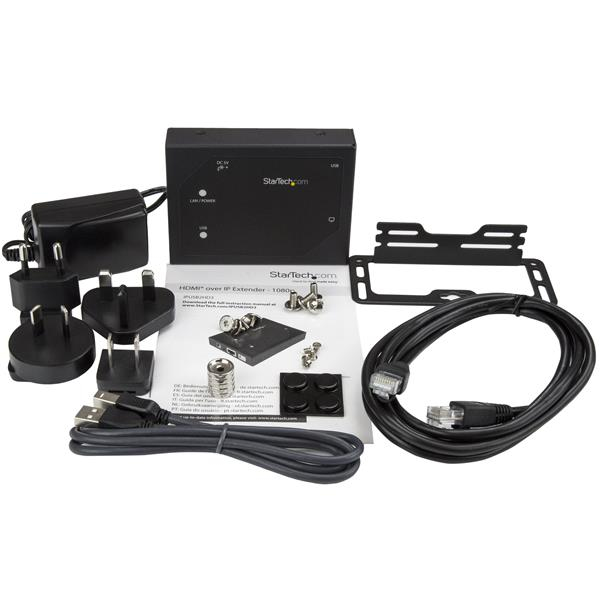

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	LAN (RJ-45), USB
Quick start guide	Yes
Mounting brackets included	Yes

Technical details

Specification	Value
Compliance certificates	RoHS
Audio support	Yes
