HDMI Signal Booster - HDMI Extender - 4K
60Hz - TAA
Model HDBOOST4KEAN 065030866422
34 specifications
- TypeAV repeater
- Weight150 g
- ColourBlack
- HDMI in1
- Operating relative humidity (H-H)20 - 80%
- Width46 mm
Overview
- Type
- AV repeater
- Weight
- 150 g
- Colour
- Black
- HDMI in
- 1
- Operating relative humidity (H-H)
- 20 - 80%
- Width
- 46 mm
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- HDBOOST4K
- Part number
- HDBOOST4K
- EAN / UPC
- 065030866422, 5704174870289
- Also known as
- StarTech.com HDMI Signal Booster - HDMI Extender - 4K 60Hz - TAA
Specifications
34 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 35 m |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| Daisy chain | No |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Power |
| Rack mounting | No |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080p, 2160p |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 46 mm |
| Depth | 56 mm |
| Height | 15 mm |
| Weight | 150 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 102 mm |
| Package depth | 159 mm |
| Package height | 48 mm |
| Package weight | 200 g |
Packaging content
| Specification | Value |
|---|---|

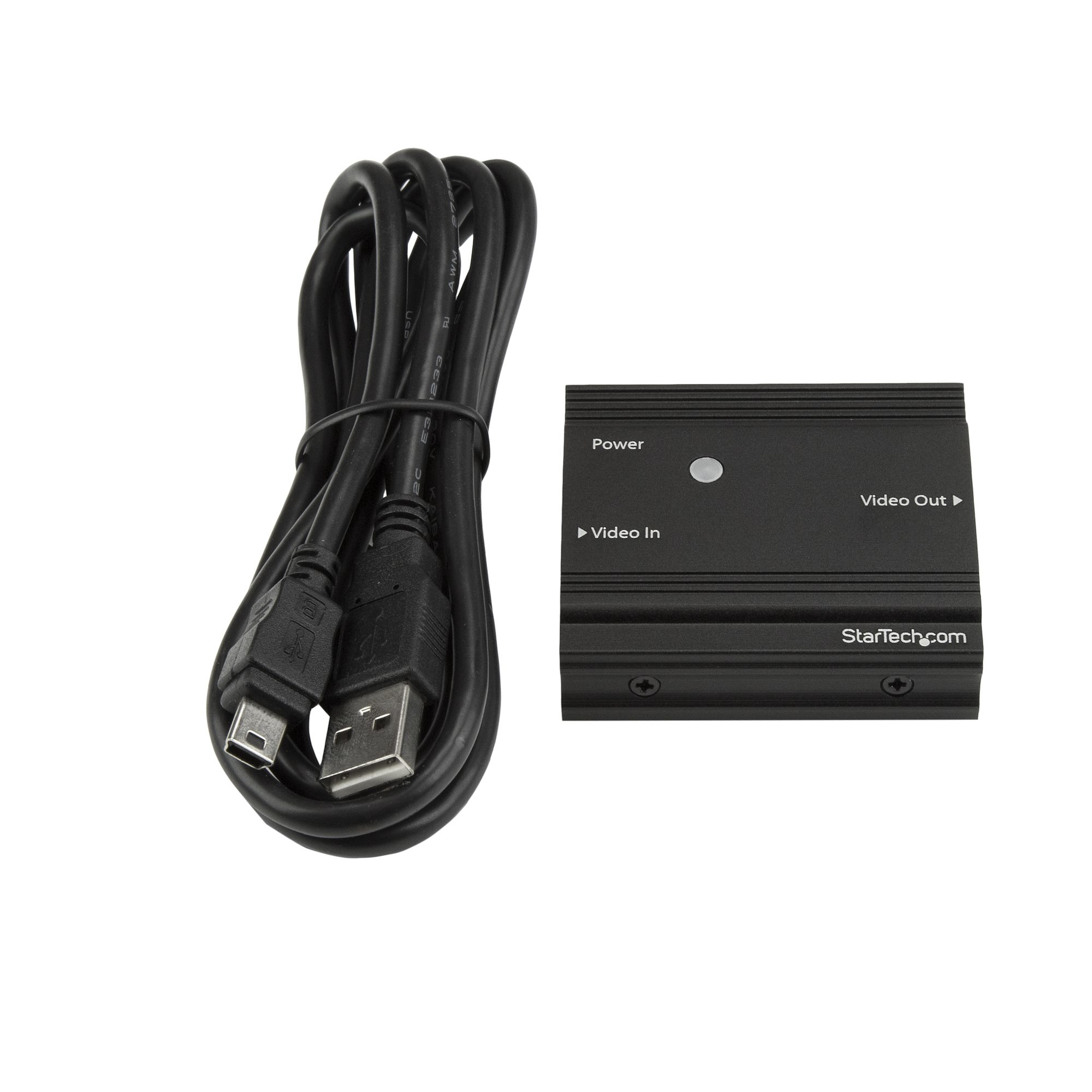

| Cables included | USB |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Audio support | Yes |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 176 mm |
| Master (outer) case length | 428 mm |
| Master (outer) case height | 180 mm |
| Products per master (outer) case | 12 pc(s) |
