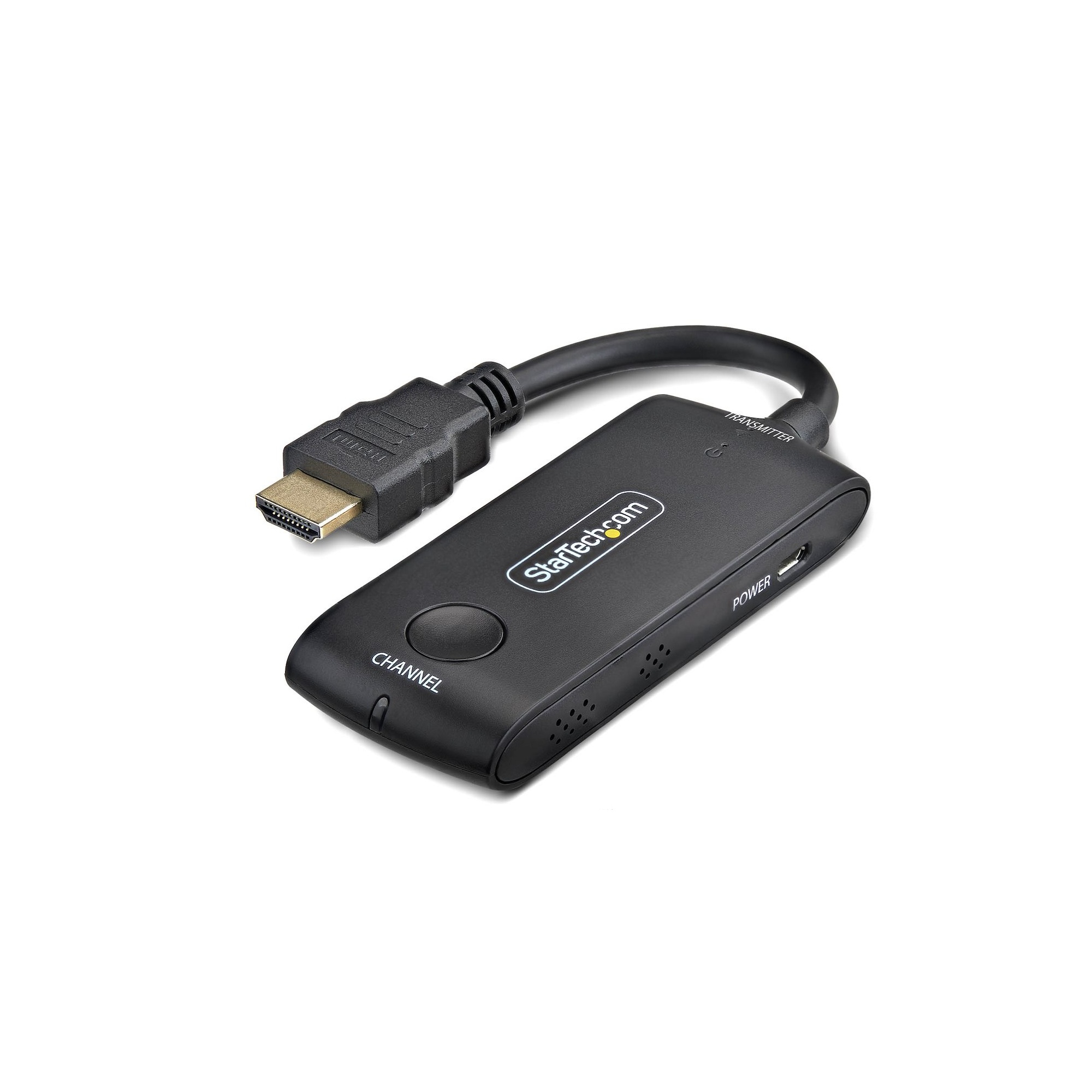

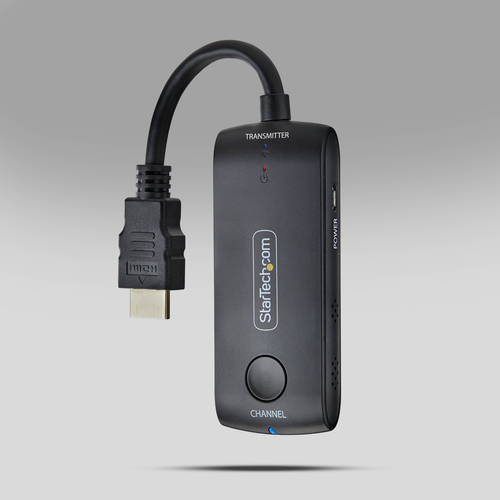

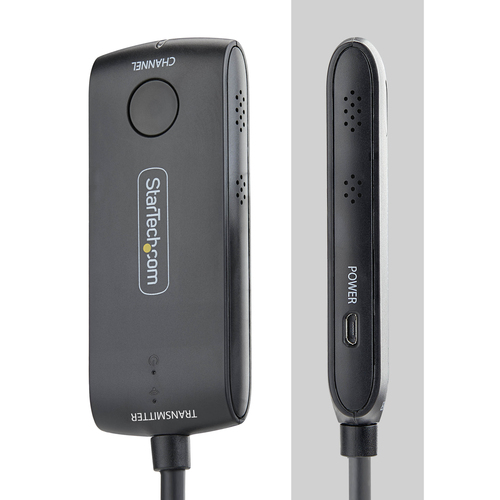

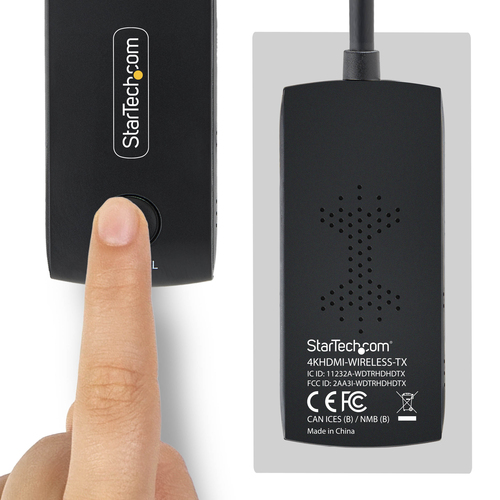

Replacement HDMI Transmitter for 4KHDMI-WIRELESS-65FT, 65ft Range, 4K
60Hz, USB Powered, Plug and Play
Model 4KHDMI-WIRELESS-TXEAN 065030915892
34 specifications
- ConnectivityWireless
- TypeAV transmitter
- Weight58 g
- ColourBlack
- Power source typeUSB
- Operating relative humidity (H-H)0 - 90%
Overview
- Connectivity
- Wireless
- Type
- AV transmitter
- Weight
- 58 g
- Colour
- Black
- Power source type
- USB
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- 4KHDMI-WIRELESS-TX
- Part number
- 4KHDMI-WIRELESS-TX
- EAN / UPC
- 065030915892
- Also known as
- StarTech.com Replacement HDMI Transmitter for 4KHDMI-WIRELESS-65FT, 65ft Range, 4K 60Hz, USB Powered, Plug and Play
Specifications
34 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Chipset | VCT6601 |
| Maximum transfer distance | 20 m |
| Cable length | 0.12 m |
| Daisy chain | No |
| LED indicators | Power, Signal |
| Material | Acrylonitrile butadiene styrene (ABS) |
| Rack mounting | No |
| Product colour | Black |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Video in | HDMI |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (transmitter) (max) | 4.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 230 mm |
| Height | 15 mm |
| Weight | 58 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 199 mm |
| Package depth | 149 mm |
| Package height | 80 mm |
| Package weight | 340 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE |
| Frequency | 5000 MHz |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 425 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 30 pc(s) |
Similar products
All av extenders
Vivolink
VLHDMIEXTFIB AV extender AV transmitter & receiver Black
Model VLHDMIEXTFIB
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 180 g
ATEN

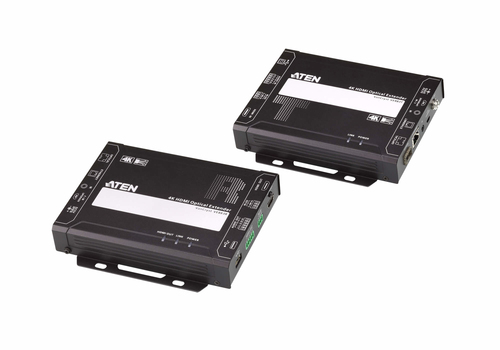

4K HDMI Optical Extender (W/10KM SFP
Model VE883K2-AT-G
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 1.68 kg
Vivolink
VLHDMIEXTHDB2.0S AV extender AV transmitter & receiver Black
Model VLHDMIEXTHDB2.0S
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 500 g
StarTech.com
4K HDMI over Fiber Extender Kit, 4K
Model ST121HD20FXA2
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 280 g
StarTech.com
4K HDMI Extender Over CAT5/CAT6 Cable, 4K
Model 4K70IC-EXTEND-HDMI
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 210 g
ATEN

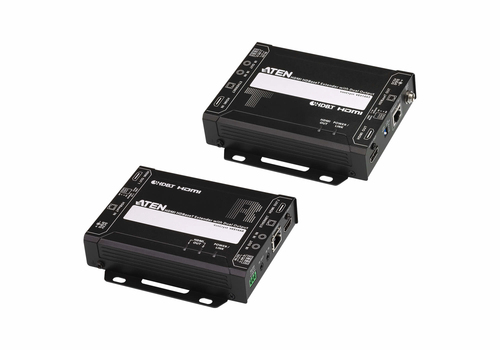

HDMI HDBaseT Extender with Dual output
Model VE814A-AT-G
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 1.14 kg
ATEN
True 4K HDMI over IP Transmitter with PoE
Model VE8962T-AT-U
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 730 g
Vivolink
VLHDMIEXT422 AV extender AV transmitter & receiver Black
Model VLHDMIEXT422
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 480 g
ATEN

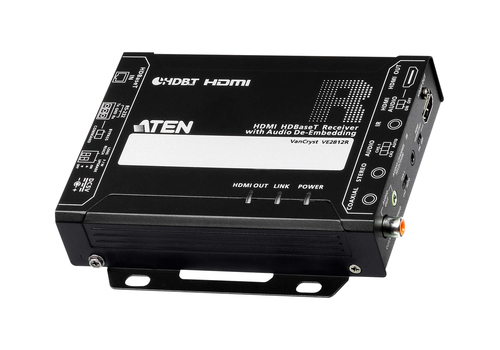

HDMI HDBaseT Receiver W/Audio De-embeddi
Model VE2812R-AT-G
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 720 g
ATEN
True 4K HDMI over IP Transmitter with PoE
Model VE8962T
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 730 g
ATEN

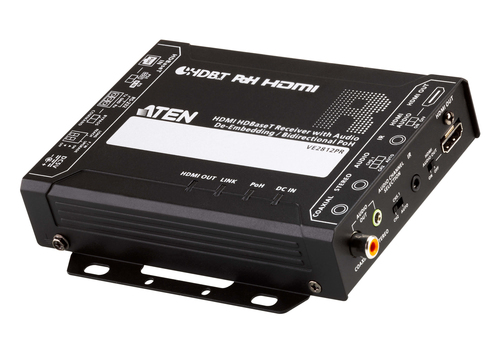

HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD)
Model VE2812PR
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 500 g
ATEN

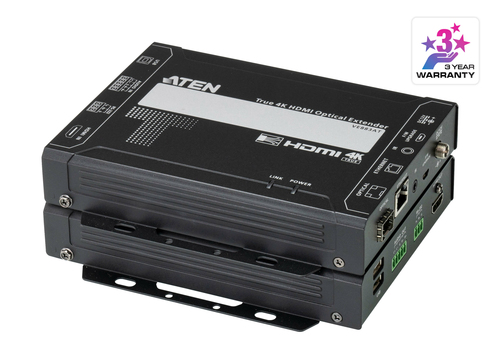

True 4K HDMI Optical Extender (4K@300m (K1, MM) / 10km (K2, SM))
