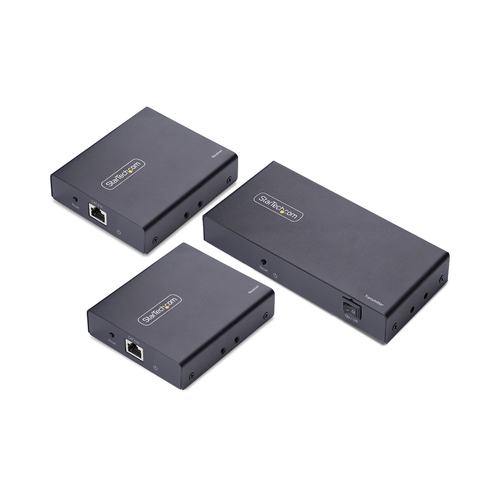

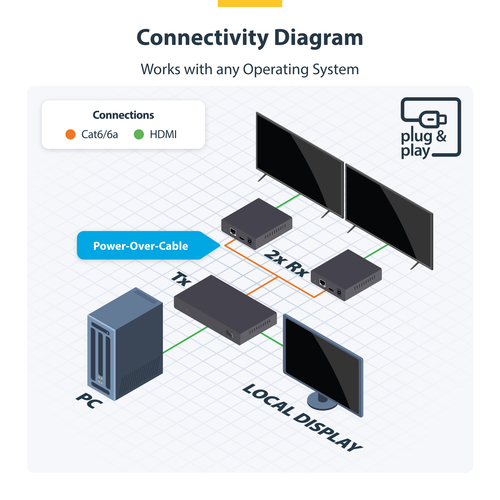

StarTech.com 2-Port HDMI Extender and Splitter Over CAT6, 4K
StarTech.com

2-Port HDMI Extender and Splitter Over CAT6, 4K

60Hz, Up to 230ft (70m), 1x2 HDMI over Ethernet Distribution Kit with IR and Power Over Cable

Model 4K7012IC-EXTEND-HDMIEAN 065030916158

47 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight261 g
  • ColourBlack
  • AC input voltage100 - 240 V
  • Operating relative humidity (H-H)5 - 90%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
261 g
Colour
Black
AC input voltage
100 - 240 V
Operating relative humidity (H-H)
5 - 90%
Brand
StarTech.com
Category
AV Extender
Model
4K7012IC-EXTEND-HDMI
Part number
4K7012IC-EXTEND-HDMI
EAN / UPC
065030916158
Also known as
StarTech.com 2-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up to 230ft (70m), 1x2 HDMI over Ethernet Distribution Kit with IR and Power Over Cable

Specifications

47 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6, Cat6a
ChipsetGSV5100
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Audio output channels2.0 channels
Daisy chainNo
LED indicatorsYes
Rack mountingNo
Product colourBlack

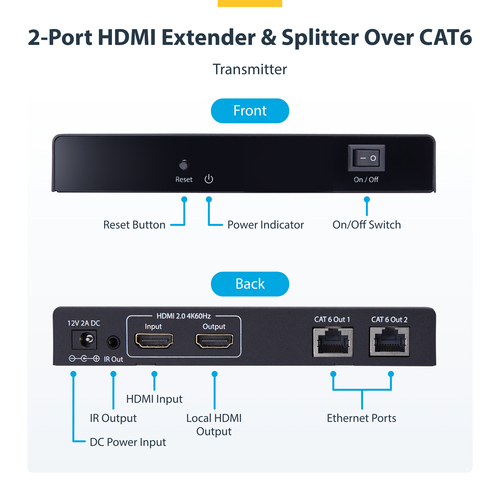

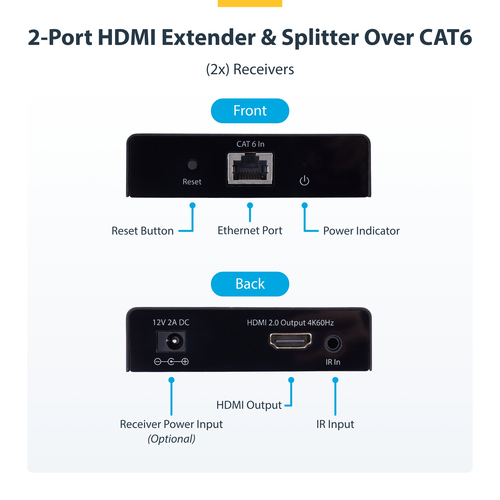

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports2
RJ-45 output ports2
HDMI in1
Number of HDMI outputs3
Remote (IR) input2
Remote (IR) output1
DC-in jackYes

Power

AC input voltage100 - 240 V
Operating voltage12 V
Input current0.8 A
Output current2 A
Power consumption (typical)24 W
Power plug typeType M

Operational conditions

Operating relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C

Weight & dimensions

Width70 mm
Depth154 mm
Height23 mm
Weight261 g

Packaging data

Package width292 mm
Package depth238 mm
Package height55 mm
Package weight1.1 kg

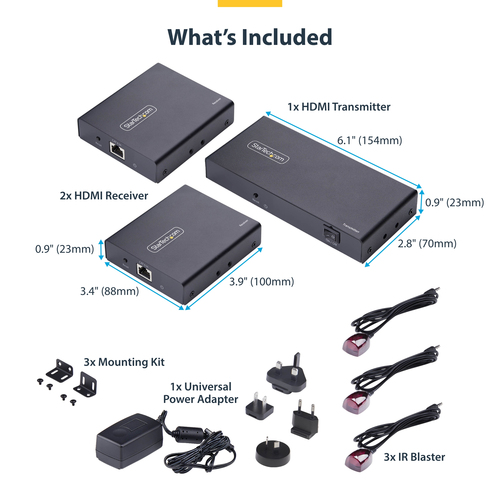

Packaging content

AC adapter includedYes
Included power plug typesANZ, EU, NA, UK
Quick start guideYes
IR blaster includedYes
IR receiver includedYes
Mounting kitYes
Packaging content1 - HDMI Transmitter 2 - HDMI Receiver

Logistics data

Master (outer) case width500 mm
Master (outer) case length300 mm
Master (outer) case height330 mm
Products per master (outer) case10 pc(s)
