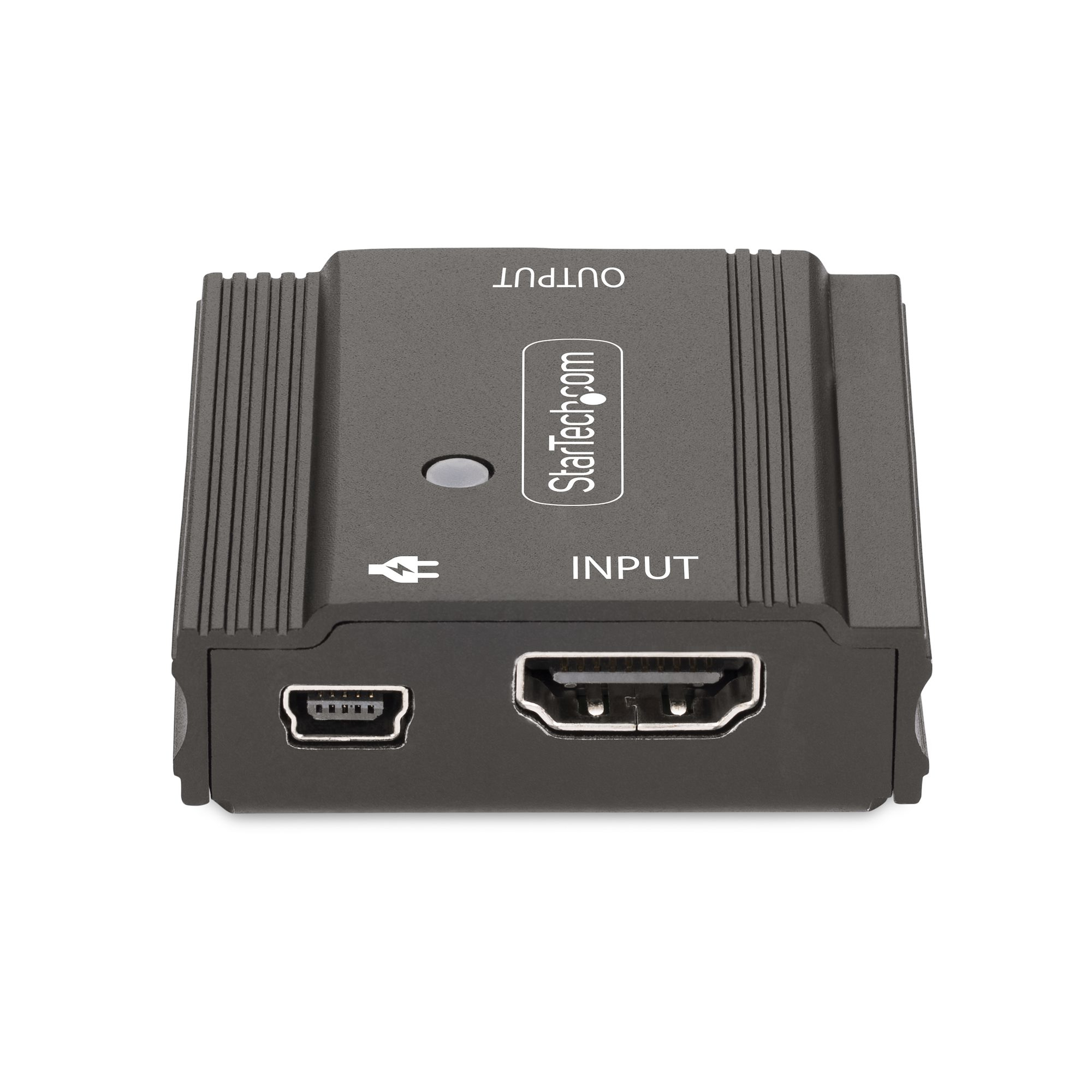

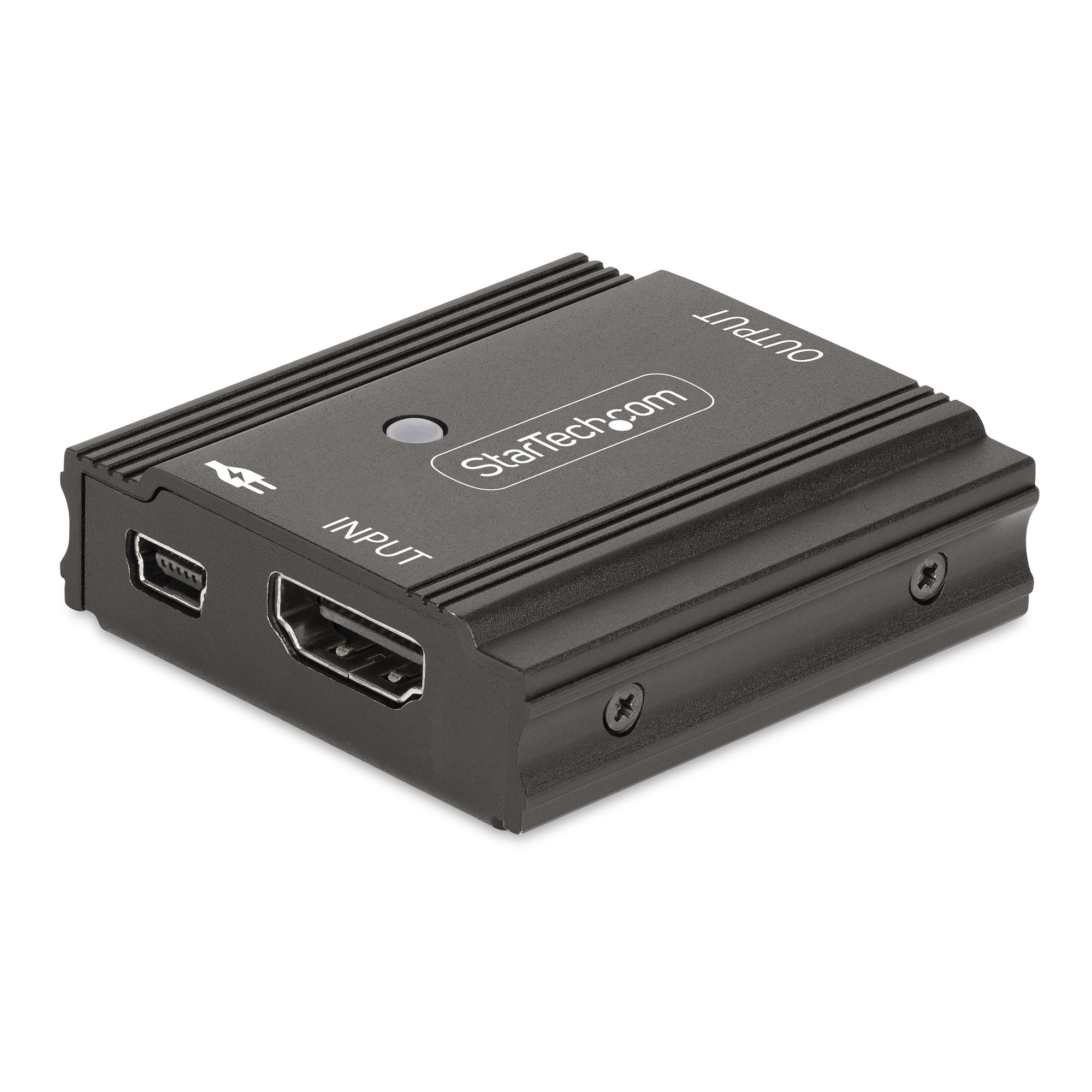

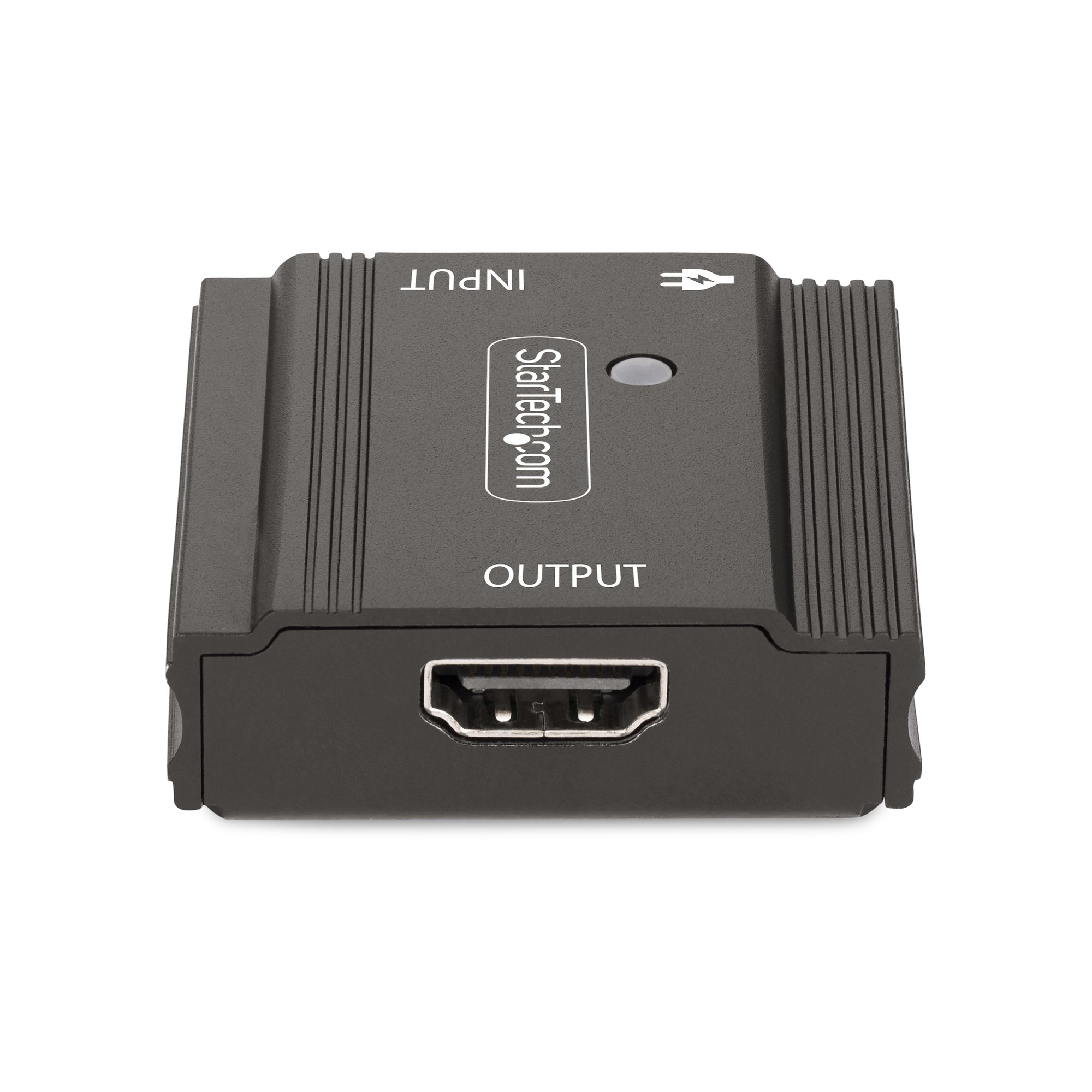

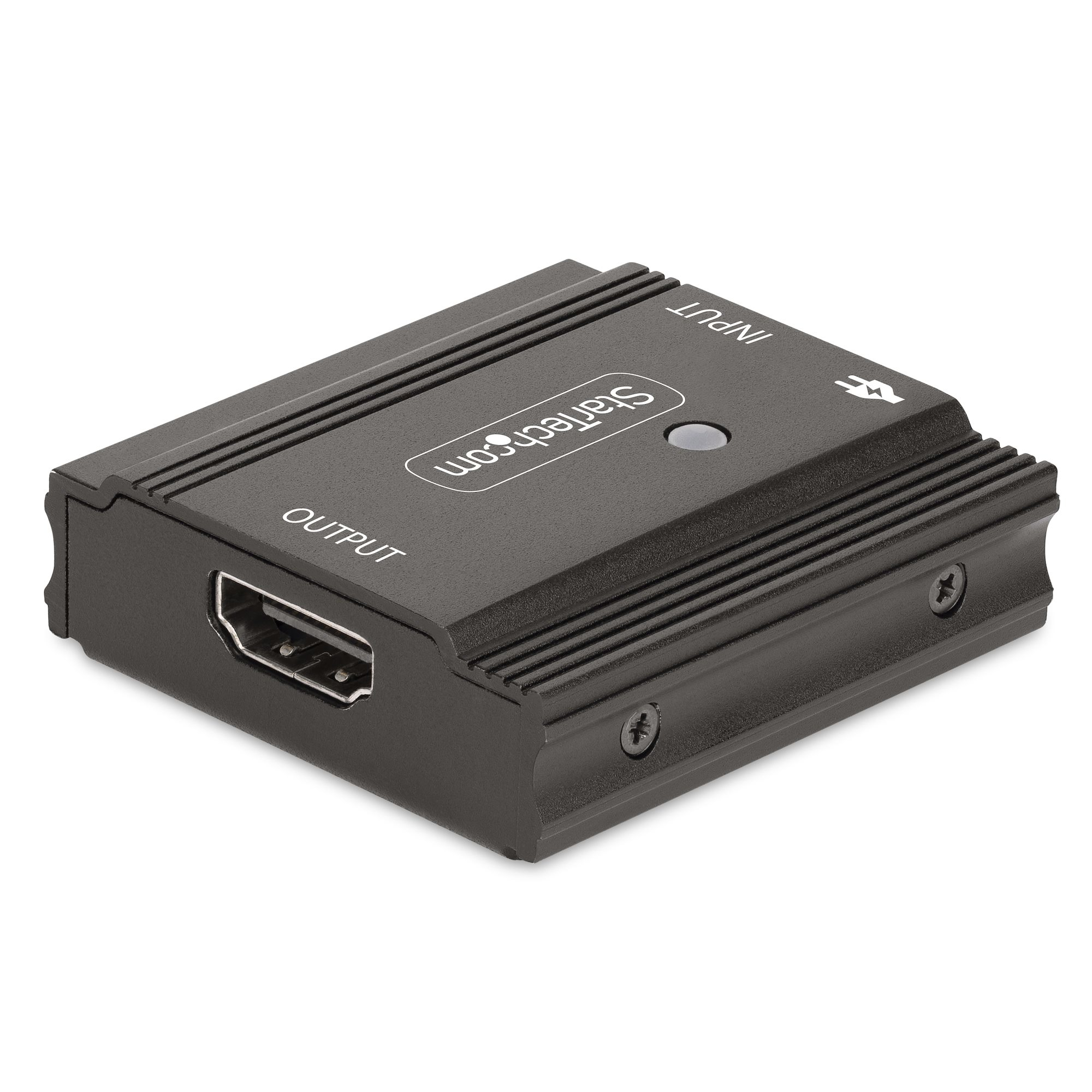

33ft (10m) 8K
60Hz HDMI Signal Booster, Active HDMI 2.1 Inline Repeater and Video Signal Amplifier up to 8K 60Hz/4K 144Hz, Compact HDMI Cable Exten
Model 33FT-8K-HDMI-BOOSTEREAN 065030900423
41 specifications
- ConnectivityWired
- TypeAV repeater
- Weight57 g
- ColourBlack
- Power source typeUSB
- Operating relative humidity (H-H)0 - 80%
Overview
- Connectivity
- Wired
- Type
- AV repeater
- Weight
- 57 g
- Colour
- Black
- Power source type
- USB
- Operating relative humidity (H-H)
- 0 - 80%
- Brand
- StarTech.com
- Category
- AV Extender
- Model
- 33FT-8K-HDMI-BOOSTER
- Part number
- 33FT-8K-HDMI-BOOSTER
- EAN / UPC
- 065030900423
- Also known as
- StarTech.com 33ft (10m) 8K 60Hz HDMI Signal Booster, Active HDMI 2.1 Inline Repeater and Video Signal Amplifier up to 8K 60Hz/4K 144Hz, Compact HDMI Cable Exten
Specifications
41 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV repeater |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum transfer distance | 10 m |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Maximum refresh rate | 144 Hz |
| Audio output channels | 7.1 channels |
| Bandwidth | 48 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Daisy chain | No |
| HDCP | Yes |
| HDCP version | 1.4/2.2/2.3 |
| LED indicators | Power |
| Plug and Play | Yes |
| Rack mounting | No |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1080, 3440 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| HDMI version | 2.1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 1 |
| USB connector type | Mini-USB |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 46 mm |
| Depth | 49 mm |
| Height | 16 mm |
| Weight | 57 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 157 mm |
| Package height | 48 mm |
| Package weight | 60 g |
Packaging content
| Specification | Value |
|---|---|

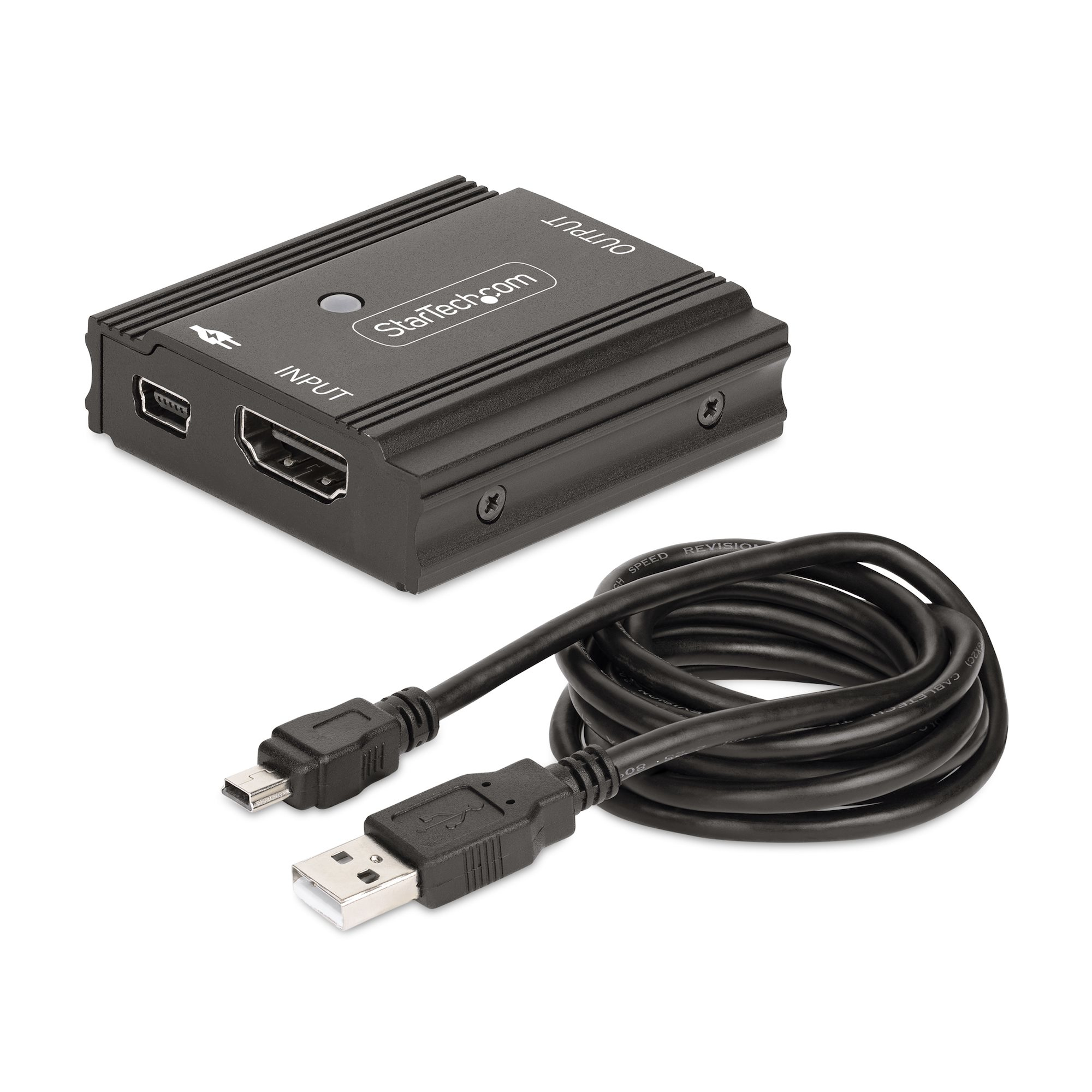

| Cables included | Mini-USB |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 425 mm |
| Master (outer) case length | 170 mm |
| Master (outer) case height | 175 mm |
| Products per master (outer) case | 12 pc(s) |
