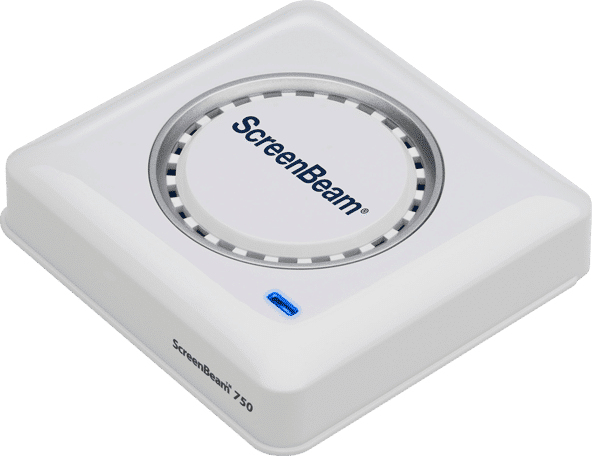

ScreenBeam 750 SBWD100B750AJP
ScreenBeam

750 SBWD100B750AJP

Model 750 SBWD100B750AJPPart no. 0948-0110-540EAN 789286820624

47 specifications
  • ConnectivityWireless
  • TypeAV receiver
  • Weight68 g
  • ColourWhite
  • Power source typeDC
  • Operating relative humidity (H-H)10 - 85%
See all specifications

Overview

Connectivity
Wireless
Type
AV receiver
Weight
68 g
Colour
White
Power source type
DC
Operating relative humidity (H-H)
10 - 85%
Brand
ScreenBeam
Category
AV Extender
Model
750 SBWD100B750AJP
Part number
0948-0110-540
EAN / UPC
789286820624
Also known as
ScreenBeam Wireless Video/Audio Extender

Specifications

47 specifications in 9 groups

Features

TypeAV receiver
Maximum resolution1920 x 1080 pixels
Audio formats supportedLPCM
Frame rate30 fps
HDCPYes
LED indicatorsYes
Networking standardsIEEE 802.11ac
Security algorithmsWPA2-AES, WPS
Supported video modes480i, 480p, 576i, 576p, 1080p
Video compression formatsH.264
Product colourWhite
Windows operating systems supportedWindows 10, Windows 7, Windows 8

Ports & interfaces

Connectivity technologyWireless
Wi-FiYes
Number of HDMI outputs1
USB ports quantity1
USB version2.0
USB connector typeUSB Type-A
DC-in jackYes

Power

Power source typeDC
Operating voltage5 V
Input current2 A
Power consumption (typical)5 W

Operational conditions

Operating relative humidity (H-H)10 - 85%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)0 - 70 °C

Weight & dimensions

Width76 mm
Depth76 mm
Height18 mm
Weight68 g

Packaging data

Quantity per pack1 pc(s)
Package width211 mm
Package depth147 mm
Package height66 mm
Package weight431 g

Packaging content

AC adapter includedYes
Cables includedHDMI
Quick start guideYes
Packaging content•ScreenBeam 750 •Power Adapter •USB to Ethernet Dongle •SBT200DI CMS Dongle •HDMI Cable •HDMI to VGA Adapter •Quick Start Guide

Technical details

Compliance certificatesC-TICK, Industry Canada (IC), RoHS, State Radio Regulation of China (SRRC), UL, WEEE
Country of originChina

Logistics data

Master (outer) case width320 mm
Master (outer) case length673 mm
Master (outer) case height241 mm
Master (outer) case net weight9.53 kg
Products per master (outer) case20 pc(s)
