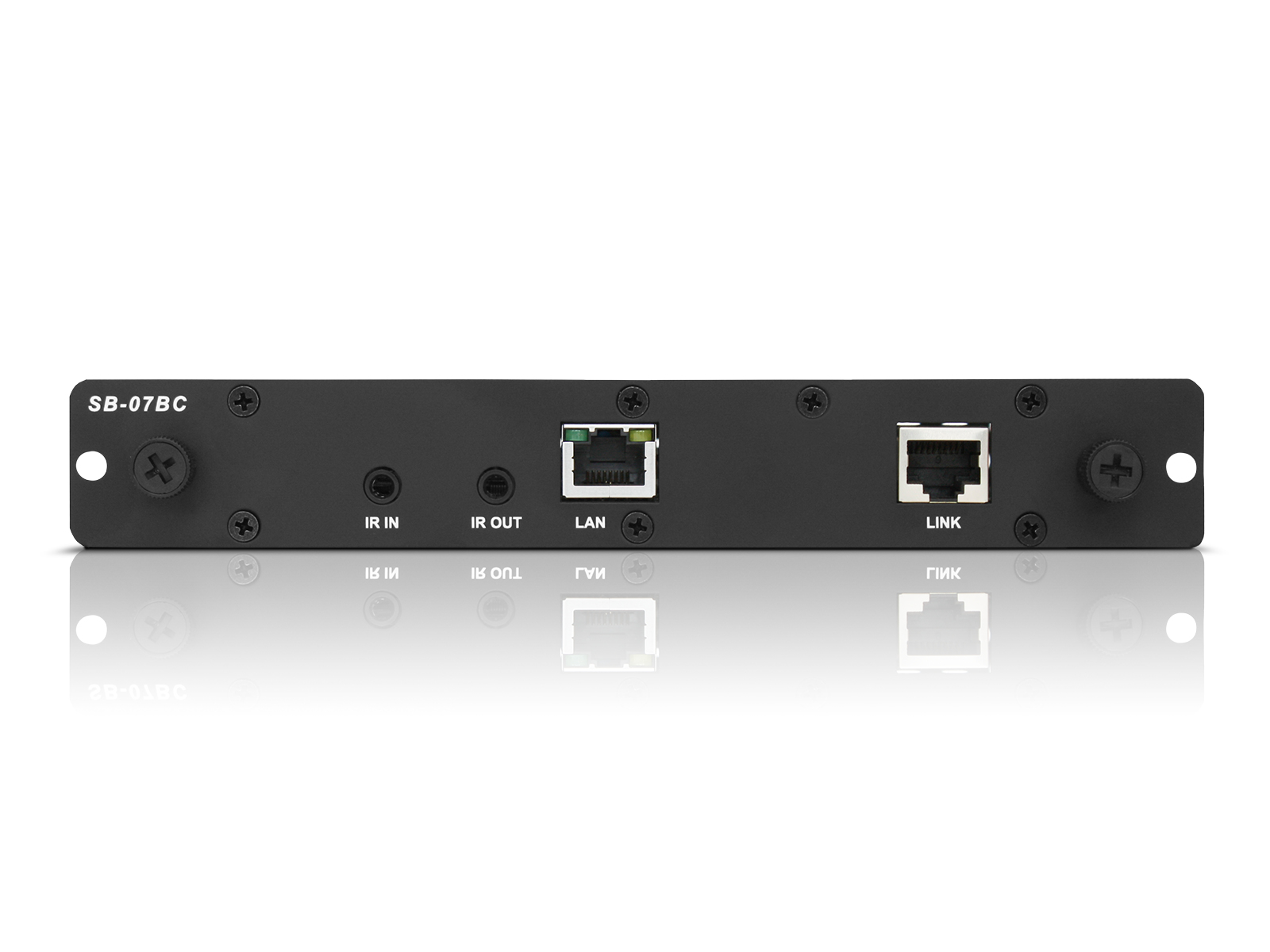

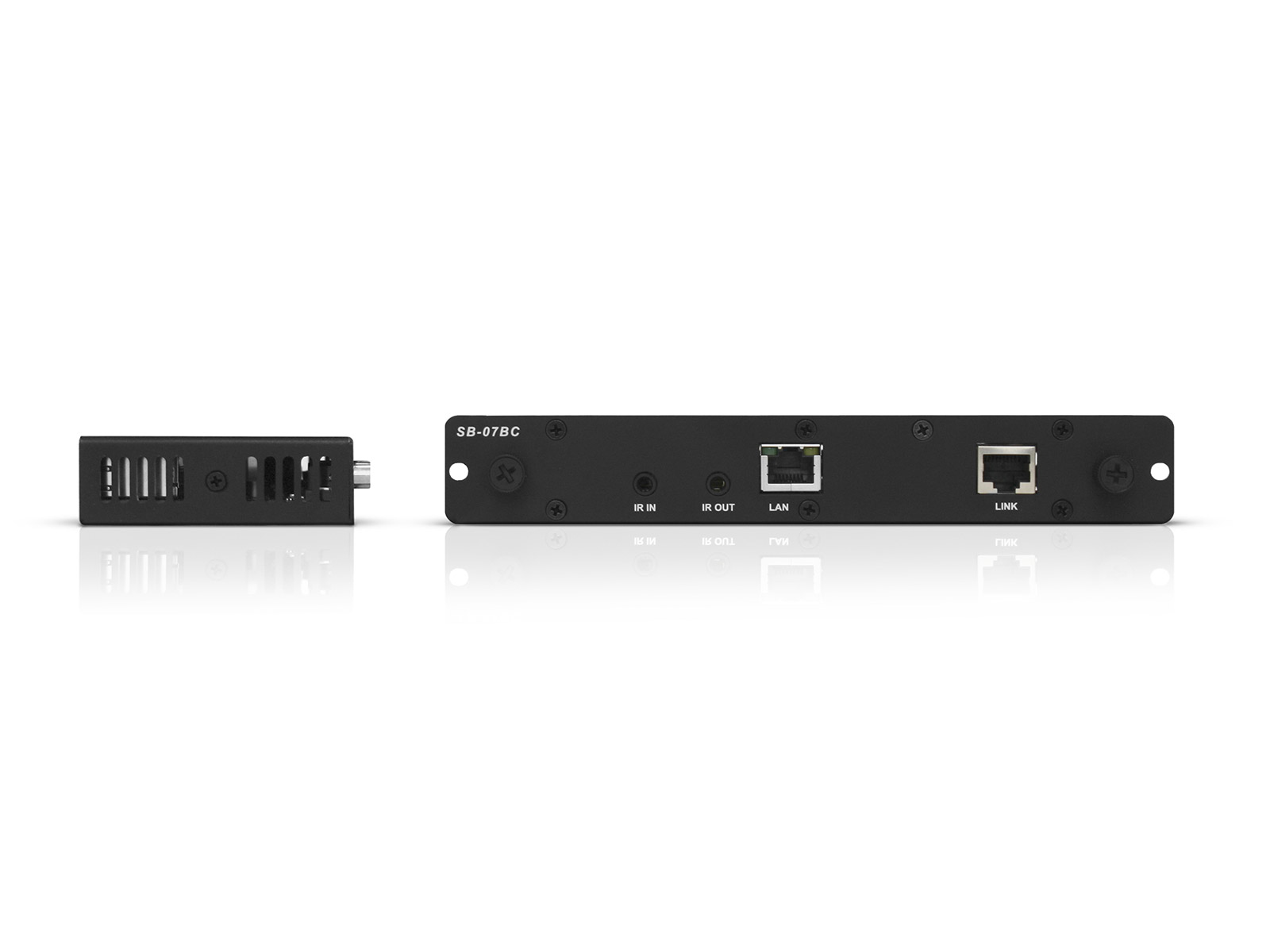

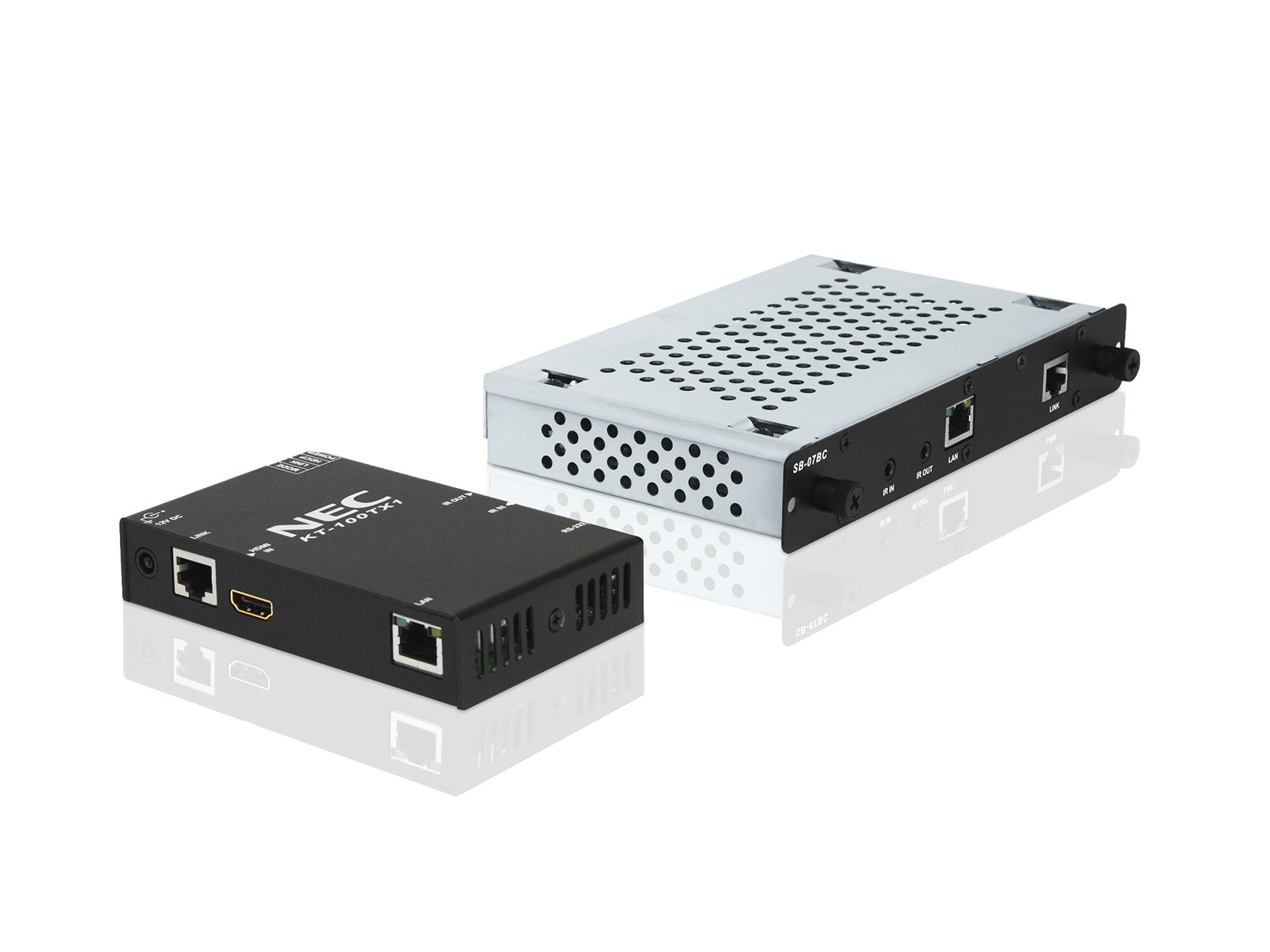

SB-07BC AV receiver
Model SB-07BCPart no. 100013612EAN 805736053654
30 specifications
- ConnectivityWired
- TypeAV receiver
- Operating voltage16 V
- Operating relative humidity (H-H)20 - 80%
- Receiver dimensions (WxDxH)200 x 120 x 30 mm
- Compliance certificatesRoHS
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Operating voltage
- 16 V
- Operating relative humidity (H-H)
- 20 - 80%
- Receiver dimensions (WxDxH)
- 200 x 120 x 30 mm
- Compliance certificates
- RoHS
- Brand
- NEC
- Category
- AV Extender
- Model
- SB-07BC
- Part number
- 100013612
- EAN / UPC
- 805736053654, 5028695110847, 8057360536542
- Also known as
- NEC SB-07BC AV receiver
Specifications
30 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5, Cat6 |
| Maximum transfer distance | 100 m |
| Audio formats supported | PCM |
| Bandwidth | 10.2 Gbit/s |
| Colour depth | 8 bit |
| HDCP | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Certification | CE, VCCI, RCM, FCC |

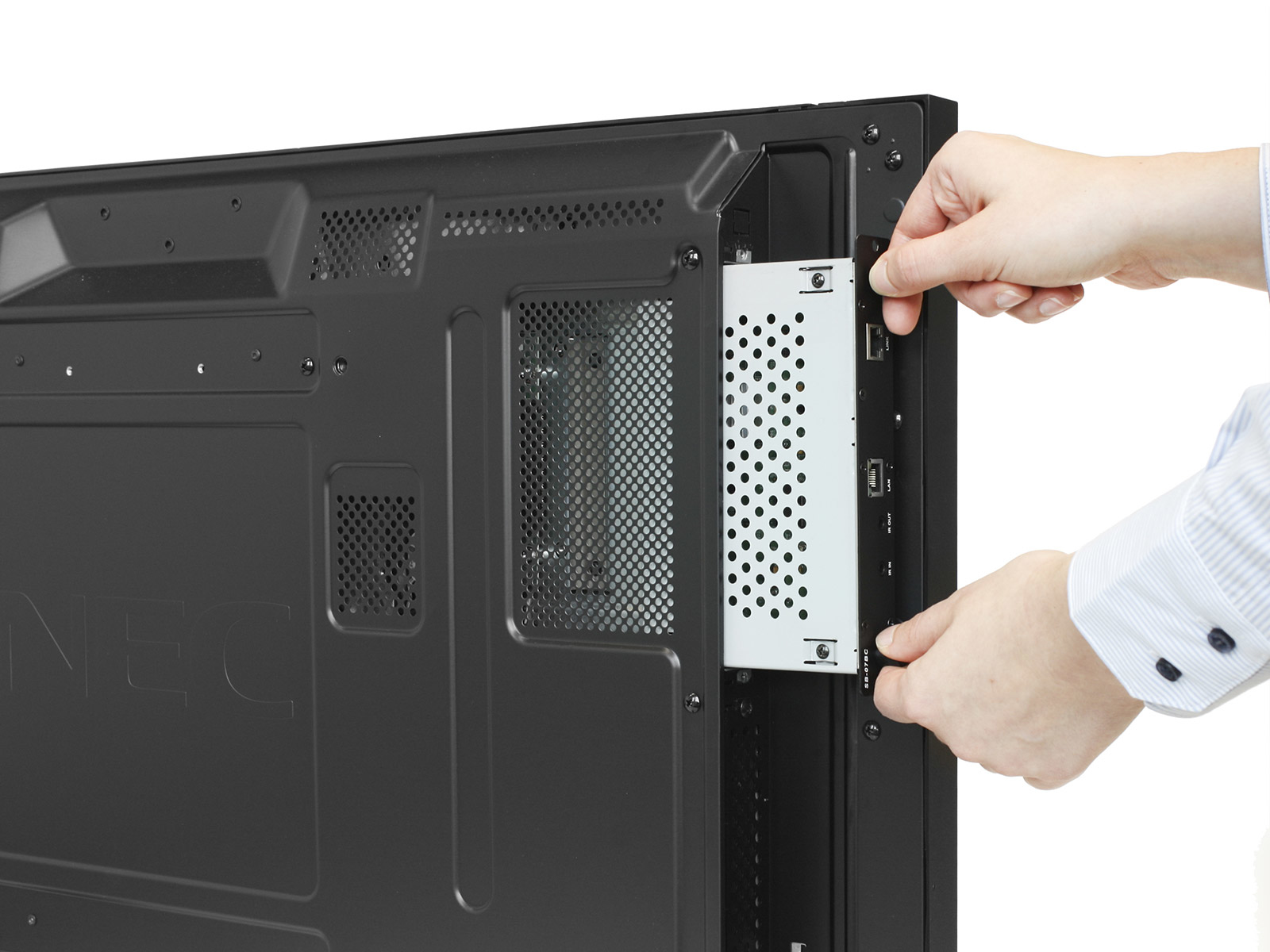

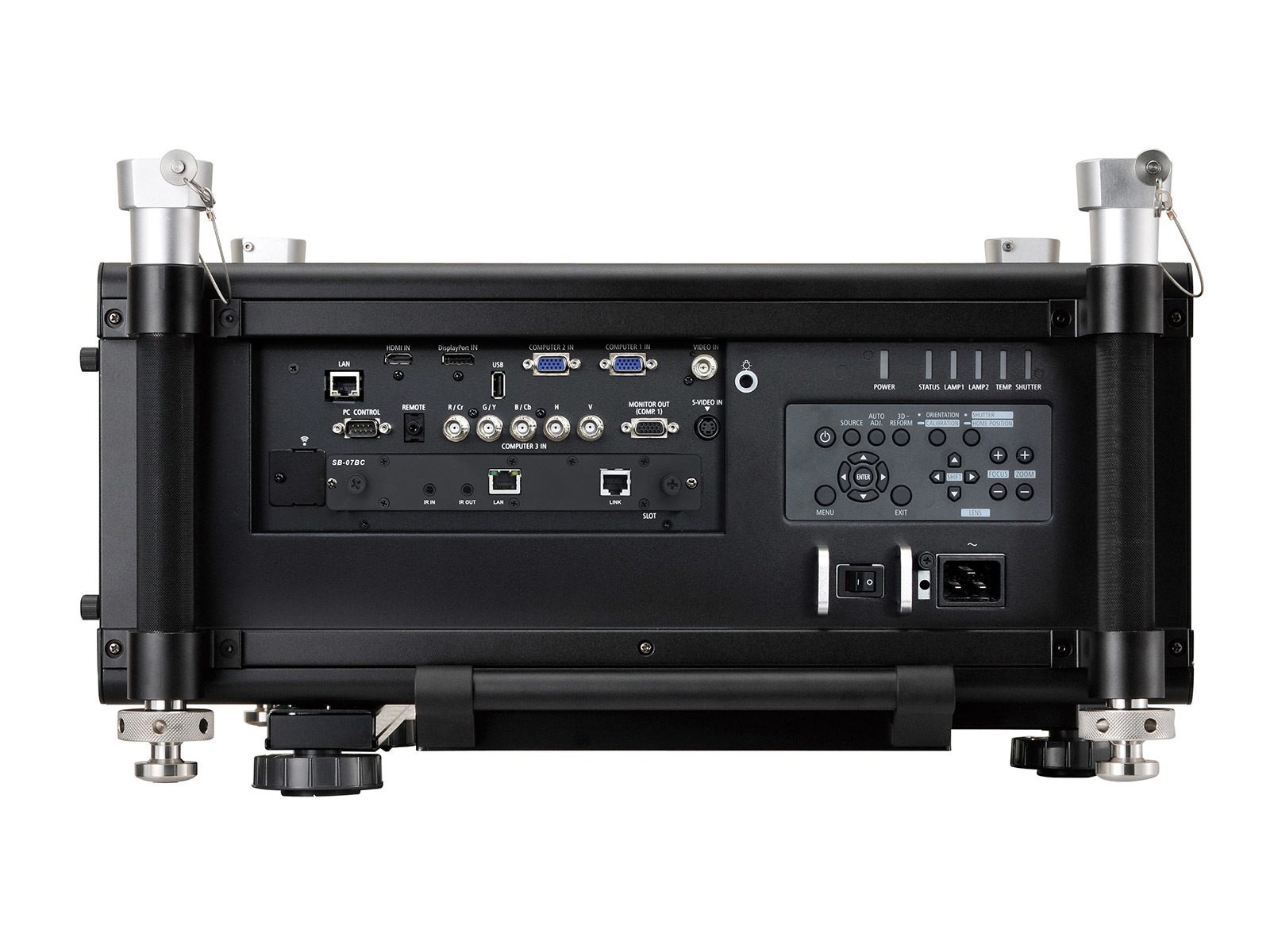

| Compatible products | NEC OPS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 16 V |
| Power consumption (max) | 5 W |
| Current | 0.33 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 200 x 120 x 30 mm |
| Receiver weight | 600 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 280 x 200 x 70 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
