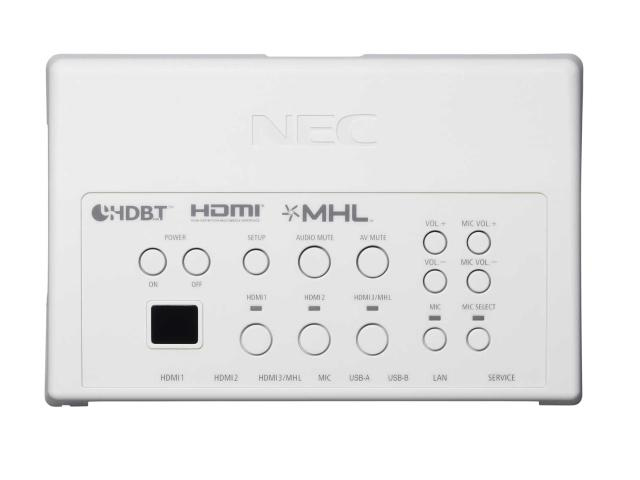

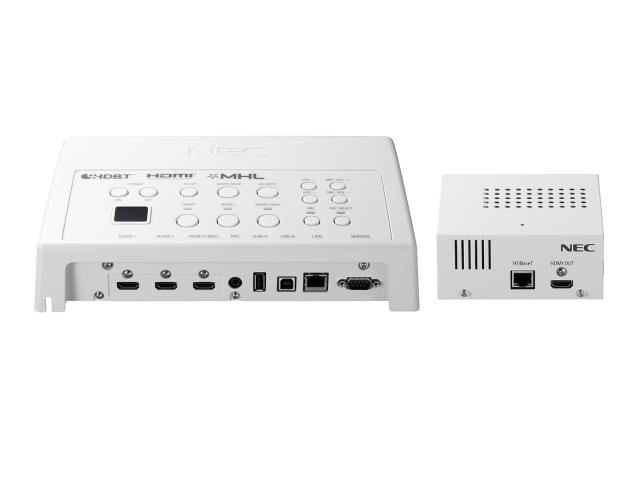

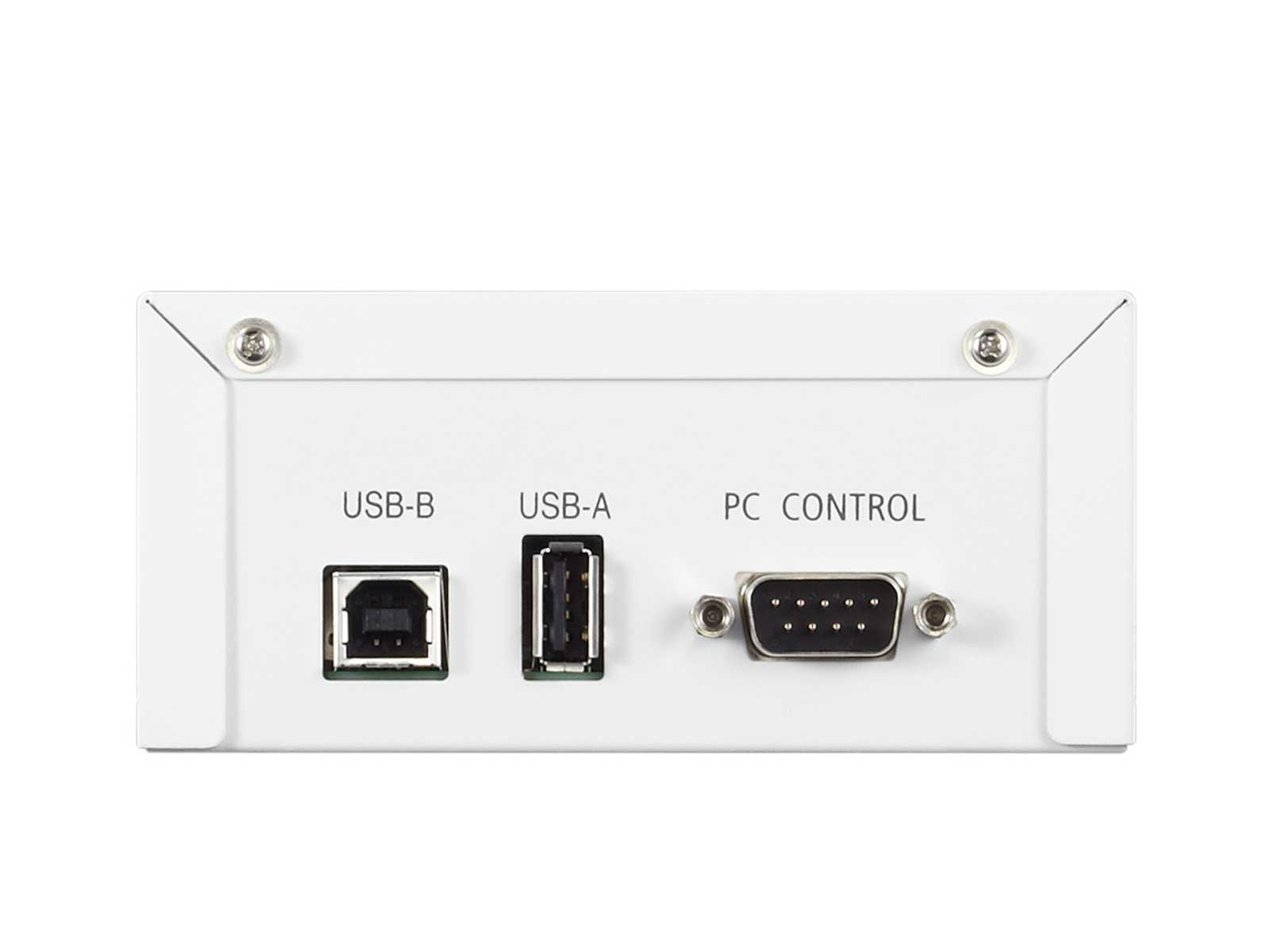

NEC NP01SW2 AV transmitter & receiver White

NEC NP01SW2 AV transmitter & receiver White

Model NP01SW2Part no. 100014160EAN 5028695612389

40 specifications
  • TypeAV transmitter & receiver
  • Weight500 g
  • ColourWhite
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating relative humidity (H-H)20 - 80%
See all specifications

Overview

Type
AV transmitter & receiver
Weight
500 g
Colour
White
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating relative humidity (H-H)
20 - 80%
Brand
NEC
Category
AV Extender
Model
NP01SW2
Part number
100014160
EAN / UPC
5028695612389
Also known as
NEC NP01SW2 AV transmitter & receiver White

Specifications

40 specifications in 8 groups

Features

TypeAV transmitter & receiver
Cable types supportedCat5e, Cat6
Maximum transfer distance30 m
Colour depth12 bit
HDCPYes
LED indicatorsYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Product colourWhite
HDBaseT certifiedYes
CertificationCE, FCC, EAC, SASO

Ports & interfaces

Ethernet LANYes
RJ-45 input ports2
RJ-45 output ports1
HDBaseT portYes
HDMI in3
Number of HDMI outputs1
USB ports quantity4
USB version2.0
USB connector typeUSB Type-A, USB Type-B
RS-232 input ports1
RS-232 output ports1
Remote (IR) input1

Power

AC input voltage100-240 V
AC input frequency50 - 60 Hz
Input current1.4 A
Power consumption (typical)21 W

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)5 - 40 °C
Storage relative humidity (H-H)20 - 80%
Storage temperature (T-T)10 - 50 °C

Weight & dimensions

Weight500 g
Receiver dimensions (WxDxH)126 x 52 x 119 mm
Transmitter dimensions (WxDxH)285 x 64 x 187 mm

Packaging data

Package dimensions (WxDxH)354 x 175 x 333 mm

Packaging content

AC adapter includedYes
Cables includedHDMI, RS-232
ManualYes
Mounting kitYes

Technical details

Compliance certificatesRoHS
